Understanding EMC Anechoic Chambers: A Deep Dive into the LISUN SDR-2000B Magnetic Shielding Cabinet for EMI Testing

Introduction to EMC Anechoic Chambers
Electromagnetic Compatibility (EMC) testing is an essential process in evaluating and ensuring that electronic devices do not cause electromagnetic interference (EMI) to other devices while also being resilient to external EMI. A critical aspect of this testing is the use of an anechoic chamber, a controlled environment where external electromagnetic fields are minimized, allowing for accurate measurements and analysis. An EMC anechoic chamber, specifically designed for EMI testing, helps create an ideal setup where devices can be tested for their emission and immunity to electromagnetic disturbances without external interference.

Among the various tools used in EMC testing, one of the most advanced is the LISUN SDR-2000B Magnetic Shielding Cabinet for EMI Testing. This product is designed to provide a highly effective magnetic shielding solution, ensuring that electronic devices are tested in an environment free from external electromagnetic disturbances. In this article, we will explore the functionality, features, and advantages of the LISUN SDR-2000B, while also highlighting the critical role of EMC anechoic chambers in the field of EMI testing.

What is an EMC Anechoic Chamber?
An EMC anechoic chamber is a specially designed facility that isolates electronic devices from external electromagnetic interference. It is equipped with absorptive materials to reduce reflections of electromagnetic waves and ensure that the devices under test (DUT) experience minimal external interference during testing. Anechoic chambers are typically lined with conductive and absorptive materials, such as carbon-loaded foam or ferrite tiles, which absorb electromagnetic waves and prevent them from reflecting back into the test environment.

These chambers serve several important purposes:

• Isolation from External Interference: By providing a shielded environment, the chamber ensures that no external EMI can affect the testing process.
• Accurate Measurement of Emissions: It allows the precise measurement of the electromagnetic emissions from the DUT, which is crucial in determining compliance with regulatory standards.
• Simulating Real-World Conditions: The anechoic chamber can simulate the operational environment of the DUT, allowing for better prediction of how it will perform in the real world.

The Role of the LISUN SDR-2000B in EMC Testing

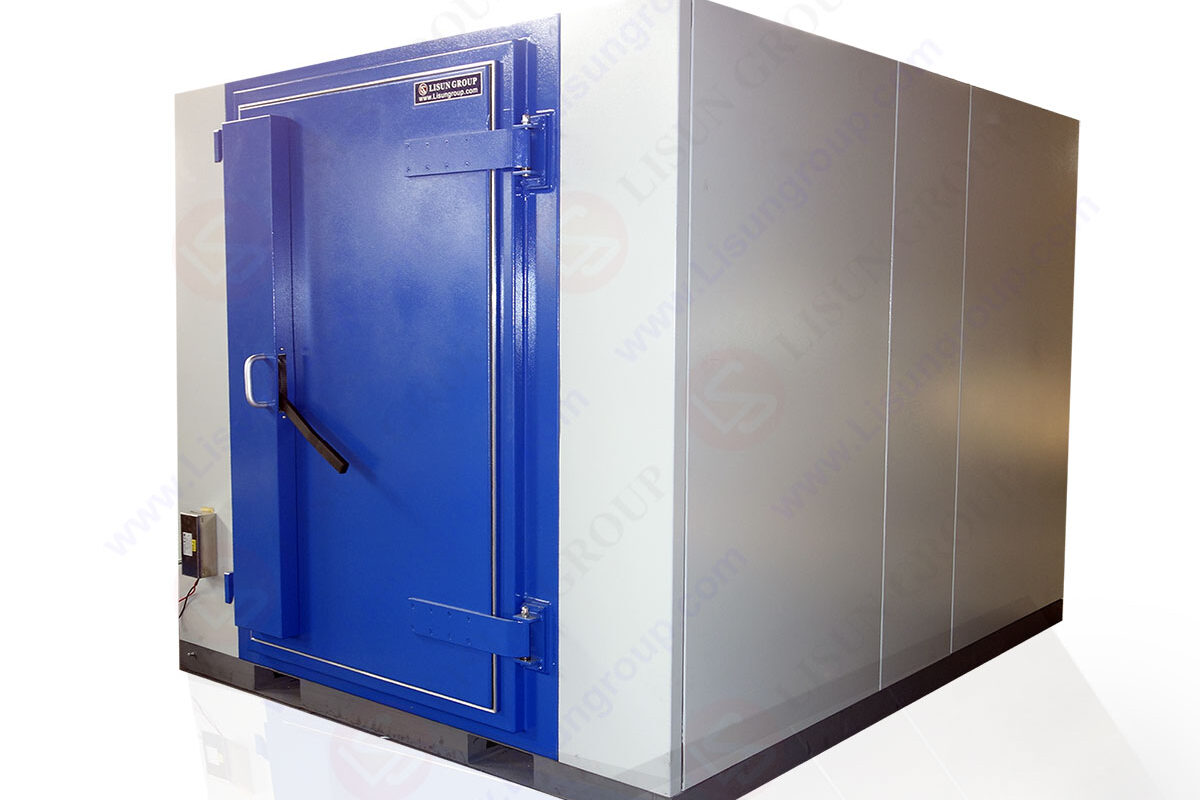

The LISUN SDR-2000B Magnetic Shielding Cabinet is designed to provide a controlled environment where electromagnetic interference can be contained. The cabinet is primarily used for testing the electromagnetic shielding performance of electronic devices and components. It ensures that devices are protected from external electromagnetic fields, providing a shielded environment that mimics the conditions of an anechoic chamber.

Features of the LISUN SDR-2000B
• High-Performance Magnetic Shielding: The SDR-2000B offers superior shielding effectiveness, blocking external magnetic fields from influencing the device under test. This is particularly important when testing sensitive electronic components.
• Broad Frequency Range: The product covers a wide frequency range, which is essential for testing devices that operate at various frequencies.
• Compact Design: The magnetic shielding cabinet is compact and can be easily integrated into existing testing setups. Its modular design ensures versatility and adaptability to different testing requirements.
• Ease of Use: With user-friendly interfaces and intuitive controls, the LISUN SDR-2000B allows easy operation for EMC engineers and technicians.
• Compliance with International Standards: The cabinet complies with various international EMI/EMC standards, ensuring that the tests conducted within meet global regulatory requirements.

How the LISUN SDR-2000B Enhances EMI Testing
The LISUN SDR-2000B magnetic shielding cabinet offers several advantages over traditional testing methods. By combining the shielding capabilities of the cabinet with the controlled environment of an EMC anechoic chamber, it ensures that testing is accurate, repeatable, and meets the highest industry standards.

Some key benefits include:

• Minimized EMI Impact: By offering superior shielding, the SDR-2000B ensures that the device under test is not influenced by external electromagnetic fields, providing a more accurate assessment of the DUT’s performance.
• Versatility: The SDR-2000B can be used for a wide range of EMI tests, including testing for radiated and conducted emissions, immunity tests, and more.
• Efficiency: The shielding cabinet significantly reduces the setup time for testing, allowing for faster assessments of device performance.

Table of Specifications: LISUN SDR-2000B Magnetic Shielding Cabinet
Below is a detailed table showcasing the key specifications and features of the LISUN SDR-2000B magnetic shielding cabinet for EMI testing:

Feature	Description
Shielding Effectiveness	>80dB (10Hz – 1GHz)
Shielding Material	High-quality magnetic shielding material
Frequency Range	10 Hz to 1 GHz
Internal Dimensions	600mm (W) x 600mm (D) x 600mm (H)
External Dimensions	800mm (W) x 800mm (D) x 800mm (H)
Door Type	Electromagnetic shielded door with gasket
Cabinet Weight	80 kg
Temperature Range	-10°C to 50°C
Power Supply	AC 220V ± 10%
Test Standard Compliance	IEC/EN 61000-4-3, IEC/EN 61000-4-6, CISPR 22
Cooling Method	Passive ventilation

Testing with the LISUN SDR-2000B Magnetic Shielding Cabinet
The testing process in an EMC anechoic chamber using the LISUN SDR-2000B magnetic shielding cabinet typically follows a structured procedure. The key steps include:

• Preparation: The device under test (DUT) is placed inside the shielding cabinet, ensuring proper connections and alignment.
• Calibration: The testing equipment is calibrated to account for any potential discrepancies in the setup, ensuring that accurate measurements can be taken.
• Testing: The DUT is powered on, and various tests are conducted, such as radiated and conducted emission measurements. The shielding cabinet blocks any external EMI, allowing for precise readings.
• Analysis: After testing, the results are analyzed to determine the device’s compliance with EMC regulations and standards. Any issues or potential improvements are documented.

Advantages of Combining an EMC Anechoic Chamber and LISUN SDR-2000B
While both EMC anechoic chambers and magnetic shielding cabinets like the LISUN SDR-2000B are valuable tools for EMI testing, combining them provides an even more effective solution. The anechoic chamber ensures that external electromagnetic fields are minimized, while the magnetic shielding cabinet offers additional protection from low-frequency magnetic fields.

This combination of shielding and isolation allows for:

• Better Accuracy: The DUT is shielded from all external electromagnetic influences, ensuring that the measurements reflect the true performance of the device.
• Comprehensive Testing: Engineers can conduct a full range of tests, from high-frequency radiation to low-frequency magnetic susceptibility, with greater confidence in the results.
• Improved Efficiency: By integrating both systems, testing times are reduced, and the overall workflow is streamlined, leading to faster product development and compliance.

Conclusion
In conclusion, the EMC anechoic chamber plays a vital role in the testing and certification of electronic devices for electromagnetic compatibility. When paired with advanced tools like the LISUN SDR-2000B Magnetic Shielding Cabinet, it provides a comprehensive solution for conducting accurate, reliable, and efficient EMI testing. As technology advances and devices become more complex, the need for precise EMI testing will only grow, making tools like the LISUN SDR-2000B essential for ensuring the functionality and compliance of modern electronic devices.

For more information on the LISUN SDR-2000B Magnetic Shielding Cabinet, visit the official LISUN website.
