Understanding Hipot Test Acceptable Leakage Current in Capacitor Testing – Focusing on LISUN HIPOT10-100KV AC/DC Hipot Tester

Abstract

The hipot test, short for “high potential” test, is crucial for assessing the dielectric strength of electrical components, especially capacitors. It verifies that these components can withstand high voltages without breaking down or leaking excessive current. The key parameter in this test is the hipot test acceptable leakage current, which defines the limit of current that can flow through a dielectric without posing safety concerns. This article will explore the significance of acceptable leakage current in capacitor testing, detail the procedures for conducting hipot tests using the LISUN HIPOT10-100KV AC/DC Hipot Tester, and provide insights into industry standards that define acceptable leakage levels.

1. Introduction

Capacitors are essential components in electronic circuits, serving functions such as energy storage, filtering, and voltage regulation. Due to their role in handling electrical energy, ensuring their reliability and safety is paramount. One of the key methods to test the integrity of a capacitor’s dielectric insulation is through a hipot test. This test checks whether a capacitor can resist high voltages without experiencing breakdowns or allowing excessive leakage current.

In a typical hipot test, the acceptable leakage current is a critical factor that determines the capacitor’s quality and safety. This article focuses on the significance of hipot test acceptable leakage current, emphasizing its role in capacitor safety testing and reviewing how the LISUN HIPOT10-100KV AC/DC Hipot Tester ensures accurate and reliable results.

2. Understanding Hipot Testing

A hipot test involves applying a high voltage to a capacitor or other electrical components to evaluate the strength of their insulation. The test ensures that the dielectric material can handle high voltage without allowing a dangerous amount of current to pass through. If a component passes the test, it means that the insulation is adequate and that it can operate safely under normal and high-voltage conditions.

Key Components of a Hipot Test:
• Test Voltage: A higher-than-normal voltage is applied to stress the insulation.
• Leakage Current: The small amount of current that flows through the dielectric under test conditions.
• Breakdown: Occurs if the insulation fails, allowing a large current to flow.

In capacitor testing, the hipot test acceptable leakage current represents the maximum allowable current that can pass through the dielectric without causing damage or posing a safety hazard.

3. Importance of Hipot Test Acceptable Leakage Current

The acceptable leakage current in a hipot test is a measure of the dielectric quality of the capacitor. Leakage current can be caused by imperfections in the insulation material or construction defects in the capacitor. By setting a limit on this current, manufacturers ensure that capacitors can withstand their intended operating conditions without risking failure.

For most applications, a small leakage current is inevitable due to the physical properties of the materials used in capacitors. However, excessive leakage may indicate poor insulation, leading to breakdowns, malfunctions, or even hazardous conditions.

Factors Influencing Acceptable Leakage Current:
• Capacitance: Larger capacitors may naturally have higher leakage current due to their size and storage capacity.
• Test Voltage: Higher test voltages may result in higher leakage currents. Therefore, the test voltage must match the expected operational voltage.
• Test Duration: Longer test durations may result in a gradual increase in leakage current.
• Dielectric Material: The quality and type of dielectric material affect the level of leakage current during a hipot test.

4. Standards Defining Acceptable Leakage Current

Various international standards provide guidelines for acceptable leakage current levels during hipot testing. These standards vary depending on the application of the capacitor, but some common standards include:

• IEC 60950: Sets guidelines for insulation testing in information technology equipment.
• UL 60950: Provides standards for leakage current and dielectric strength in electrical components.
• IEC 60065: Focuses on electronic and electrical components in audio and video equipment.
These standards typically define both the test voltage and the acceptable leakage current limits, ensuring uniformity across industries.

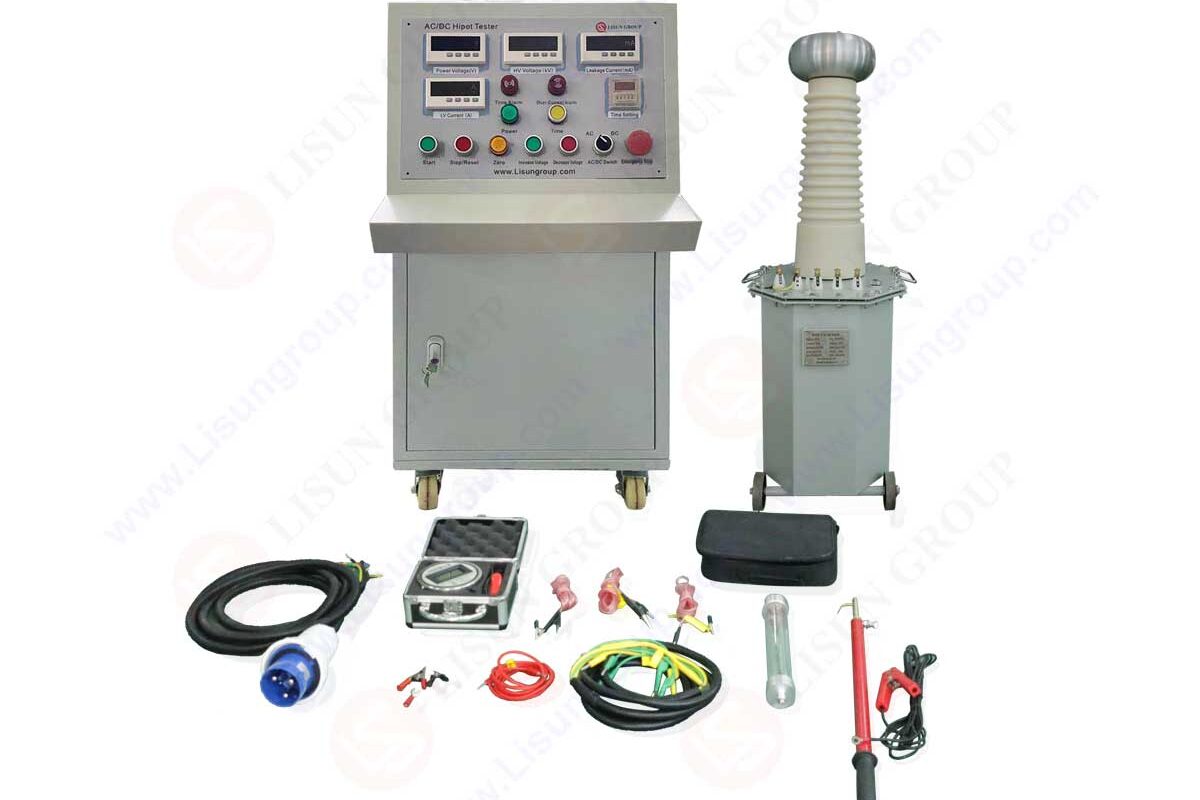

5. The Role of LISUN HIPOT10-100KV AC/DC Hipot Tester in Capacitor Testing

The LISUN HIPOT10-100KV AC/DC Hipot Tester is a versatile tool for conducting hipot tests on a wide range of components, including capacitors. It offers precise control over test parameters and ensures accurate measurement of leakage current, making it an ideal solution for manufacturers and testing labs.

Key Features of the LISUN HIPOT10-100KV AC/DC Hipot Tester:
• Wide Voltage Range: The tester can apply test voltages ranging from low to as high as 100KV, making it suitable for various types of capacitors.
• Leakage Current Measurement: The device accurately measures the leakage current and compares it to preset acceptable limits.
• Safety Features: Includes automatic shutdown if leakage current exceeds acceptable levels, preventing damage to the component under test.
• AC/DC Testing Capabilities: The system can perform both AC and DC hipot tests, making it highly versatile for different testing scenarios.

6. Performing a Hipot Test on Capacitors

When testing a capacitor using the LISUN HIPOT10-100KV, the following steps are typically followed:

Step 1: Set the Test Voltage

Before beginning the test, the appropriate test voltage is selected based on the operating voltage of the capacitor. For example, if the capacitor is rated for 500V, a test voltage of around 2 to 3 times the rated voltage may be applied.

Step 2: Connect the Capacitor

The capacitor is connected to the tester with one lead connected to the high voltage output and the other to ground.

Step 3: Measure Leakage Current

As the test voltage is applied, the system measures the leakage current flowing through the capacitor’s dielectric. The tester records this value and compares it against the hipot test acceptable leakage current threshold.

Step 4: Evaluate the Results

If the measured leakage current is below the acceptable limit, the capacitor passes the test. If the leakage current exceeds the threshold, the test system will shut down to protect the component and signal a failure.

7. Sample Test Results

The following table provides sample results from testing three different capacitors using the LISUN HIPOT10-100KV AC/DC Hipot Tester:

Capacitor Model	Test Voltage (V)	Measured Leakage Current (µA)	Acceptable Leakage Current (µA)	Result
Capacitor A	1000	1.5	2	Pass
Capacitor B	2000	3.1	3	Fail
Capacitor C	5000	7.2	10	Pass

In this example, Capacitor B failed the test because its leakage current exceeded the acceptable threshold, indicating a potential issue with the insulation quality.

8. Understanding Test Results

When interpreting hipot test results, it’s important to consider:

• Pass/Fail Criteria: A capacitor passes the test if its leakage current is within the acceptable range.
• Leakage Trends: A steady increase in leakage current during the test may suggest gradual insulation degradation.
• Breakdown Events: Sudden spikes in leakage current indicate insulation failure, and the capacitor should be rejected.

9. Conclusion

The hipot test is an essential tool for ensuring capacitor safety and reliability, with acceptable leakage current being a critical parameter. Using a system like the LISUN HIPOT10-100KV AC/DC Hipot Tester allows manufacturers to verify the dielectric integrity of capacitors by accurately measuring leakage current under high voltage conditions. By following industry standards and guidelines, this testing process helps ensure that capacitors meet the necessary safety requirements and can withstand high voltage applications without risk of failure.

As technology advances and capacitors are used in increasingly demanding applications, the role of precise hipot testing will continue to be crucial. By defining and adhering to hipot test acceptable leakage current thresholds, manufacturers can guarantee the performance and longevity of their products.

References

IEC 60950. “Safety of Information Technology Equipment.”
UL 60950. “Standard for Information Technology Equipment.”
IEC 60065. “Audio, Video, and Similar Electronic Apparatus – Safety Requirements.”
LISUN Group. “LISUN HIPOT10-100KV AC/DC Hipot Tester.” Available at: https://www.lisungroup.com/products/electrical-safety-tester/ac-dc-hipot-tester.html

Tags：HIPOT10-100KV
