The High Temperature Pressure Jet Waterproof Test Chamber is an important experimental equipment, usually made of materials such as stainless steel or domestic steel plates. It can simulate high-temperature and high-pressure conditions in real environments, and conduct reliability testing and performance verification on products in experiments.

Its main function is to spray high-pressure and high-temperature water into materials, components, and various product equipment through water pumps or pressure conveying systems in high-pressure, high-temperature, and high humidity environments for spraying testing to evaluate their durability and reliability. It can be applied to industries such as automobiles, electrical appliances, LED outdoor lighting, and has a wide range of applications.

What is the function of the High Temperature Pressure Jet Waterproof Test Chamber?

The High Temperature Pressure Jet Waterproof Test Chamber has the characteristics of stable temperature control, which can automatically control temperature, pressure, and humidity, and has various safety protection measures. Select different models of equipment for use according to actual needs. The use of a high-temperature and high-pressure spray test chamber can effectively evaluate the lifespan and stability of products.

In short, the High Temperature Pressure Jet Waterproof Test Chamber is an important spray test equipment that effectively improves the waterproof performance of the product, facilitates design, and enhances the competitive advantage of the product. Therefore, in the modern production and manufacturing process, the High Temperature Pressure Jet Waterproof Test Chamber has become an indispensable experimental tool in various industries.

The structure and function of the ipx9k High Temperature Pressure Jet Waterproof Test Chamber:

The ipx9k High Temperature Pressure Jet Waterproof Test Chamber is mainly composed of a quantitative spray system, circuit control system, heating system, cooling system, high-pressure water source system, protective screen, etc.

A quantitative injection system usually includes a spray nozzle and several nozzles of different sizes, which can be set according to different actual scenarios to ensure the accuracy of the testing process. The circuit control system can help users accurately control the water temperature and pressure inside the chamber. The heating and cooling systems can assist in controlling temperature to enhance test results.

The ipx9k High Temperature Pressure Jet Waterproof Test Chamber is also very powerful, and can be used to evaluate the waterproof, dustproof, and acid-base resistance of electronic devices. For example, when evaluating the waterproof performance of a mobile phone, it can be placed in a test chamber and sprayed with high-pressure and high-temperature water to check whether the phone can operate normally under water conditions.

The steps for changing the water for the ipx9K High Temperature Pressure Jet Waterproof Test Chamber are as follows:

Open the water tank cover and check if the water quality in the storage tank has become turbid. If it is turbid, it needs to be replaced in a timely manner.

1. Check if the drainage pipe on the back of the chassis is securely connected, and place one end of the water pipe into the drainage channel.
2. Open the drain valve and start draining.

3. Observe the water tank, drain the water thoroughly, and then close the drain valve.
4. Check if the water inlet pipe is unobstructed and if the faucet is turned on.
5. Enter the testing interface, click the “Add Water” button, and wait until the water is refilled.

The experimental parameters set in the experimental report of the IPX9K High Temperature Pressure Jet Waterproof Test Chamber are as follows:

1. Cycle count setting: Set the number of cycles (the standard requires one);
2. Spray time setting: Set the spray time of a single nozzle. (Standard 30 seconds);

3. Interval setting: Set the time to stop spraying water during the nozzle switching process. (Standard 10 seconds);
4. Water temperature setting: Set the test water temperature. (Standard 80 ℃);
5. Rotary table speed setting: Set the rotational speed of the rotary table. (Standard 5r/min).

6. Sample power-off time setting: The time during the test when the tested sample is in a powered on state, in minutes;
7. Sample power-off time setting: The time during the test when the tested sample is in a power-off state, in minutes.

JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

The both interior and exterior material of this chamber is high quality stainless steel, big glass observation window and elegant appearance. The turntable and spray lance adopt imported motor, and the rotation speed is adjustable.

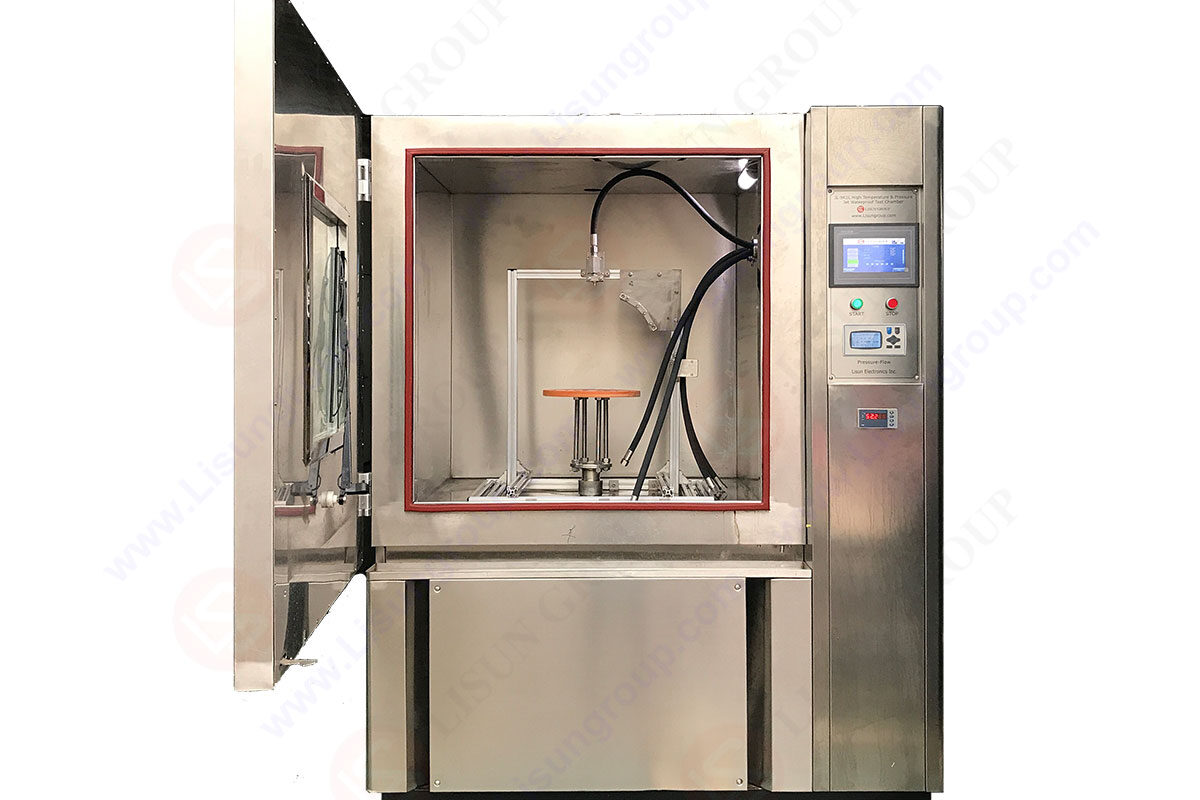

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
