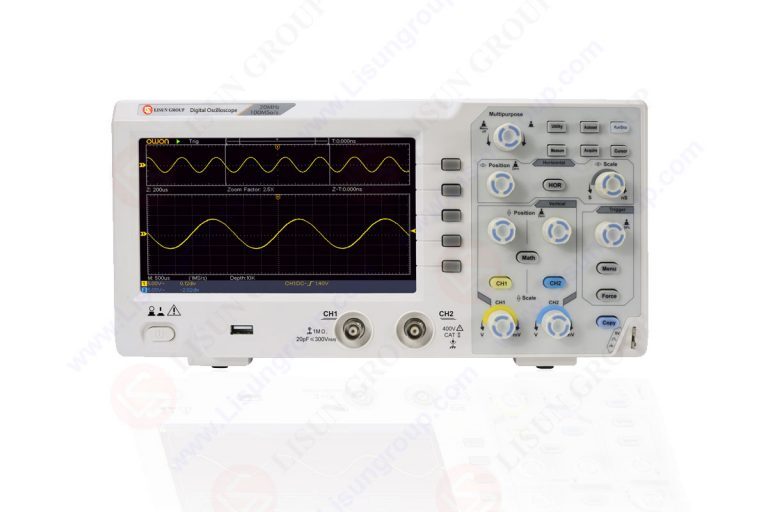

Understanding Key Specifications in Digital Oscilloscopes: Sampling Rate, Bandwidth, and Resolution

Introduction
When studying electrical signals, digital oscilloscopes are necessary. You need to be acquainted with the most important aspects of a digital oscilloscope if you want to get the most out of using one. In this section, we’ll take a more in-depth look at those three fundamentals, namely resolution, bandwidth, and sample rate.

These factors have a significant impact on the oscilloscope’s operational capabilities as well as its level of accuracy. Gaining an understanding of the connections that exist between these factors can assist you in selecting a digital oscilloscope that is tailored to meet the specific requirements of your work.

Sampling Rate
The sampling rate of a digital oscilloscope is one of the most important factors that determines the level of accuracy and dependability of the signal it displays. It is a measurement that indicates how many readings an oscilloscope is able to capture in a certain length of time.

The sampling rate refers to the number of samples that are collected in one second and is most often denoted in megasamples per second (MS/s) or gigasamples per second (GS/s).

Increasing the sample rate is required if the user wants the oscilloscope to be able to capture and reconstruct the signal with a higher level of precision. According to the Nyquist-Shannon sampling theorem, your sample rate has to be twice as fast as the signal’s maximum frequency in order for you to correctly reconstruct a signal. This is a need for you to be able to do so.

You are going to require an oscilloscope that has a sample rate that is sufficiently high if you want to be able to gather and examine signals at high frequencies without encountering any aliasing or distortion.

You can see a decrease in the effective sampling rate if you are employing complicated analytical tools, such as waveform math functions or serial protocol decoding, or if you are using many channels at the same time.

Both of these factors might contribute to a decline in the effective sampling rate. For measurements to be accurate, it is necessary to be aware of the relationship between the number of active channels and the sample rate.

Bandwidth
Its “bandwidth” refers to the frequency range that it can consistently detect and display, and the term comes from the word “bandwidth.” It refers to the frequency range across which the amplitude response of the oscilloscope remains constant within a certain tolerance, which is typically -3 dB.

It is a common misconception that the bandwidth provides an indication of the highest frequency that may be seen on an oscilloscope at any one time. On the other hand, the bandwidth is the frequency range that the oscilloscope can perform accurate amplitude measurements throughout.

For accurate measurements, it is recommended to use oscilloscopes that have a bandwidth that is at least five times bigger than the highest frequency component of the signal that is of interest.

The oscilloscope’s rising time capabilities are one of the aspects that are influenced by the bandwidth needs. The amount of time it takes for a signal’s amplitude to increase from 10% to 90% of its highest value is referred to as the rise time.

An oscilloscope with a larger bandwidth that can accurately record and show fast-rise time signals is excellent for applications that need precise timing analysis and high-frequency measurements. These kinds of measurements are often required in conjunction with one another.

Resolution
The smallest rise in voltage that an oscilloscope is capable of accurately displaying is referred to as the device’s “resolution.” The number of bits contained inside the ADC that was utilized to digitize the signal will serve as the deciding factor. Oscilloscopes typically have a horizontal resolution of 8 bits, however this number may range up to 10 bits or even higher.

The vertical resolution of the oscilloscope is directly linked to its ability to detect and accurately display even the most minute of voltage variations.

Oscilloscopes with a higher resolution are better able to measure weak signals and detect minute fluctuations in waveforms than those with a lower resolution. However, it is important to bear in mind that increasing the resolution might potentially also result in an increase in the noise floor, which would have an impact on the signal-to-noise ratio.

The vertical resolution of the oscilloscope that you choose should be determined by the measurement requirements that you have. When dealing with signals that have a large amplitude, it seems that a resolution of 8 bits would be sufficient.

However, a higher resolution of 10 bits or more may be necessary for applications that need precise voltage measurements or include low-amplitude signals. LISUN also provides the best digital oscilloscope.

Signal conditioning, background noise, and the processing methods that are built into the oscilloscope all have the potential to have an influence on the effective resolution. Because of this, it is very necessary to have a solid understanding of the effective resolution of the oscilloscope in a variety of different operating conditions and to take into account any potential limitations.

Interplay between Sampling Rate, Bandwidth, and Resolution
The sampling rate, bandwidth, and resolution of an oscilloscope are all factors that contribute to the instrument’s overall performance. There is a strong link between these three aspects of the instrument. For the results of the measurements to be reliable, their interaction has to be taken into consideration.

The sample rate has to be fast enough to capture the signal’s bandwidth. According to the Nyquist-Shannon sampling theorem, the sample rate ought to be at least twice as large as the signal’s bandwidth in order to avoid aliasing from occurring. Consequently, it is essential to choose an oscilloscope whose sampling rate is either comparable to or higher than the bandwidth that would be required.

Other essential aspects to consider in relation to the resolution are the vertical range and sensitivity settings of the oscilloscope. While the vertical range defines the range of voltages that can be exhibited, resolution determines the smallest voltage increment that can be represented consistently. This is in contrast to the fact that the vertical range describes the range of voltages that can be shown.

It is essential to choose a resolution based on the projected signal levels and the degree of measurement precision that is necessary in order to guarantee that the oscilloscope will properly display the signal without suffering from an excessive amount of quantization noise or a loss of information.

Additionally, the accuracy with which the oscilloscope can measure high-frequency components of the signal is inversely related to the bandwidth parameter that is used. Utilize an oscilloscope that has a bandwidth that is greater than the maximum frequency that is of interest in order to get reliable readings and accurate waveform reproduction.

It is important to keep in mind that the sample rate, bandwidth, and resolution that have been specified are the bare necessities for the oscilloscope in order for it to function properly.

The performance of an oscilloscope in real-world settings may be impacted by a variety of factors, such as the signal quality, probe parameters, and ambient noise levels.

Oscilloscope characteristics need to be carefully reviewed in light of the measurements that are planned to be taken with the instrument as well as the environment in which it will be used.

Conclusion
Knowing the sample rate, bandwidth, and resolution of a digital oscilloscope is vital for getting the most out of it. The bandwidth of an oscilloscope guarantees that it will properly measure signals within the specified frequency range, while the sampling rate defines how accurately they will be captured.

The resolution of an oscilloscope affects its capacity to detect and show subtle changes in a signal by dictating the smallest voltage increase that can be displayed faithfully. Selecting an oscilloscope that suits your measurement demands and guarantees accurate and reliable signal analysis is possible by taking into consideration the interaction between these parameters and real-world elements like noise and signal quality.
