Understanding the EMI Test Receiver: An Essential Tool for Electromagnetic Compatibility Analysis

Introduction
Electronic devices are becoming more widespread in today’s interconnected society. This category includes a wide range of electronic devices, from mobile phones and laptops to medical and industrial equipment.

More and more electronic gadgets being used means increased potential for electromagnetic interference (EMI) issues. The requirement for thorough electromagnetic compatibility (EMC) testing is underscored by the fact that these issues may impede the devices’ ability to function effectively or even cause failures.

The heart of this testing method is a special piece of gear called an EMI test receiver. This article’s goal is to provide readers a thorough understanding of EMI test receivers, what they are, and how they fit into EMC testing.

Electromagnetic Compatibility: A Basic Overview
In the context of electromagnetic fields, the term “electromagnetic compatibility” is used to describe the interaction between electrical devices that share this space. Electronic equipment in the area may malfunction or stop working altogether if electromagnetic interference is present. This disturbance originates from electromagnetic radiation-emitting or -receiving devices.

To ensure that their products are compatible with one another, manufacturers do EMC testing. The purpose of EMC testing is to determine how effectively a device can shield itself from externally generated noise and how vulnerable it is to electromagnetic interference (EMI).

The Role of EMI Test Receivers
In EMC testing, the use of an EMI test receiver is crucial. A wide range of electromagnetic signals may be detected, analysed, and quantified with the help of these specialised devices. LISUN provides the best EMI tester.

The emission characteristics and susceptibility to external interference of a device may be learned with the use of an EMI test receiver by collecting and analysing the device’s electromagnetic emissions. The receivers are put through electromagnetic interference tests to achieve this goal.

When evaluating the electromagnetic performance of electronic devices, EMI test receivers are crucial because they can monitor both radiated and conducted emissions.

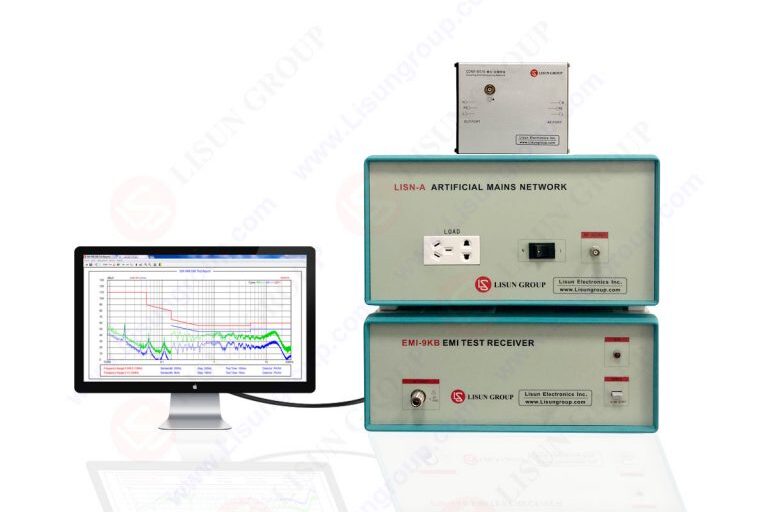

Figure: EMI Test Receiver

Functionality and Features
In order to perform a thorough and accurate examination of radiated fields, modern EMI test receivers are outfitted with a variety of sophisticated functions. Some examples of these characteristics are given below:

Frequency Range: EMI test receivers have a wide frequency range that allows them to pick up both radiated and conducted radiation. In this way, emissions from a wide range of sources may be tracked and analysed in minute detail.

Sensitivity: Receivers used to test for electromagnetic interference (EMI) should have a high sensitivity so that even the faintest electromagnetic signals may be picked up. The sensitivity of the receiver to the emitted signals will improve if the surrounding noise level is reduced.

Measurement Modes: An EMI test receiver typically has three distinct measurement modes: peak detection, quasi-peak detection, and average detection. In such settings, testing may be adapted to meet the needs of the legal and business communities.

For instance, when simulating the human body’s reaction to electromagnetic fields, quasi-peak or average detection is often utilised instead of peak detection, which is typically employed for detecting emissions from equipment with intermittent activity. This is because identifying the amplitude of the emissions using quasi-peak detection is more precise than via average detection.

Preselector and Filters: In-built preselectors and filters reduce background interference and improve measurement precision. As a result, the receiver is primed to focus on the desired signals while filtering out the rest.

Antenna Options: Some common antenna configurations used in EMI test receivers include the biconical, log periodic, and hybrid types. Accurate and efficient measurements may be made in a wide range of surroundings and under a few distinct testing circumstances when a choice of antennas are available.

EMI Test Receiver Applications
The telecommunications, automotive, aerospace, and medical device production sectors are just a few of the many potential users and markets for EMI test receivers. Device developers have a responsibility to regulators early on to address any electromagnetic interference (EMI) issues that may occur. Common uses for EMI receiver test equipment include the following:

Radiated Emissions Testing: EMI receivers are specialised test receivers used to evaluate the effects of electromagnetic interference. In this stage, the device’s emissions are monitored at varied distances and angles to simulate real-world scenarios.

When manufacturers record radiated emissions from a device, they may identify potential interference sources and alter the design as needed to meet electromagnetic compatibility (EMC) requirements.

Conducted Emissions Testing: Emissions from power cables and associated cables may be measured using EMI test receivers. Compatibility with other devices and with any networks to which they may be linked is ensured by such testing.

Manufacturers can identify the causes of interference by analysing emissions and then taking the necessary precautions.

Susceptibility Testing: Electromagnetic interference (EMI) test receivers are used to ascertain a device’s susceptibility to environmental noise. To mimic real-world electromagnetic settings, the device is subjected to a wide range of electromagnetic fields and signals. Manufacturers may better design shielding or filtering systems by observing how a device performs under adverse conditions, such as exposure to external interference.

Regulatory Compliance: Electronic device manufacturers can’t put their goods’ reliability or marketability at risk by not conforming to global standards and rules for the industry. Standards for permitted emission levels and test procedures are developed by a number of organizations, including the European Union’s Electromagnetic Compatibility (EMC) Directive, the United States’ Federal Communications Commission (FCC), and the International Electrotechnical Commission (IEC).

Device compliance with these standards may be determined with the use of EMI test receivers. The capacity to make design changes as needed gives manufacturers a competitive edge.

Standards and Test Methods
Test receivers for electromagnetic interference (EMI) are developed to conform to various international standards and testing protocols. These standards detail the allowable limits of electromagnetic emissions as well as the processes that should be followed while doing EMC testing. The following are some standards that are often referred to:

CISPR 16: Radio frequency (RF) emissions from electronic devices and equipment are regulated by this standard, which sets measuring methodologies and regulations for these emissions. A device is available for measuring these radio frequency emissions.

CISPR 25: This standard’s major focus is on the measurement of vehicular emissions, both conducted and radiated. Achieving electromagnetic compatibility in car electronics is the focus of this standard.

IEC 61000-4-x: The IEC 61000 test series is a battery of tests that may be used to measure how effectively a device is able to cope with electromagnetic interference from the surrounding environment.

FCC Part 15: Regulation of accidental radiation sources is the purview of the Federal Communications Commission (FCC). These laws outline the limitations for electromagnetic emissions that may be produced by electronic equipment.

Manufacturers may demonstrate to regulators that their products are safe and effective by using data and measurements that conform to these requirements for EMI test receivers.

Conclusion
Electromagnetic compatibility is crucial to the reliable functioning of electronic equipment in today’s highly linked society. Manufacturers can’t check the emissions and security of their products for EMI without EMI test receivers.

By providing accurate measurements and valuable insights on EMI problems at an early stage in the development process, these receivers assist manufacturers in the production of compliant and high-quality goods.

The use of EMI test receiver, which have sophisticated functionality, a broad frequency range, and a wide variety of measuring capabilities, enables manufacturers to improve the electromagnetic performance of their devices, conform to the requirements of regulatory agencies, and release goods that are free from interference.

These receivers have a wide frequency range, which makes this possible. In the never-ending search for electromagnetic compatibility in the realm of electronic devices, EMI test receivers will continue to advance along with the underlying technologies in the next few years.
