Voltage Impulse Generators: Principles, Applications, and the LISUN DO160-S17 Voltage Spike Generator

Introduction
Voltage impulse generators, commonly referred to as Voltage Spike Generators, are crucial tools in electromagnetic compatibility (EMC) testing. These devices simulate high-energy voltage spikes or transients that electrical equipment might encounter during operation, such as those caused by lightning strikes, switching operations, or power-line crosses. Voltage impulse generators are used to assess the performance and robustness of electronic components and systems under these extreme conditions. This article explores the principles behind voltage impulse generators, their applications, and a detailed review of the LISUN DO160-S17 Voltage Spike Generator, a leading model designed to meet industry standards for testing and compliance.

1. Overview of Voltage Impulse Generators

Voltage impulse generators are designed to produce transient voltage spikes that simulate the surges and spikes seen in real-world electrical environments. These transients, often in the form of fast-rise-time pulses, can cause immediate damage to sensitive electronic components or degrade their performance over time.

1.1 What Are Voltage Impulses?

A voltage impulse is a sudden and short-duration surge in electrical potential. It typically occurs in the form of a very brief but high-amplitude pulse. Voltage impulse generators produce pulses with different rise times, amplitudes, and durations, mimicking the kind of surges that occur in various electrical environments. The most common forms of voltage impulses include:

Lightning-induced surges: High-voltage spikes caused by lightning strikes near power lines or electrical equipment.
Switching transients: Surges caused by the opening or closing of electrical circuits.
Induced voltages: Voltage spikes resulting from electromagnetic induction.

1.2 Importance in EMC Testing

In the context of EMC testing, voltage impulse generators are vital for testing the immunity of electrical devices to high-voltage transients. Devices such as LED drivers, electrical appliances, power supplies, automotive electronics, and telecommunications equipment must withstand these transients to ensure safe and reliable operation. Testing ensures that these products comply with international standards, such as IEC 61000-4-5, which specifies immunity testing for electrical and electronic equipment to surges caused by electrical fast transients.

2. Principles of Operation of Voltage Impulse Generators

Voltage impulse generators work by creating high-voltage pulses with specific characteristics. The most common parameters for these pulses are the peak voltage, rise time, pulse width, and repetition rate. The design of the generator focuses on producing these pulses with accuracy to meet regulatory standards.

2.1 Key Parameters of Voltage Impulses

Peak Voltage: This is the maximum voltage reached by the pulse. In surge testing, the peak voltage may range from a few hundred volts to several kilovolts, depending on the device and test standard.

Rise Time: This refers to the time it takes for the voltage to rise from 10% to 90% of its peak value. A typical voltage impulse will have a fast rise time, often in the nanosecond range, to simulate the sharpness of real-world electrical surges.

Pulse Duration: This is the total duration of the voltage pulse. The pulse duration can range from microseconds to milliseconds, depending on the type of transient being simulated.

Repetition Rate: This defines how often the pulses are generated. Some tests require multiple pulses to be delivered in quick succession to simulate a series of transients.

2.2 How Voltage Impulse Generators Work

A voltage impulse generator typically uses capacitors and inductors to store and release energy in a controlled manner. The process begins with charging a capacitor to a predetermined voltage level. The energy stored in the capacitor is then rapidly discharged through a switching device, such as a spark gap or thyristor, which causes the capacitor to release its energy as a high-voltage pulse.

To create the desired characteristics of the pulse (peak voltage, rise time, etc.), the generator’s circuit components are selected and configured to control the energy discharge process. Additionally, the waveform of the voltage pulse can be shaped to meet specific standards (e.g., the 10/1000μs waveform defined by IEC 61000-4-5).

3. Applications of Voltage Impulse Generators

Voltage impulse generators are used in a wide range of applications, especially for testing the durability and immunity of electrical and electronic systems. Below are some key areas where these devices are crucial:

3.1 EMC Testing

EMC testing ensures that electronic products do not emit electromagnetic interference (EMI) beyond acceptable levels and that they can operate without malfunctioning when exposed to electromagnetic disturbances. Voltage impulse generators are used in the testing phase to simulate transients and evaluate the immunity of devices to electrical surges.

3.2 Lightning Protection

Voltage impulse generators are essential in testing the effectiveness of lightning protection systems. By simulating lightning-induced voltage spikes, these generators help assess whether systems such as surge protectors, grounding systems, and insulation are properly designed to mitigate lightning damage.

3.3 Automotive Electronics

Automotive electronics are highly susceptible to voltage spikes due to the presence of high-powered electrical components and external environmental factors such as lightning. Voltage impulse generators are used to simulate these transients and ensure that automotive systems, including sensors, ECUs, and wiring, meet stringent electromagnetic compatibility (EMC) standards.

3.4 Aerospace and Military

In aerospace and military applications, the integrity of electronic systems is critical to safety and functionality. Voltage impulse generators are used to simulate high-voltage transients that could be encountered during operations, ensuring that electronic systems can withstand surges without failure.

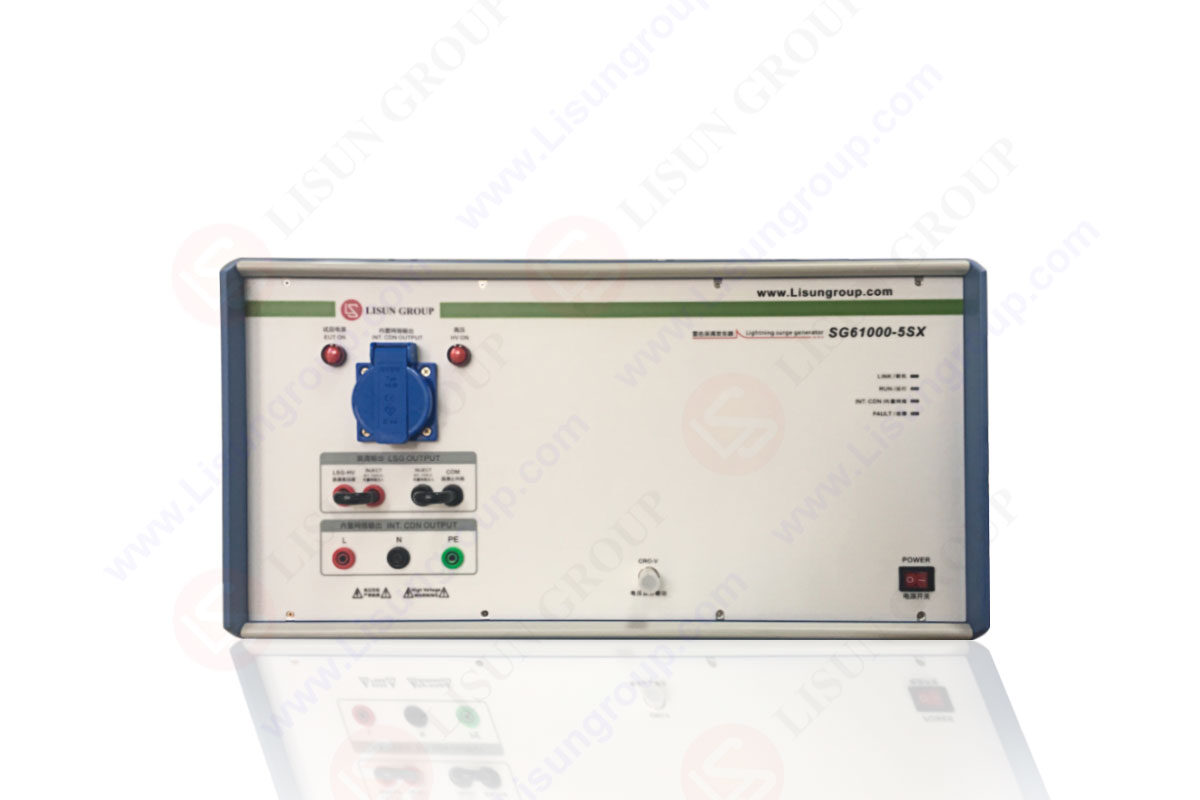

4. The LISUN DO160-S17 Voltage Spike Generator

One of the leading voltage impulse generators in the market is the LISUN DO160-S17 Voltage Spike Generator. This product is designed to meet the high standards set by IEC 61000-4-5, MIL-STD-461, and DO-160, ensuring that electronic devices undergo rigorous testing for voltage spike immunity.

4.1 Key Features

• High Voltage Output: The LISUN DO160-S17 can generate voltage spikes up to 8kV, providing sufficient power for testing a wide range of electronic devices.
• Waveform Control: It allows precise control over parameters such as rise time, pulse width, and peak voltage. The generator can produce standard waveforms like the 10/1000μs waveform and other custom profiles.
• Multi-Mode Operation: It supports both single-shot and repetitive testing modes, making it versatile for various testing scenarios.
• Compliant with International Standards: The device is designed to comply with IEC, MIL, and DO-160 standards, making it ideal for use in industries like telecommunications, automotive, aerospace, and electrical manufacturing.
• Safety Features: The LISUN DO160-S17 is equipped with built-in safety mechanisms to prevent overvoltage or overheating, ensuring safe operation during testing.

4.2 Technical Specifications

Parameter	Specification
Peak Voltage	Up to 8 kV
Rise Time	≤ 1.5 μs (10/1000 μs waveform)
Pulse Duration	1000 μs (adjustable)
Repetition Rate	1-50 pulses per second
Waveform	10/1000 μs, 8/20 μs, custom waveforms
Compliance Standards	IEC 61000-4-5, MIL-STD-461, DO-160
Output Mode	Single, Continuous, and Burst
Power Supply	AC 220V ±10%, 50/60 Hz

4.3 Applications of the LISUN DO160-S17

The LISUN DO160-S17 Voltage Spike Generator is widely used in the following applications:

• Automotive electronics: Testing automotive ECUs and wiring harnesses for surge immunity.
• Aerospace: Ensuring that avionics and electrical systems can withstand transients during operation.
• Consumer Electronics: Protecting electrical devices from damage due to power surges and lightning strikes.
• Telecommunication: Evaluating the resilience of communication equipment to electrical disturbances.

5. Conclusion
Voltage impulse generators, such as the LISUN DO160-S17, play a critical role in testing and safeguarding the performance of electronic systems against high-voltage transients. With their ability to simulate lightning-induced surges, switching transients, and induced voltage, these generators are indispensable in EMC testing and ensuring the reliability of electrical equipment in real-world environments. By providing accurate and controlled voltage spikes, they help manufacturers meet regulatory standards and enhance the durability of their products. The LISUN DO160-S17, with its high voltage output and precise waveform control, stands out as a reliable solution for voltage impulse testing across various industries.
