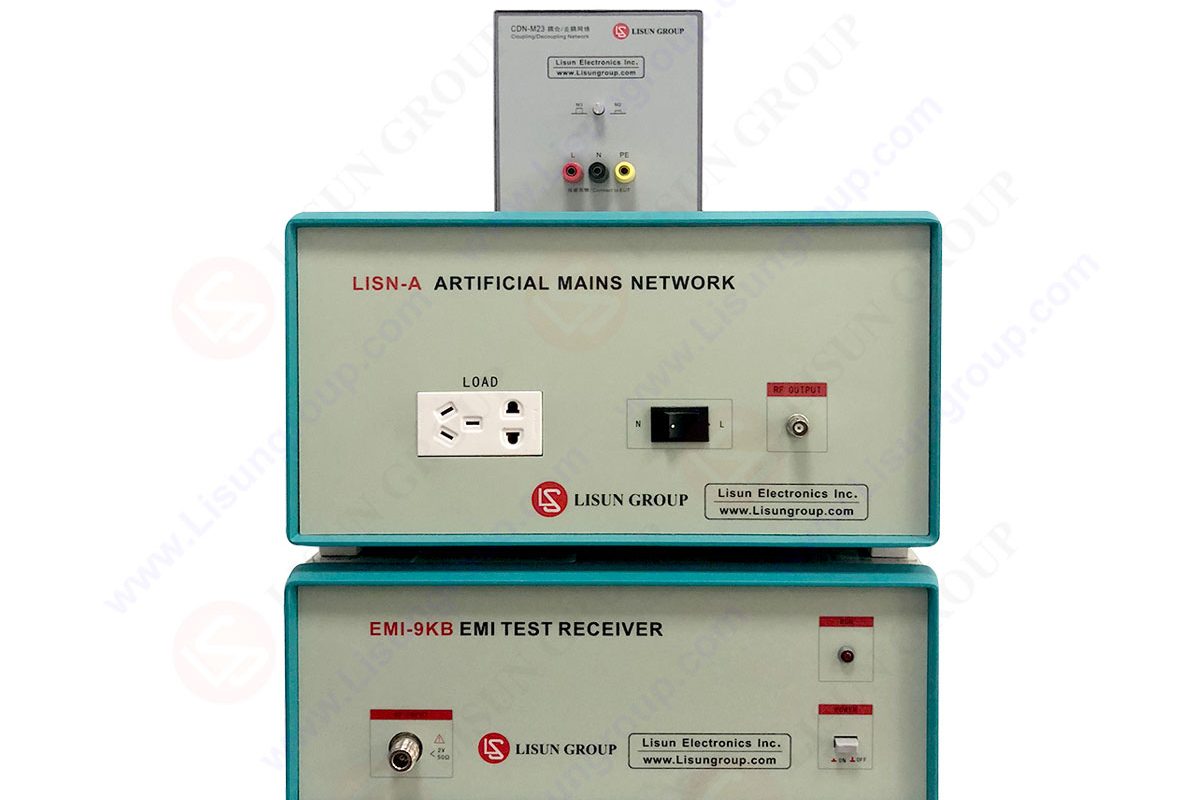

What are the EMI Receiver measurement tools

Introduction
An EMI receiver measures electromagnetic disturbances by employing traditional stepped scans or ultrafast FFT-based time domain scans. This is done during the construction of the receiver. Additionally, it works effectively as a signal and spectrum analyzer.

Usage of EMI Receiver
1. EMI test receivers are devices designed to detect electromagnetic emissions rigorously to guarantee that all emissions adhere to the Standard that is being tested against.
2. These instruments are exceptionally accurate. They are configured to execute the necessary tests for the parameters given by the Standards in the simplest feasible manner, including the execution of automated test routines when applicable.
3. EMI receivers are capable of far more than their name implies. These receivers incorporate a comprehensive signal analyzer and a spectrum analyzer into a single device.
4. The EMI receiver is equipped with real-time spectrum analysis and a comprehensive variety of diagnostic capabilities, allowing for in-depth study of disturbance signals and the history of those signals.
5. Users can investigate the reasons for occasional or concealed emissions thanks to the tools provided here.
6. The EMI receiver has user-friendly menus shown on a touchscreen that is intuitively designed.
7. The EMI-test receiver is an excellent alternative for mobile applications because of its small size, lightweight, optionally ruggedized housing, and optionally ruggedized DC power supply.

EMI Measurement Equipment
This page contains everything you need to satisfy the criteria for EMI Measuring equipment for EMI-9KB and electromagnetic compatibility (EMC).

We provide a comprehensive selection of EMI and EMC testing equipment, ranging from amplifiers with modest price tags to precise cabling and measuring capabilities that enable you to conform to international standards. The improved EMI/EMC testing equipment that LISUN has available can be beneficial to engineering teams, research laboratories, testing facilities, telecommunications, and electronics developers working in both the public and commercial sectors.

There has never been a time when it was more important to assure electromagnetic compatibility through careful testing than there is now, given the constantly growing number of devices that are sensitive to electromagnetic interference. LISUN is aware of this need and provides customers with a comprehensive selection of EMI measurement equipment that is both cutting-edge and of the highest possible quality, sourced from the most reputable vendor partners in the industry.

At LISUN, you can discover all of the current EMI/EMC testing supplies and equipment you want, regardless of the type of test equipment you’re searching for, whether fundamental monitoring equipment or entire, turnkey EMC test systems.

Conducted Immunity Test Equipment (EMI)
All the information regarding the conducted immunity test equipment is mentioned below.
• Discharge Electrostatic Plus or Minus 15 kV Contact Discharge, +/- 30 kV Air Discharge Humidity Rooms with temperature controls and a laboratory
• Waveform verification target using an oscilloscope with a 1 GHz bandwidth
• ESD tips ranging from the basic IEC/EN test to tips developed specifically for the automobile industry
Electromagnetic Fields That Are Radiated (RF)
• Uniform field in accordance with the IEC and EN specifications
• A wide range of modulations (AM, FM, Pulsed)
• The field strengths are intended for >200 V/m at a distance of 1m, either continuously or pulsed from 1-18GHz.
• Fields that have been calibrated are accessible up to 18 GHz.
• 1 kW amplifier operating between 80 MHz and 1 GHz
• 250-watt amplifiers that operate between 1 and 18 GHz.
• 500W amplifier with a frequency range of 10 kHz to 200 MHz
• 5M EMC Chamber, with frequency ranges ranging from 26 MHz to 18 GHz. It can be utilized for testing compliance with SAE, ISO, GM, Ford, Chrysler, Nissan, Audi, Fiat, Honda, Mazda, SAE J1113, SAE J551, and other SAE and ISO standards.
• Automotive, GM 5097, 3100, DC 10614REV A, Ford AB/AC, Nissan, Mazda, Fiat, Honda, Audi, Chrysler, SAE, ISO, and Mazda are some examples of typical industry standards.
• R&S EMI test receivers cover the whole spectrum of EMI Standards for commercial, automotive, and military applications. These standards come from all of the top standardization agencies in the world, including the IEC and MIL-STD. All of the most recent changes, such as the rapid FFT-based time-domain scan that makes testing considerably quicker than the more traditional frequency scans, are supported. The instruments cover all of the necessary frequency ranges up to 44 GHz, and frequencies up to 500 GHz can be handled using additional mixers.
• EMI test receivers are available from R&S in both full compliance and pre-compliance varieties. Receivers that are fully compliant implement all of the standards’ requirements discussed above, which are necessary for certification testing. When it comes to cost and benefit, pre-compliance receivers are the optimum choice for EMI testing during the development phase. They implement the bandwidths, limitations, and detectors indicated by the standards, but they do not fully comply with all the stringent requirements necessary for complete compliance.

FAQs
How does an EMI receiver work?
To measure the radiated and conducted emissions produced by electronic equipment, electromagnetic interference (EMI) receivers or spectrum analyzers and the appropriate cables and transducers (such as an antenna, LISN, E/H field probe, etc.), are utilized. In addition to oscilloscopes, EMI receivers and spectrum analyzers are fundamental instruments for monitoring radio frequency (RF) signals.

What does EMI stand for?
It is the short form of Electromagnetic Interference.

Conclusion
In short, we can say that LISUN deals with one of the best quality products. Its EMI-9KB has some unique features that engineers are looking for. It is a revolutionary product in optical engineering.
