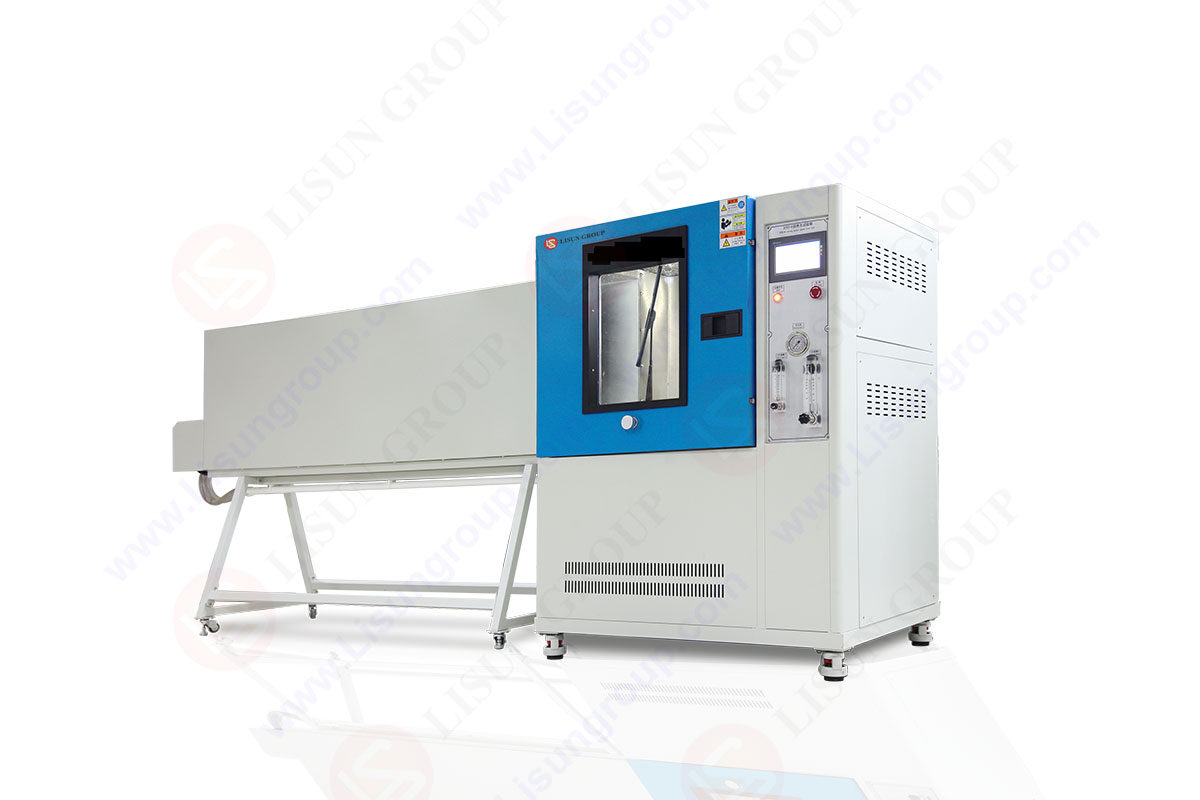

The swing pipe water spray test chamber is used to conduct ipx34 rain test on the product by using the swing tube type, and it is used to conduct grade 3 or grade 4 waterproof test on the product.
The swing pipe water spray test chamber is divided into three types of instruments with different appearances, namely box type, split open type and shower spray test devices, which have various advantages. Recently, I saw some users ask: What are the standard requirements for the swing tube rain test device? According to this question, we will briefly analyze what the standard technical requirements look like:
1. Structural parameters
Swing tube size: R600mm (8 different radii)
External size: about 1950 * 1220 * 1550mm (customizable)
Size of spray hole: diameter 0.4mm
Inner diameter of swing tube: 15mm
Diameter of sample turntable: 400mm
2. Functional parameters
Flow: 1.8L/min ± 5% (IPX3); 2.6L/min ± 5% (IPX4) (flow varies according to the radius of swing tube)
Turntable bearing: 50kg
Turntable height range: 770-1200mm (distance from the table to the ground)
Rotating speed of rotary table: 1-5r/min (accurate and adjustable)
Turntable rotation mode: constant forward rotation/forward and reverse rotation alternately
Pipe swing angle: 120 º (IPX3); 350º(IPX4)
Swinging speed of swing tube: 120 ° back and forth 4S (IPX3); 350 ° back and forth 12S (IPX4)
3. Electrical parameters
Equipment power supply: 220V
Power supply of test sample: 220V
Equipment power: 1.0KW
Safety protection functions: leakage protection, water shortage protection, short circuit protection
Operating procedures for rain test chamber:
1. replace the nozzle, remove the stainless steel plugs on both sides of the swing tube, and replace the blue nozzle.
2. Please put the sample on the sample turntable so that the sample is in the center of the desktop.
3. Adjust the distance: adjust the height of the rotary table according to the sample size, so that the distance between the upper part of the sample side and the nozzle of the swing tube does not exceed 200mm.
4. Enter the test interface, select the radius of the oscillating tube and select the level test. If the test product is powered on, click “Sample Power” to power on the sample.
5. Technical parameter equipment, such as time, power on time, flow rate, etc
6. return to the main interface, click “Test Start” to return to the main interface, and observe whether the nozzle starts spraying water. If some nozzles are blocked, replace the nozzle or dredge it with a needle in time.
7. When the test time is up, the equipment automatically stops the test, and the alarm interface appears after the test. Then, please cut off the power supply of the sample and take down the observation results of the tested sample. If there is no subsequent test,
8. Shut down the machine.
LISUN lauched JL-XC series waterproof test chambers are mainly used for small electronic and electrical products such as lamps, electrical cabinets, electrical components and so one. It is used for physical and other related properties checking under simulated climatic conditions. It determines whether the performance of the product meets the requirements or not after the test. It is very useful in the design, improvement, verification and factory inspection of the product. The JL-XC waterproof testing fully meets IEC60598-1, IEC60529:1989 +A1:1999 +A2:2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208-2008 and GB7000.1.
