What are the standard test conditions for IPX9k High Temperature Pressure Jet Waterproof Test Chamber

Ipx9k High Temperature Pressure Jet Waterproof Test Chamber is also called ipx9 high temperature rain box, high pressure spray box, etc. It belongs to the advanced waterproof class of ip waterproof, and can be used for ipx9 waterproof class test of products. It also has a wide range of applications, such as automotive industry, electric vehicles, batteries, household appliances, LED outdoor lamps and other products, as well as the use of various fields.

1. Number of ipx9k orifices: 4;
2. Ipx9k orifice angle: 0 °, 30 °, 60 °, 90 ° (vertical direction);
3. Ipx9k spray temperature room temperature: (25 ℃), 80 ± 5 ℃ (deviation temperature can be agreed)
4. Ipx9k water spraying pressure: 8000~10,000 Kpa;
5. Ipx9k water jet impact force: 0.9~1.2N (force value calibration system);
6. The total time is 120s, and each angle position is tested for 30s (settable).
7. Product test specification: large sample (175 ± 25mm) and small sample (125 ± 25mm)
8. The total time is 120s, and each angle position is tested for 30s (settable).
IPX9k High Temperature Pressure Jet Waterproof Test Chamber is used to conduct a waterproof high temperature and high pressure rain impact test on the product by means of high temperature and high pressure spray test.

Can ipx9k High Temperature Pressure Jet Waterproof Test Chamber be heated?
In fact, the ipx9k high temperature and high pressure spray test device uses the pressure and water with temperature to detect the ip waterproof of the product. It cannot detect the heating of the product, mainly because the water with temperature. K means that it has the added function to make the water pressure stronger than the ordinary water pressure.

Features of ipx9k High Temperature Pressure Jet Waterproof Test Chamber:
1. The ipx9k rain test chamber is applicable to the IPX9K waterproof grade test of products.
2. The shell is made of steel plate, and the surface is sprayed with silver gray baking paint, which is beautiful and durable.
3. The turntable is made of SUS304 # stainless steel plate to ensure no rust after long time use. The inner box is welded seamlessly, and the outer wall is made of thermal insulation cotton to enhance the thermal insulation performance, which makes the whole test environment more consistent with the actual scene.
4. Core parts: IPX9 fan-shaped nozzle is made of stainless steel, with an accuracy error of 2mm (can be measured with micrometer).
5. Open structure; It also has its own water tank and can not recycle water; Automatically control water inflow.
6. Four fan-shaped nozzles are uniformly distributed within 90 ° vertically in the middle of the box, which are designed and manufactured in strict accordance with the standard.
7. Turntable drive: using stepping motor, the speed can be set (adjustable) on the touch screen, and adjustable within the standard range.
8. The ipx9k rain test box uses the original Italian imported water pump. The high temperature system is heated by the heating pipe, and the high pressure and high temperature water pressure is pumped out by the high temperature resistant water pump (the imported high temperature resistant water pump has stable performance and long service life).
9. The test time can be set on the touch screen, the setting range is 0-999min (adjustable), and the standard time is 30s for each angle (user can customize the setting separately)
10. After the test is completed, there is an alarm function to remind the operator that the test is complete.

Introduction of ipx9k High Temperature Pressure Jet Waterproof Test Chamber maintenance:
1. If the test is not conducted for a long time, the water in the storage tank shall be drained; The water in the water tank cannot be stored for more than 3-7 days, and the replacement time depends on the use frequency and water quality.
2. The stainless steel filter in the rain test box shall be disassembled and cleaned within 2 months, and the water tank shall be cleaned and free of other impurities.
3. The rain test box shall be started and tested once within one month. Do not store it for a long time.
4. When the equipment is restarted, the interval time should exceed 15 seconds; If the frequency converter is not started due to quick restart, the equipment cannot operate normally.
5. The force value shall be checked once or twice within one year.
6. Before testing in the rain test box, pay attention to cleaning the label paper and plastic film that are easy to fall off on the surface of the sample, so as to prevent the filter from falling into the water tank and blocking the water pump.
7. In order to maintain the long-term efficiency of the water pump, the following preventive maintenance intervals are recommended.
8. According to the date of the calibration certificate, the local third-party organization shall be found in time for calibration; Once a year.

Steps for changing water in IPX9K High Temperature Pressure Jet Waterproof Test Chamber:
Open the water tank cover and check whether the water quality of the water storage tank becomes turbid. If it becomes turbid, replace it in time.
1. Check whether the drain pipe on the back of the chassis is firmly connected, and put one end of the water pipe into the drain.
2. Open the drain valve and start to drain.
3. Observe the water tank and close the drain valve after the water is drained.
4. Check whether the water inlet pipe is kept smooth and whether the tap is turned on.
5. Enter the test interface, click the “add water” button, and wait until the water is refilled.

Test report of IPX9K High Temperature Pressure Jet Waterproof Test Chamber:
1. Number of cycles setting: set the number of cycles (one is required by the standard);
2. Spraying time setting: set the spraying time of a single sprinkler. (standard 30 seconds);
3. Interval time setting: set the time to stop spraying water in the middle of nozzle switching. (standard 10 seconds);
4. Water temperature setting: set the test water temperature. (standard 80 ℃);
5. Rotary table speed setting: set the rotary table speed. (standard 5r/min).
6. Sample power-off time setting: the time when the tested sample is powered on during the test, in minutes;
7. Sample power-off time setting: the time when the tested sample is in power-off state during the test, unit: min.

LISUN lauched JL-9K1L High Temperature & Pressure Jet Waterproof Test Chamber is according to IEC60529:1989 +A1:1999 +A2：2013 《Degrees of protection provided by enclosures(IP Code)》, GB4208, DIN40050-9，GB7000.1，ISO20653 and VW80000 for protection level IPX9K testing. It is a waterproof test machine designed for vehicle spare parts, electrical and electronic industry, to simulate natural environment or human factors.

The both interior and exterior material of this chamber is high quality stainless steel, big glass observation window and elegant appearance. The turntable and spray lance adopt imported motor, and the rotation speed is adjustable.

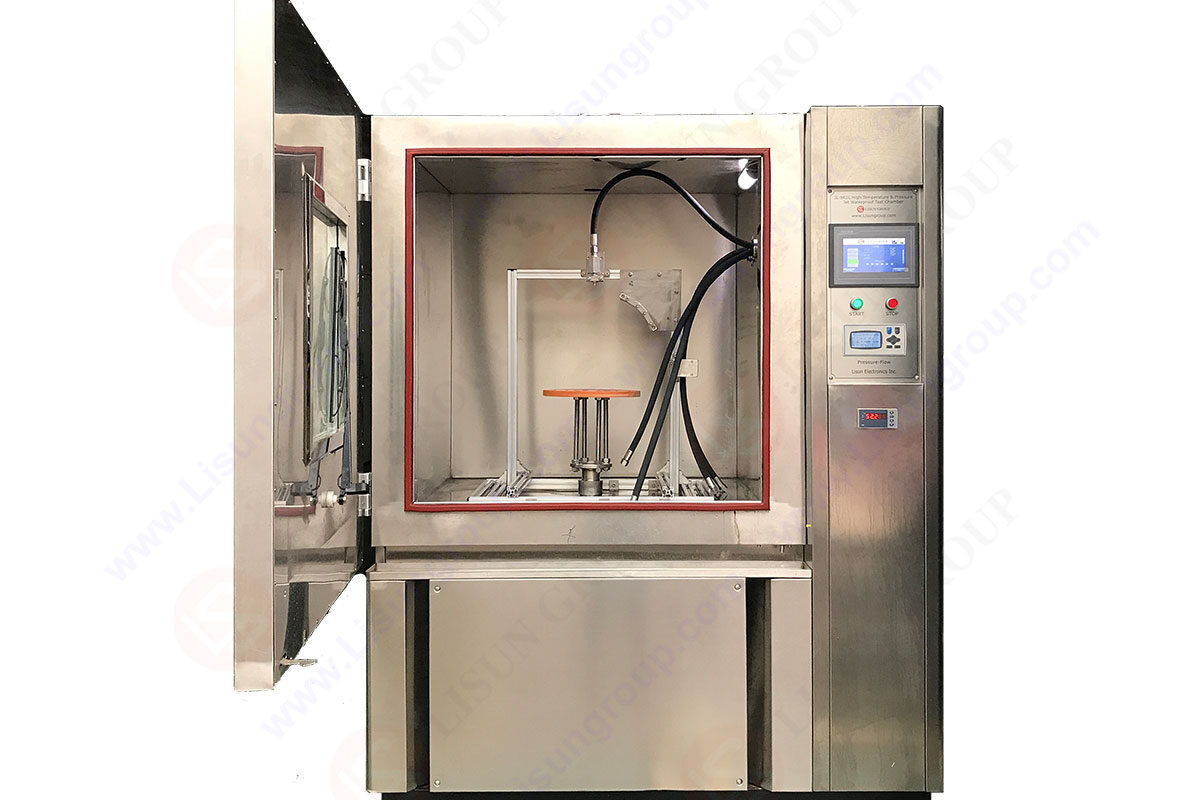

JL-9K1L High Temperature Pressure Jet Waterproof Test Chamber
