What material is the IPX12 drip test box made of

The IPX12 drip test box has the characteristics of circulating water in its box structure: for testing, it is both energy-saving and environmentally friendly. More importantly, customers no longer need to build a dedicated waterproof laboratory, which greatly saves initial investment costs. The housing of the IPX12 drip test box is made of high-quality stainless steel, and the box is made of blue and white paint, which is both elegant and beautiful. The right side of the outside of the box is also provided with a heat dissipation hole, which can effectively extend the service life of the equipment.

The top of the box in the test box is a raindrop plate, which is made of high resistance stainless steel material and evenly distributed with drip holes (each hole diameter is 0.4mm, designed in strict accordance with the GB4208 standard). The distance between the holes is 20mm. It can effectively simulate the rain climate, making the rain area of the test sample more comprehensive.

Below the drip hole is a turntable for placing test samples, which is also made of SUS304 stainless steel. The inclination of the turntable is 0 ° or 15 °, which can be manually adjusted. The distance between the test sample and the drip hole is 200 mm. The turntable can be rotated in three ways: one is forward and reverse rotation; One is to keep turning forward; Another type is adjustable interval rotation. The mode of rotation can be controlled by the operating system.

video

A transparent tempered glass window is installed on the box door of the IPX12 water drip testing instrument, and an LED lighting lamp is installed inside the box, in order to allow the operator to see the testing situation of the inner box more clearly. A sample power socket is installed directly below the LED illumination lamp. The power on/off time of the sample power can be controlled through the system panel, which is used to power on/off the sample when necessary during testing. The back of the test cabinet is equipped with a high-precision filter as standard, which can effectively filter impurities in the tap water and prevent the nozzles under the raindrop plate from being blocked by foreign matters. The filter element can be replaced regularly to ensure the water quality during testing.

The materials used for different components of the rain drop test chamber vary. It is equipped with a water quality filtration system, with a friendly control interface, simple operation, low noise design, and low carbon energy conservation:
1. Outer box material: All are processed and molded using high-quality (t=1.2mm) A3 steel plate CNC machine tools, and the surface of the shell is sprayed with plastic, making it more bright, clean, and beautiful
2. Inner box material: imported high-grade stainless steel (SUS304)
3. Thermal insulation material: rigid polyurethane foam+glass fiber
4. Door insulation material: glass fiber cotton
5. Rotary table: The table top is made of PVC hard plate (corrosion resistant)
6. The parts in contact with water are made of stainless steel or copper

Operating skills for IPX1 drip test box:
1. After plugging in the power switch, press the red button on the operation panel to start the control system; Then connect the water pipe to the IPX12drip test box;
2. The testing machine should be placed on a flat ground, and the movable casters at the four corners of the bottom of the testing machine should be fixed to prevent displacement of the testing machine during the testing process;
3. Place the sample on the turntable; Bind and fix the sample on the turntable with a binding tape to avoid displacement of the sample during the test, resulting in incorrect test values;
4. Adjust the height of the turntable so that the distance between the test sample and the needle is 200mm;
5. The turntable can be rotated during testing, with a tilt of 0 ° or 15 °; The turntable rotation speed of IPX1 is 1 r/min.
6. On the operation panel, select the IPX1 drip test program and start the IPX1 drip test box; Click the IPX1 rain drop test procedure on the operation panel. According to national standards, the total flow rate for IPX1 rain drop test is 1-5 mm/min (± 0.5 mm/min), and a 10 minute simulation test should be conducted;
7. After the test is completed, the system alarm should be cleared, and then the door of the box should be opened. Take out the sample and wipe the water droplets on the sample with a cloth. Take it to the testing department to detect whether there is any water ingress or other problems with the sample.

Operating tips for IPX2 drip test box:
1. After plugging in the power switch, press the red button on the operation panel to start the control system; Then connect the water pipe to the IPX12 rain drop test device;
2. The testing machine should be placed on a flat ground, and the movable casters at the four corners of the bottom of the testing machine should be fixed to prevent displacement of the testing machine during the testing process;
3. Place the sample on the turntable; Bind and fix the sample on the turntable with a binding tape to avoid displacement of the sample during the test, resulting in incorrect test values;
4. Adjust the height of the turntable so that the distance between the test sample and the needle is 200mm;
The turntable cannot be rotated during testing, but the specimen needs to be tilted 15 ° on two mutually perpendicular planes, with each of the four inclined planes tested for 2.5 minutes;
5. On the operation panel, select the IPX2 rain drop test program and start the IPX2 water drop tester; Click the IPX2 rain drop test procedure on the operation panel. According to national standards, the IPX2 rain drop test should undergo a 10min simulation test;
6. After the test is completed, the system alarm should be cleared, and then the door of the box should be opened. Take out the sample and wipe the water droplets on the sample with a cloth. Take it to the testing department to detect whether there is any water ingress or other problems with the sample.

Can other water sources be used for waterproofing testing?
When preparing for IP waterproofing testing, tap water should be used. Especially for IPX1 — 4 waterproof test device, the diameter of the test needle used in the test device is basically only 0.4mm. If a water source with debris is used, the nozzle of the testing machine will be blocked, affecting the test value.

JL-X waterproof test machine is according to IEC60529:1989 +A1:1999 +A2:2013 《Degrees of protection provided by enclosures(IP Code)》IEC60598, IEC60335 and IEC 60034-5, GB/T-2423.2GB4208GB7000.1. The JL-X includes the following test grades: IPX1, IPX2, IPX3, IPX4, IPX5, IPX6, IPX7 and IPX8 (Refer to page 51 of IEC60529). It is widely used in the authentication test organization for the products such as electrical & electronic products, LED luminaires as well as in the relevant quality control department for the waterproof detection of the enclosures protection grades.

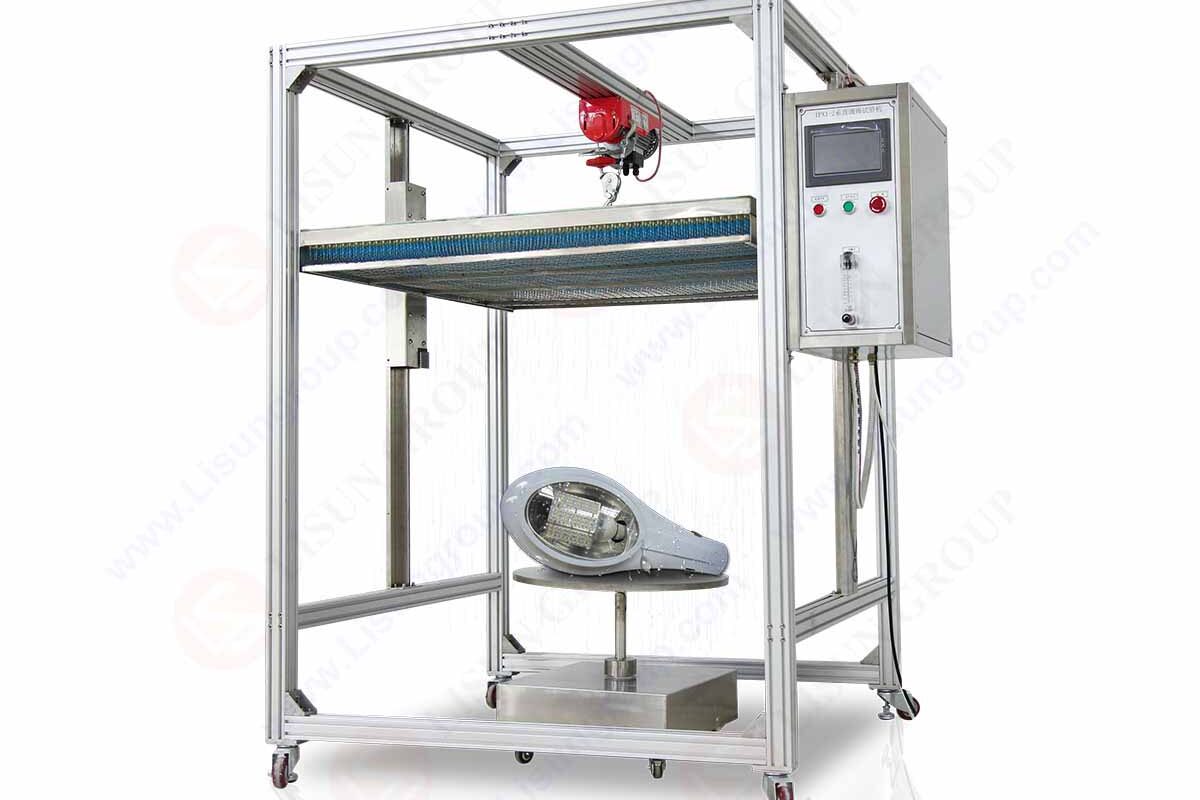

Drip Box (JL-12): The drip box is for IPX1 and IPX2 drip test. The drip box size is 800x800x45mm (LxWxH). The diameter of drip hole is 0.4mm. The distance between drip holes is 20mm. The sample can be over 150kg.
