What you need to know about the working of Spectroradiometers

Spectroradiometers are efficient devices. They assess products that use the concept of light for functioning. These devices allow you to make the best quality of your products. This strengthens the position of the producer in the market and helps to build their reputation as the best manufacturer in the market.

What is a Spectroradiometer?
Spectroradiometers are the upgrades of spectrometers. They work with the concept of light refraction. These instruments measure the intensity of light at various waves. At this point, the resulting spectral distribution is visible. This shows that each type of light source has a specific spectral distribution that indicates the wave ratios.

Spectral distributions are used to separate light’s qualitative properties. These include color ability and color rendering. In addition to the visible spectrum, redesigned sensors detect infrared and ultraviolet radiation. Spectral radiation is the output of radiation source. Many radiation sources and environmental factors produce different radiations. The spectra of radiation identify its sources.
Spectrometers detect light at a specified wave. The relative spectral radiation is detected by this range. Calibration of spectroradiometers ensures that spectrum measurements are in absolute units.

The Lab Spectroradiometer and the Field Spectroradiometer are two types of spectroradiometers. The Lab Spectroradiometer is for use in labs and when travelling. It comes in three wave ranges ranging from 300 to 1000 nm. The Field Spectroradiometer is for both field and lab measurements. This is available in two wave ranges ranging from 340 to 1100 nm.

How do Spectroradiometers Work?
Spectroradiometers are used to measure basic light levels. Radiance, irradiance, radiant flux, and radiant intensity are the values. These values put label to Color Rendering Indices (CRI), peak wave, and color purity. As a result, these devices provide more data than filter devices. One drawback is the longer measuring time when compared to filter devices.
Identifying the spectrum of the measuring sample is the critical measurement step here. This spectrum’s wave and intensity axis must also have absolute values. This spectrum can obtain the previously stated measurement data.

How does light travel through a spectroradiometer?
Light must first pass through a lens. This happens before the sample reaches the spectrometer. A slit lets light in the device. The size of the slit determines the intensity of light. This impacts the optical resolution of a spectroradiometer.
The concave mirror reflects this beam of light to a corresponding beam. This beam goes towards a grating. This is where the light dispersion takes place. This process produces divergent beams. A second concave mirror then reflects and concentrates the various waves away from the detector. The lens concentrates waves on sensor pixels. The entire system is wave calibrated.

This is to ensure that it works properly. It confirms the waves and links, specific waves to individual pixels. Signals detected by a pixel are then paired with a specific wave.

A second calibration step is required. This ensures that not every pixel reacts in the same manner to the real strength of a wave. It demands the right ratios for each pixel. Calibration against light sources is the second calibration stage. Among these is the NIST traceable light. The absolute values of the spectrum distribution of various light sources are on datasheets.

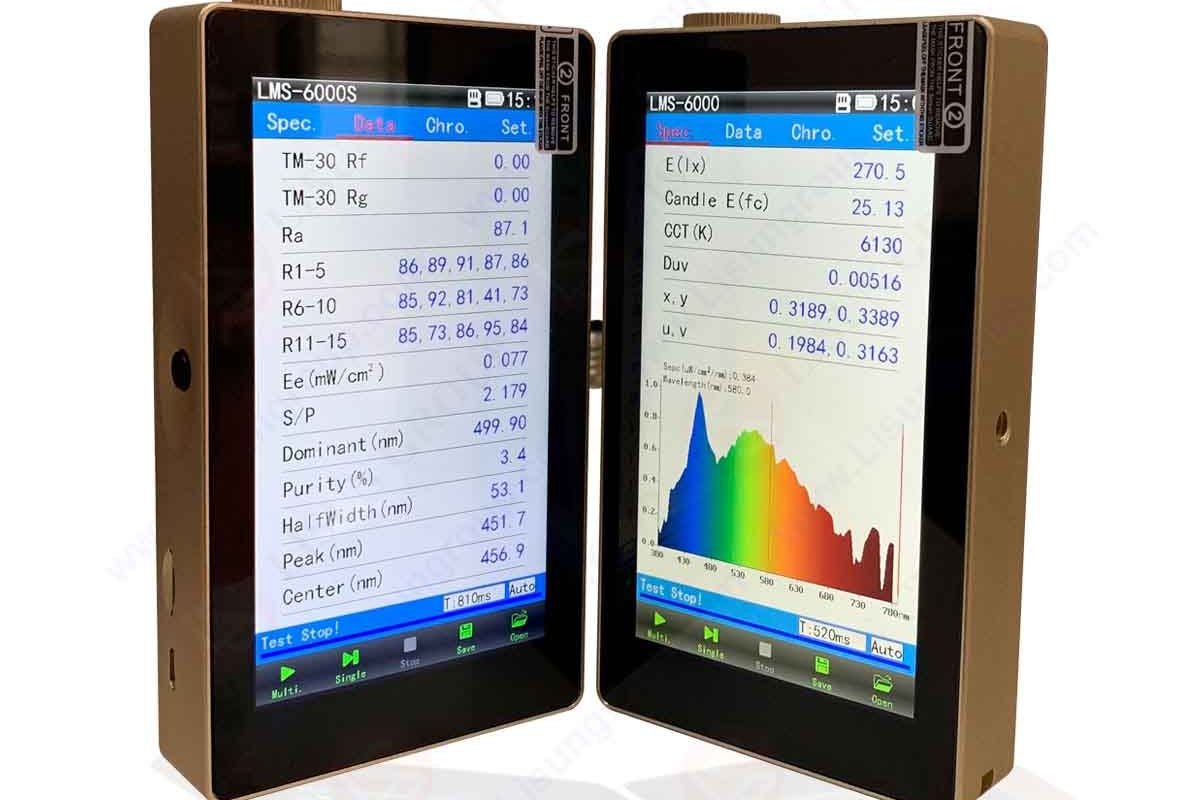

Portable CCD Spectroradiometer LMS-6000

The spectrometer is now ready for accurate and absolute measurements. This is determined by comparing known results from a typical light source. When the calibration process is complete, the gadget is referred to as a spectroradiometer. A spectroradiometer also covers the VIS range if it measures colorimetric, photometric quantities, and radiometric quantities.
Spectroradiometers function in the visible range of 380-780 nm. A software helps analyze this spectral data. It determines exact values for tri-stimulus values and other functions such as the PAR.

Spectrophotometers have lower measuring errors than light meters. This is a huge advantage when calculating these numbers. A spectrophotometer can display these readings with more precision. It can take longer than a colorimeter to get a measurement in a certain brightness level.

Working of an optical spectrometer
An optical spectrometer detects electromagnetic radiation. This happens through absorption, reflection, or scattering. Optical spectrometers study electromagnetic radiation that falls within the optical region of the electromagnetic spectrum. This light has waves in the ultraviolet, visible, and infrared ranges of the spectrum.

Light emission should be measured as a function of wave. This gets the most information. As a result, all optical spectrometers have a mechanism for wave selection. Optical filters isolate the wave range of interest in low-cost spectrometers. This also happens in situations which do not need accurate wave selection.

Light needs to be separated into its constituent waves. It is needed for precise wave selection and the generation of spectra. A diffraction grating is used as a dispersive element. It can be found in all modern spectrometers. It separates different colored light impacting the grating using constructive and destructive interference.

FAQs
Do the spectroradiometers made by LISUN adhere to international standards?
CIE 177, CIE-13.3, Optical-Engineering-49-3-033602, and IEEE are all fully complied with.

What makes a spectroradiometer different from a regular, simple spectrometer?
A spectroradiometer is different from a standard spectrometer. This is mainly because of its ability to assess the sensitivity of one or more radiometric units, its mechanical shutter for adjusting for darkness, its automatic adaptation of integration time to sample intensity level, specific measuring devices for certain radiometric values, and its software for calculating radiometric, photometric, and colorimetric values.
