Xenon Arc Lamp Accelerated Aging Test Chamber: Simulating Sunlight Spectrum for Material Durability Testing

Abstract

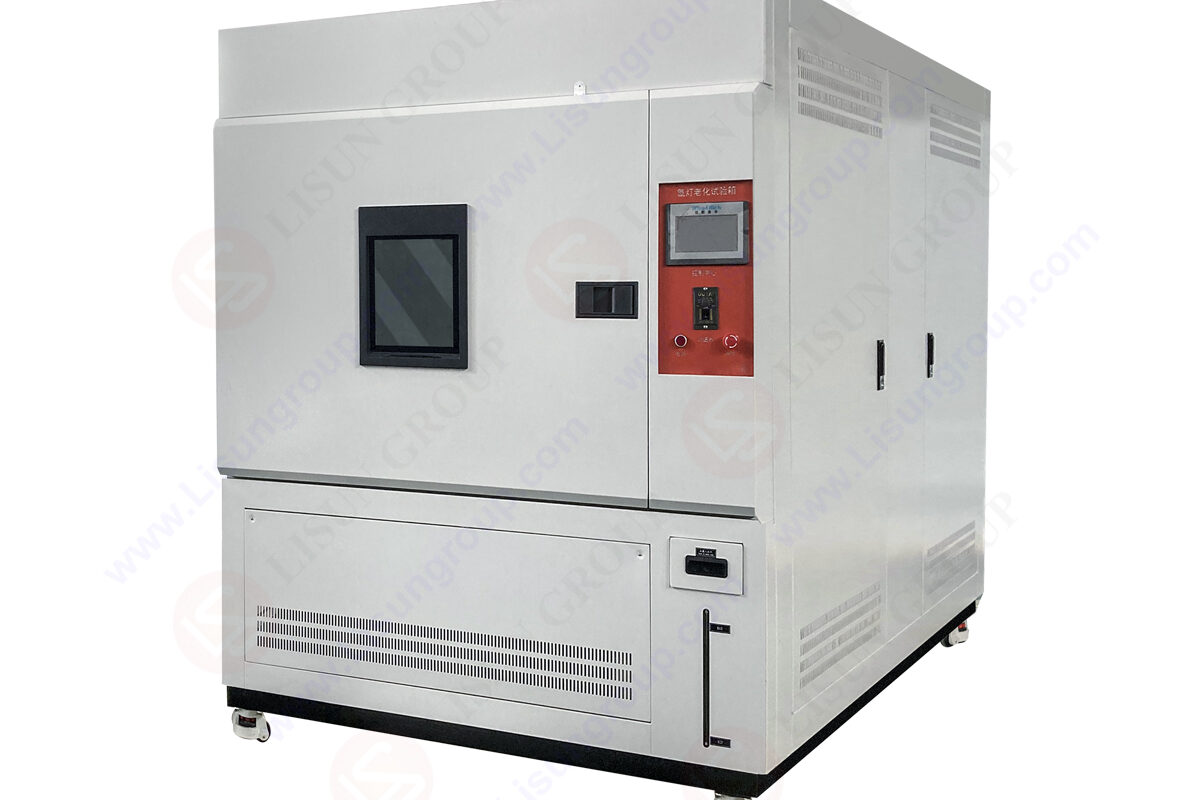

The Xenon Arc Lamp Accelerated Aging Test Chamber, such as the LISUN XD-80LS Xenon Lamp Aging Test Chamber, is a state-of-the-art tool designed to simulate the full sunlight spectrum, including ultraviolet (UV), visible, and infrared (IR) radiation. This technology is critical for testing material durability under different environmental conditions, such as exposure to sunlight, heat, and moisture. This paper explores the working principle, applications, and performance benefits of the Xenon Arc Lamp Accelerated Aging Test Chamber, with a detailed focus on the LISUN XD-80LS. Relevant data tables and operational insights are included to highlight the chamber’s capabilities.

1. Introduction
Modern industries require materials and products to endure various environmental conditions over their lifespans. Accelerated aging tests using xenon arc lamps provide a reliable way to predict product durability. The Xenon Arc Lamp Accelerated Aging Test Chamber recreates sunlight’s destructive components to simulate natural aging in weeks instead of years.

The LISUN XD-80LS Xenon Lamp Aging Test Chamber is specifically engineered to replicate solar radiation across UV, visible, and IR wavelengths. This makes it ideal for testing the effects of light and climate on polymers, coatings, paints, textiles, and other materials.

2. Working Principle of Xenon Arc Lamp Accelerated Aging Test Chamber

The chamber utilizes a xenon arc lamp to simulate sunlight. This lamp produces a continuous spectrum that closely matches natural sunlight, including:

• Ultraviolet (UV) radiation (280–400 nm): Causes degradation in materials like plastics, paints, and polymers.
• Visible light (400–780 nm): Responsible for fading of colors.
• Infrared (IR) radiation (780–1400 nm): Induces thermal stress.

Key features of the LISUN XD-80LS include water-cooled xenon lamps, precise irradiance control, and options for multiple test standards (e.g., ISO 4892-2, ASTM G155).

2.1 Chamber Design

The chamber comprises the following components:

• Xenon Arc Lamp: Emits the full spectrum of sunlight.
• Filters: Adjust spectral distribution to match specific environmental conditions.
• Temperature and Humidity Control: Simulates real-world scenarios such as rain or dew.
• Control System: Enables programming and monitoring of test cycles.

2.2 Operating Parameters

The operating parameters of the LISUN XD-80LS are detailed in Table 1.

Parameter	Specification
Lamp Type	Air-cooled xenon lamp
Wavelength Range	290–800 nm
Irradiance Uniformity	≤ ±10%
Temperature Range	RT +10°C to 70°C
Humidity Range	30%–98% RH
Standards Compliance	ISO 4892-2, ASTM G155, GB/T 16422.2

3. Applications of Xenon Arc Lamp Accelerated Aging Test Chamber

The Xenon Arc Lamp Accelerated Aging Test Chamber has extensive applications across industries:

3.1 Automotive Industry

• Paints and Coatings: Evaluating resistance to UV and temperature-induced cracking.
• Plastics: Ensuring dashboard materials resist fading and deformation.

3.2 Textiles

• Fabrics: Assessing UV resistance and colorfastness.
• Outdoor Equipment: Verifying durability under continuous sunlight.

3.3 Construction Materials

• Roofing: Testing material resistance to sunlight and heat.
• Windows: Evaluating UV stability of polymeric films and coatings.

3.4 Electronics

• Solar Panels: Checking photovoltaic material endurance against prolonged UV exposure.

4. Advantages of LISUN XD-80LS Xenon Lamp Aging Test Chamber

The LISUN XD-80LS Xenon Lamp Aging Test Chamber offers distinct advantages for accurate material testing:

• Precision Testing: Advanced irradiance controls ensure repeatable test conditions.
• Compliance with Standards: Adheres to international protocols for reliability.
• Environment Simulation: Mimics natural and extreme climatic conditions.
• Cost Efficiency: Reduces long-term product failures through reliable pre-testing.

4.1 Data Comparison

Table 2 demonstrates the results of a typical test using the LISUN XD-80LS, showing material performance before and after accelerated aging.

Material	Test Duration	UV Resistance (ΔE Value)	Tensile Strength (% Retention)
Coating A	500 hours	2.5	85%
Plastic B	1000 hours	5	75%
Textile C	800 hours	3	90%

5. Testing Procedure
The following steps outline a typical test procedure using the LISUN XD-80LS:

• Preparation: Clean and prepare material samples.
• Programming: Set test parameters (e.g., irradiance, temperature, humidity).
• Testing: Run tests for a defined duration, mimicking environmental conditions.
• Evaluation: Analyze material changes such as discoloration, loss of strength, or surface damage.

6. Case Study: LISUN XD-80LS in Action

6.1 Objective
To assess the UV resistance of automotive paint coatings.

6.2 Methodology
• Sample Size: 10 paint-coated panels.
• Test Duration: 1000 hours.
• Parameters: UV irradiance at 0.55 W/m², 65% RH, and 50°C temperature.

6.3 Results
Table 3 shows the outcomes of the study.

Sample ID	Initial Gloss (%)	Final Gloss (%)	ΔE Value
Panel 1	95	80	3.2
Panel 2	90	78	2.8

7. Conclusion
The Xenon Arc Lamp Accelerated Aging Test Chamber, exemplified by the LISUN XD-80LS, is indispensable for predicting material durability in real-world conditions. Its ability to simulate the full solar spectrum ensures comprehensive and reliable test results, making it an essential tool for quality assurance in various industries.

References
LISUN Group. (2024). XD-80LS Xenon Lamp Aging Test Chamber.
ISO 4892-2:2013. Methods of Exposure to Laboratory Light Sources.
ASTM G155:2021. Standard Practice for Operating Xenon Arc Light Apparatus.
