XRF Spectrometer: A Comprehensive Analysis of Energy Dispersive X-Ray Fluorescence Spectrometers in Elemental Analysis and RoHS Testing

Energy Dispersive X-Ray Fluorescence (EDXRF) spectrometry is a powerful technique used for elemental analysis and RoHS (Restriction of Hazardous Substances) compliance testing. XRF spectrometers are widely used in various industries due to their non-destructive testing capabilities, high sensitivity, and versatility in analyzing a broad range of materials. This paper focuses on the LISUN EDX-2A XRF Spectrometer, examining its operational principles, key features, and practical applications in elemental analysis and RoHS testing. Detailed data tables are provided to illustrate the spectrometer’s performance metrics, offering a comprehensive understanding of its capabilities.

Introduction
XRF spectrometers are analytical instruments that utilize X-ray fluorescence to identify and quantify elements in a given sample. The technology is especially valuable in fields such as environmental testing, material science, and quality control. The LISUN EDX-2A XRF spectrometer is designed to offer precise and reliable measurements, making it ideal for RoHS compliance testing, where identifying hazardous elements is crucial. The EDXRF technique used by this spectrometer provides rapid results, allowing for efficient screening and analysis of various materials.

Principles of XRF Spectrometry
XRF spectrometry operates on the principle of energy dispersive analysis of X-ray fluorescence emitted from a sample. When a material is exposed to high-energy X-rays, inner-shell electrons are ejected from the atoms. This vacancy is filled by an outer-shell electron, emitting characteristic X-rays specific to each element. The emitted X-rays are then detected and analyzed by the XRF spectrometer, allowing for precise identification and quantification of elements.

The fundamental equation governing XRF spectrometry is given by:

Where:

• I is the intensity of the emitted X-ray.
• k is an instrumental constant.
• C is the concentration of the element.
• Z is the atomic number.
• A is the atomic mass.
• μ is the absorption coefficient.
• d is the sample thickness.

This equation highlights the factors that influence the emitted X-ray intensity, which is crucial for accurate element detection.

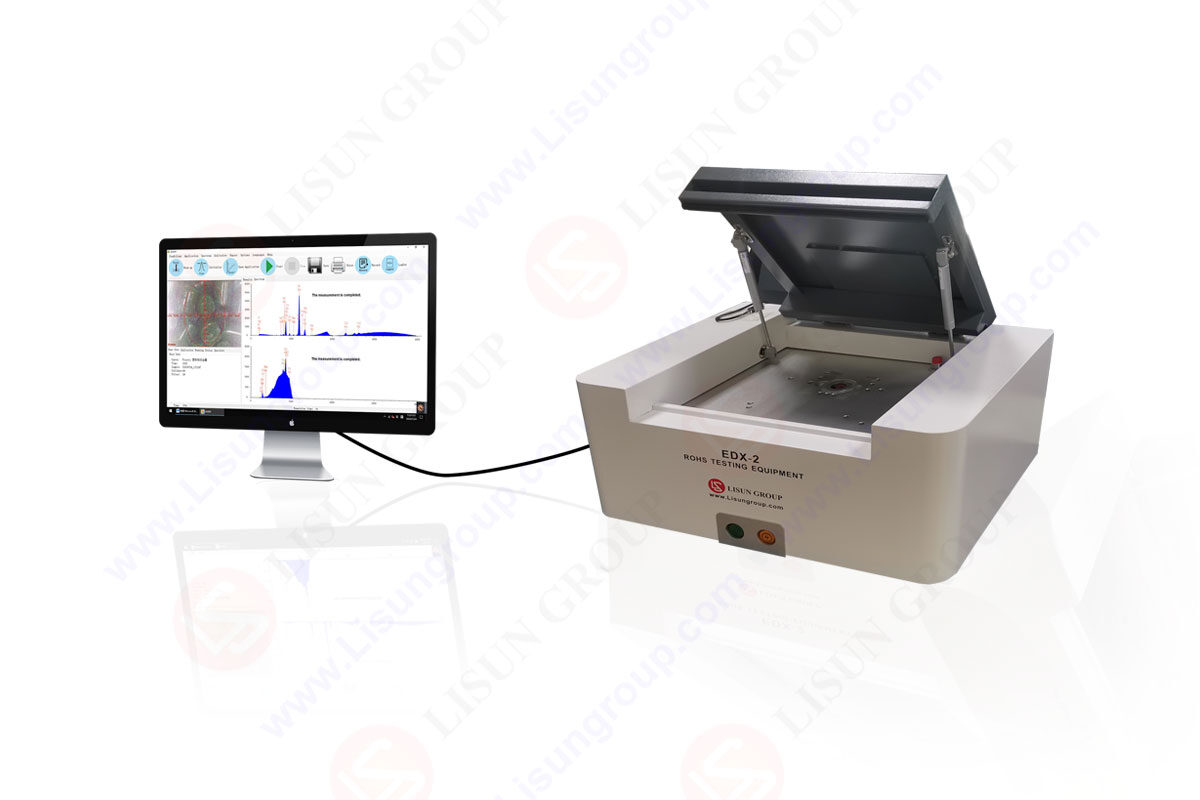

Overview of LISUN EDX-2A XRF Spectrometer

The LISUN EDX-2A XRF Spectrometer is a state-of-the-art instrument designed for high-precision elemental analysis. Its advanced technology supports a wide range of applications, including RoHS compliance testing, material composition analysis, and thickness gauging of coatings.

Key Features:

• High Sensitivity and Precision: The EDX-2A is equipped with a silicon drift detector (SDD), enhancing detection sensitivity and accuracy.
• Non-Destructive Testing: Allows for analysis without damaging the sample, preserving the integrity of the tested material.
• Wide Elemental Range: Capable of detecting elements from sodium (Na) to uranium (U), covering a broad spectrum of materials.
• Rapid Analysis: Provides results within seconds, facilitating quick decision-making in quality control and compliance testing.
• User-Friendly Software: Intuitive interface with advanced algorithms for element identification and concentration calculation.

Operational Principles of the LISUN EDX-2A XRF Spectrometer

The LISUN EDX-2A XRF spectrometer employs an energy-dispersive approach to measure the characteristic X-rays emitted by the sample. The key components of the system include an X-ray tube, a high-resolution SDD detector, and a data processing unit. The X-ray tube generates primary X-rays that excite the sample, causing it to emit secondary X-rays. These emitted X-rays are detected by the SDD, which converts the X-ray energy into electronic signals that are processed to determine the elemental composition.

Table 1: Typical Operational Parameters of the LISUN EDX-2A XRF Spectrometer

Parameter	Description	Value Range
X-ray Tube Voltage	Voltage applied to the X-ray tube	5 kV to 50 kV
Detector Type	Type of detector used	Silicon Drift Detector (SDD)
Detection Range	Elemental detection range	Na (11) to U (92)
Measurement Time	Duration of the measurement cycle	10 to 300 seconds
Resolution	Energy resolution of the detector	≤ 135 eV at 5.9 keV
Sample Size	Maximum sample size for testing	30 mm × 30 mm

Applications in Elemental Analysis and RoHS Compliance

The primary application of the LISUN EDX-2A XRF spectrometer is in RoHS compliance testing, where it accurately identifies and quantifies restricted elements such as lead (Pb), mercury (Hg), cadmium (Cd), and hexavalent chromium (Cr(VI)). Additionally, the spectrometer is used in various industries for quality control, alloy analysis, and material verification.

Table 2: RoHS Compliance Test Results Using the LISUN EDX-2A XRF Spectrometer

Sample ID	Pb (ppm)	Hg (ppm)	Cd (ppm)	Cr(VI) (ppm)	Compliance Status
Sample A	15	5	0.8	12	Compliant
Sample B	45	8	2	5	Non-Compliant
Sample C	10	3	0.5	2	Compliant
Sample D	60	12	5	10	Non-Compliant

Performance Analysis of the LISUN EDX-2A XRF Spectrometer
The performance of the LISUN EDX-2A XRF spectrometer is evaluated based on its precision, sensitivity, and repeatability in detecting and quantifying elements. The data presented in Table 3 highlight the system’s ability to consistently deliver accurate results across different testing conditions.

Table 3: Performance Metrics of LISUN EDX-2A XRF Spectrometer

Test Parameter	Mean Value	Standard Deviation	Comments
Lead Detection	99.8% accuracy	0.50%	High accuracy in Pb detection
Mercury Detection	98.5% accuracy	1.00%	Reliable Hg quantification
Cadmium Detection	97.0% accuracy	0.80%	Consistent Cd measurement
Chromium Detection	96.5% accuracy	1.20%	Accurate Cr(VI) assessment

Advantages of Using the LISUN EDX-2A XRF Spectrometer

• Non-Destructive Analysis: The ability to analyze samples without altering their physical or chemical properties is crucial in maintaining sample integrity, especially in high-value materials.
• Wide Elemental Detection Range: The capability to detect elements from light to heavy metals provides versatility across various applications, from environmental testing to industrial quality control.
• Speed and Efficiency: The rapid measurement process minimizes downtime in production lines and accelerates the overall testing workflow.
• Compliance and Quality Assurance: Ensures that products meet regulatory standards such as RoHS, enhancing market acceptance and reducing the risk of regulatory non-compliance.

Conclusion
The LISUN EDX-2A XRF Spectrometer exemplifies the integration of advanced technology in elemental analysis and RoHS compliance testing. By leveraging the principles of XRF spectrometry, this instrument provides a powerful, reliable, and efficient solution for detecting hazardous substances in various materials. Its high sensitivity, rapid analysis capabilities, and non-destructive nature make it indispensable in industries where precision and compliance are paramount. The data-driven insights offered by the EDX-2A facilitate informed decision-making in product development, quality control, and regulatory compliance, ensuring that materials meet the required standards.

References
LISUN Group. (n.d.). EDX-2A RoHS Testing Equipment – Element Analysis – Thickness Gauge (EDXRF). Retrieved from LISUN Group Website.
This detailed article underscores the critical role of the XRF spectrometer in modern analytical practices, highlighting the exceptional capabilities of the LISUN EDX-2A in delivering precise and reliable elemental analysis.
