Product No: DC3005S

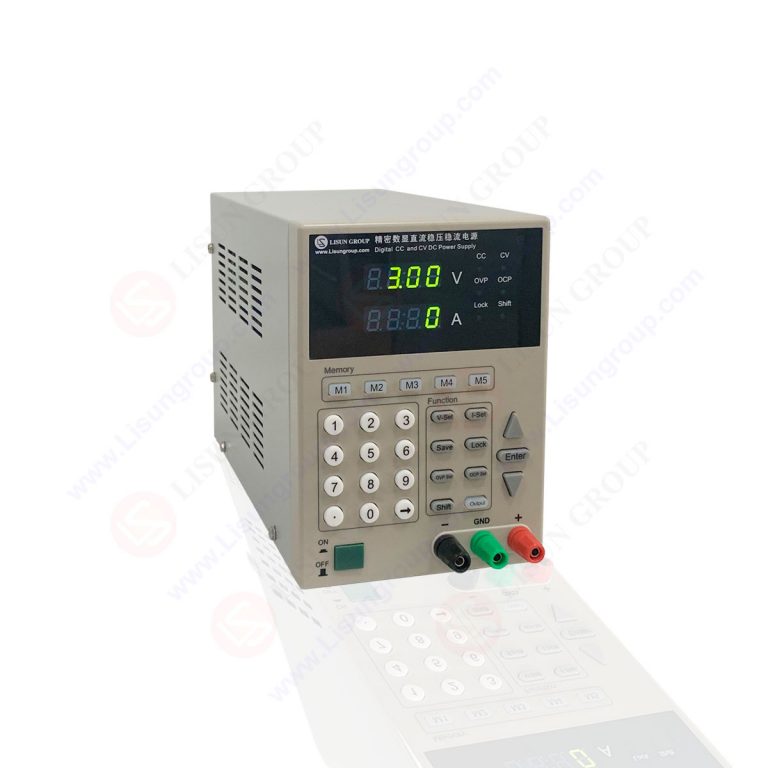

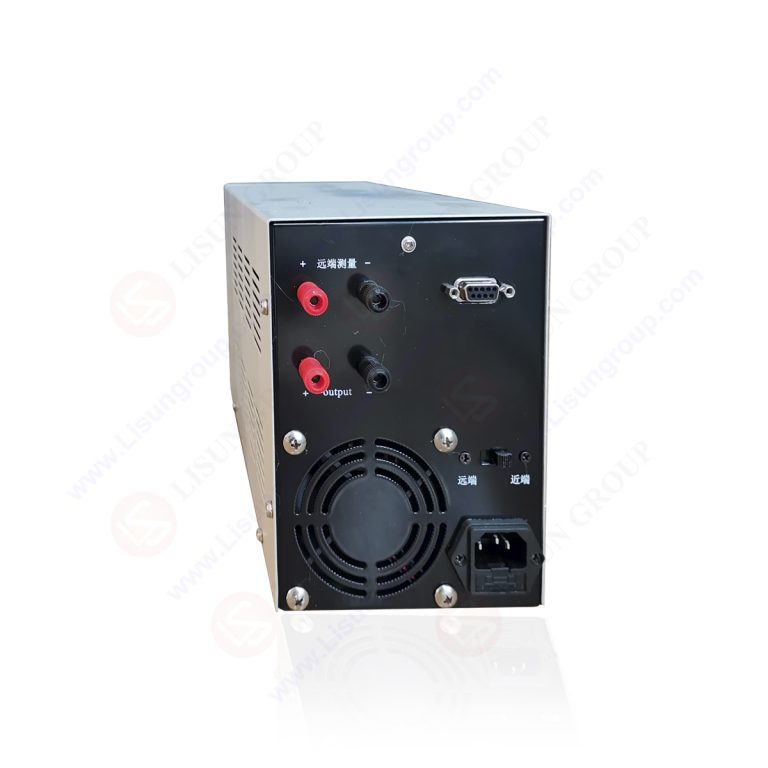

The DC3005S Adjustable Digital Constant Current and Constant Voltage DC Power Supply is with high stability and high precision which can reach 0.001A and 0.001V. The voltage and current can be adjustable, it can output costant current (CC) or constant voltage (CV). It is suitable to supply DC Power for the standard lamps and other DC samples such as LEDs. The DC3005S series also can be used in LPCE-3 CCD Spectroradiometer Integrating Sphere Compact System.
Specification:
LISUN Model | DC3005S | DC3010S | DC6005S | DC3050B | DC12030B | DC50010B |
Max. Output Power | 150VA | 300VA | 300VA | 1500VA | 3600VA | 5000VA |
Max. Output Voltage/ Current | 30V/5A | 30V/10A | 60V/5A | 30V/50A | 120V/30A | 500V/10A |
Voltage Resolution | 0.001V(0~60V) | 0.01V(<100V); 0.1V(>100V) | ||||
Voltage Accuracy | ±(0.02% rdg+0.05%rng+1digital) | 0.1V | ||||
Current Resolution | 0.001A | 0.01A(<100A);0.1A(>100A) | ||||
Current Accuracy | ±(0.05% rdg+0.05%rng+1digital) | 0.1A |
P.S. Other voltage and current can be design according to customer’s requirements.
