High Frequency Power Supply

The HFP-800 High Frequency Power Supply works with LPS-3 (Lamp Preheat Assistant Source) and RB-3 (Adjustable Resistance Ballast) to be an IEC Standard Test System which used to test the high frequency fluorescent Lamp such as T5 Tube. Please visit this page to view How to Measure the High Frequency Fluorescent Lamp.

Standard:
ANSI-ANSLG-C78.81 “American National Standard for electric lamps – Specifications for the Chormaticity of Solid State Lighting Products”
ANSI-ANSLG-C82.11 “Lamp Preheat Assistant Source Auxiliary Power Supply”
IEC62776 “Double – capped LED Lamps designed to retrofit linear fluorescent lamps – Safety specifications”
IEC 60929:2015/GB/T-15144 “AC and/ or DC-supplied electronic control gear for tubular fluorescent lamps – Performance requirements”
IEC 60901 (GB/T17262) “Single-Capped Fluorescent Lamps – Performance Requirements”
IEC 60081 (GB/T10682) “Double-capped fluorescent lamps – Performance specification”

Feature:
• Program control output voltage and easy operation
• Set data easily with a memory chip, unnecessary to set for many times
• Display on four windows, each window shows one parameter independently
• Application for all kinds fluorescent lamps such as 50Hz/60Hz T8/T12 tube or 25KHz T5 Tube
• It is according to double-ended fluorescent lamps adoptting the IEC 60081 (GB/T10682) and the single-ended fluorescent lamps adoptting the IEC 60901 (GB/T17262)

Specification:
• Range for output voltage: 10~600V (Adjustable)
• Range for output current: 0~0.600A
• Range for output frequency: 25KHz
• Range for output capacity: 0~300W (Special request to 500W)
• Range for Voltage stability: 0.5%/30 minutes
• Range for frequency stability: 0.02%

LISUN HFP-800 High Frequency Power Supply – After Sales Questions and Answers.
LISUN HFP-800 High Frequency Power Supply were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.

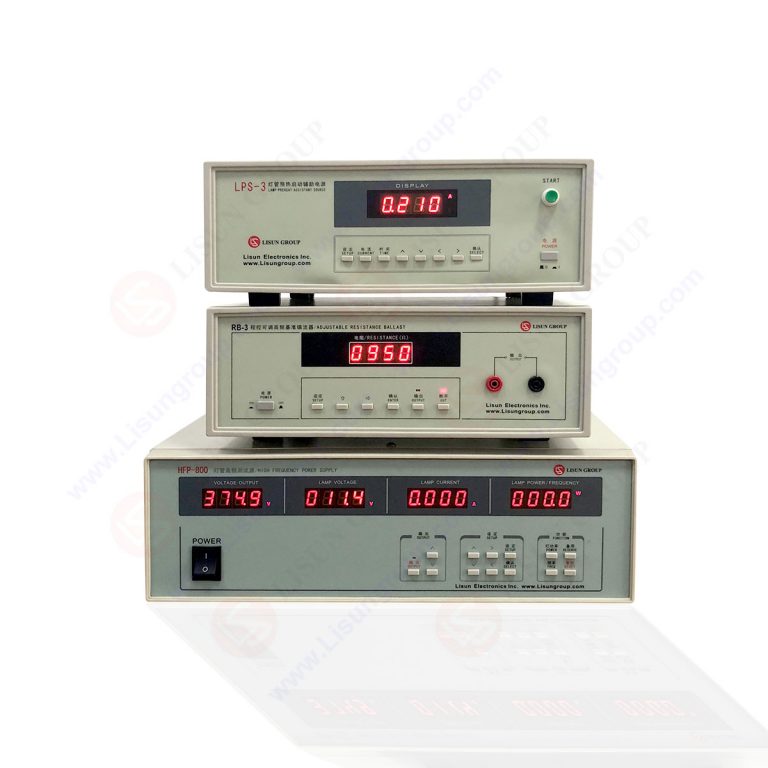

HFP-800 High Frequency power supply and RB-3 Adjustable Resistance Ballast for High Frequency Fluorescent Lamp Test
