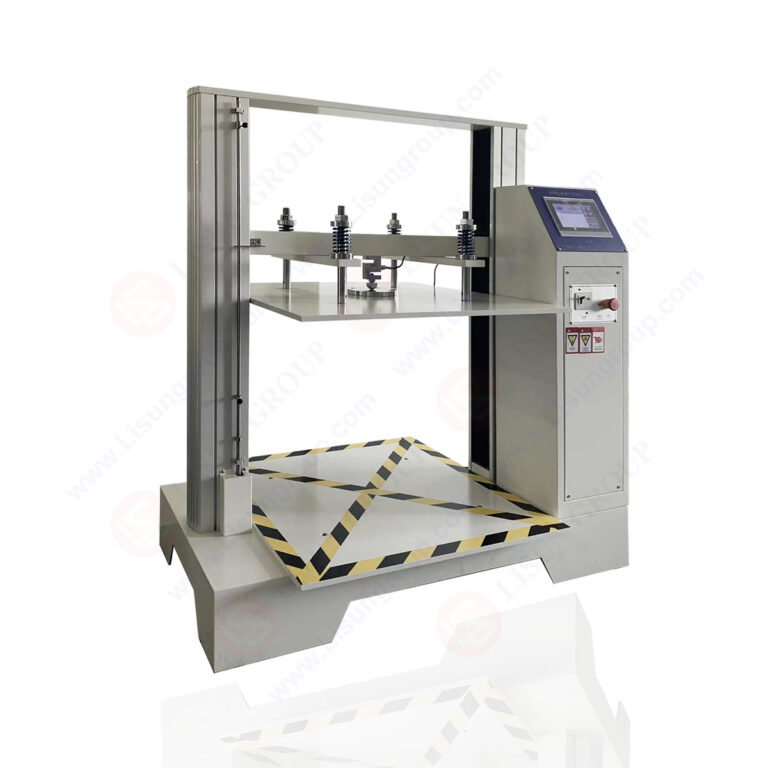

Box/Carton Package Compression Tester

Product No: LS-PUSH-600

Leave a Message

=
  • Description
  • LISUN LS-PUSH-600 Box/Carton Package Compression Tester is designed for compression and stacking tests on various packaging containers and cartons. The results of these tests can serve as critical references for determining the stacking height of finished product packaging in factories or for designing packaging boxes. This tester fully complies with national and international standards such as TAPPI-T804, JIS-20212, GB 4857.3.4-2008, ASTM-D642:2005 and ISO 12048:2020. It is an ideal testing and research device for factories, technical supervision departments, inspection agencies, research institutes, and academic institutions.

    Standard:
    TAPPI-T804 “Compression test of fiberboard shipping containers”
    ASTM-D642 “Standard Test Method for Determining Compressive Resistance of Shipping Containers, Components, and Unit Loads”
    ISO 12048 “Packaging — Complete, filled transport packages — Compression and stacking tests using a compression tester”
    JIS-20212
    GB 4857.3.4

    Feature:
    The machine structure is designed with high-precision, low-friction, gapless double ball screws and guide columns, enclosed in a high-grade paint-treated casing, which enhances load efficiency and structural rigidity. The control system utilizes a high-response frequency AC motor to ensure high transmission system efficiency, smooth operation, low noise, and speed accuracy within ±0.2%.

    Specification:
    • Force Units: Switchable between KG, LB, and N
    • Report Items: Serial number, peak value, average value, set holding pressure value, memory capability
    • Safety Features: Overload protection, overpressure protection, limit protection
    • Structure: Servo motor, ball screw

    LISUN Model LS-PUSH-600 LS-PUSH-800 LS-PUSH-1000
    Compressed Space Size 600*600*600mm 800*800*800mm 1000*1000*1000mm
    Compressed Weight 0~1000KG 0~2000KG
    Compressed Speed 12.7mm/min (0-250mm/min adjustable)
    Accuracy ≤0.5%
    External Size 1300*600*1520mm 1500*800*1620mm 1700*1000*2120mm
    Working Power 220V±10%, 50/60Hz


    ASTM-D642
