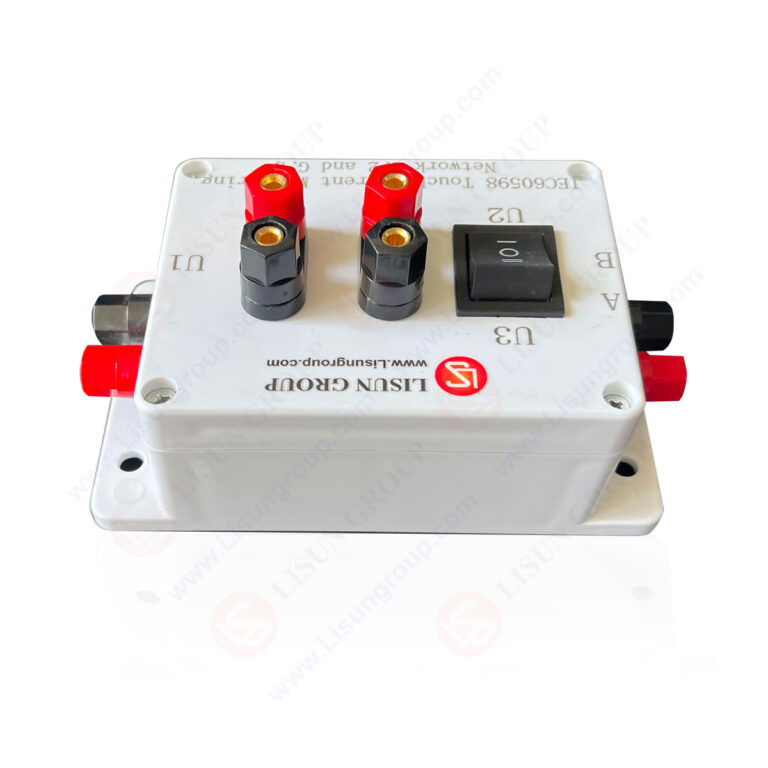

IEC 60598:2024 Touch Current Measuring Network G.2 and G.3

G.2 and G.3 Measuring network, touch current weighted for perception or reaction and let-go, and is designed according to IEC 60598-1:2024 Figure G.2 and Figure G.3, IEC 60990:2016 Clause 5.1.1 Figure 4 and Figure 5. The two figures are integrated into one temperature measuring box.

Note: It should work together with LISUN MNTC-G1 and MNTC-G4.

Standard:
IEC 60598-1 “Luminaires – Part 1: General requirements and tests” Figure G.2 and Figure G.3
IEC 60990 “Methods of measurement of touch current and protective conductor current” Clause 5.1.1 Figure 4 and Figure 5

The standard requirements are as follow:

IEC 60598: 2014 Figure G2 And G3

IEC60990 Figure 4 And Figure 5
