Product No: LWMF-1

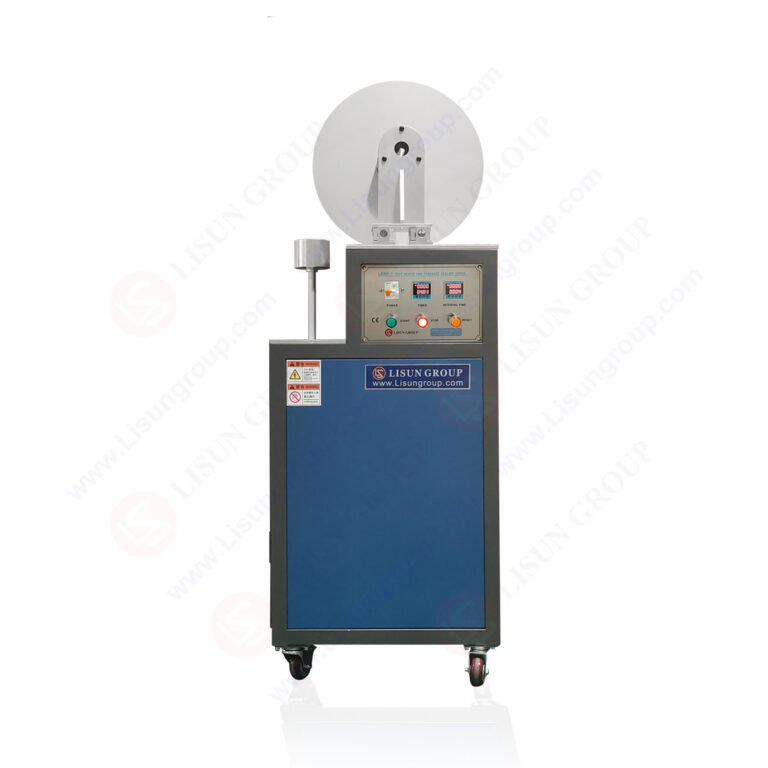

LWMF-1 Screwed Glands Torque Test Device fully meet IEC 60598-1:2024 Clause 4.12.5 (GB 7000.1:2023 Clause 4.12.5), IEC 60884-1:2022 Clause 24.7 (GB/T 2099.1-2023 Clause 24.7), IEC 61058-1:2018 Clause 19.2.5 (GB/T 15092.1-2020 Clause 19.2.5) and IEC 60669-1:2017 Clause 20.3 (GB/T 16915.1-2024 Clause 20.3) are designed and manufactured. It is used to test the installation reliability of the screwed glands of the electrical product. The Screwed Glands Torque Test Device uses a fixed pulley mode to apply a torque to give a metal rod through the φ500mm outer circle, which improves the trouble of traditional torque through the wrench. Both metal and molded plastic glands can be tested.
Specification:
| LISUN Model | LWMF-1 | LWMF-2 |
| Operation Method | Electric lifting (test time: 0 ~ 59min59s) | Manual operation |
| Rigid Steel Sheet | 500mm | |
| Sample loading clamps | two sides of the mount, fixed on the disc, holding the other end to be adjusted | |
| Metal stick diameter | ф5, ф7, ф9, ф10, ф12, ф14, ф16, ф18, ф20, ф22, ф25, ф30mm | |
| Weights | 2.5Nm, 3.75Nm, 4nm, 5.0 Nm, 6.25Nm, 7.5 Nm, 10.0 Nm, 10.0 Nm, 10.0 Nm (Test 1.5~30N.m torque) | |
IEC 60884-1 Clause 24.7
Tags：LWMF-1 , Test Device for Threaded Sealing Cover
