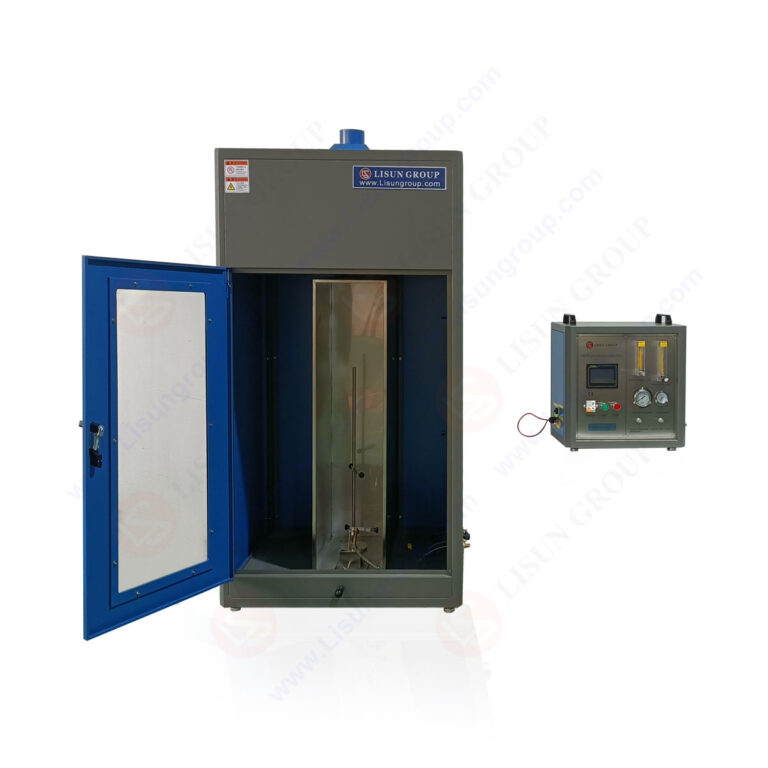

Wire Cable Flame Tester

The RSB-WC Wire Cable Flame Tester is used to test and evaluate the combustion characteristics of a single insulated wire or cable according to IEC 60227-1:2024 (GB/T 5023.1-2008), IEC 60332-1-1:2004 (GB/T 18380.11-2022),  IEC 60332-1-2:2004 (GB/T 18380.12-2022), IEC 60332-1:2004 (GB/T 18380.1-2022) and IEC 60335-1:2023 (GB 4706.1-2024). The combustion chamber of the test equipment is made by iron plate spraying and it is resistant to smoke corrosion. It is a highly intelligent device with digital time display, automatic control of test procedures, easy to use and stable and reliable.

Specification:

• Gas: High purity propane gas (Prepared by user)
• The tested wire/cable length: 600±25mm
• The outer diameter of the tested wire: the conductor diameter is greater than 0.8mm or the cross-sectional area is greater than 0.5mm2
• The flame should burn the sample continuously, and the flame burning time T can be set in the range of 0.1~999.9 seconds
• Gas flow range: 0.1-1L/min; Air flow range: 3-30L/min (Note: Digital gas flow meter with high accuracy is optional with extra cost)
• Standard power of combustion burner: 1kW

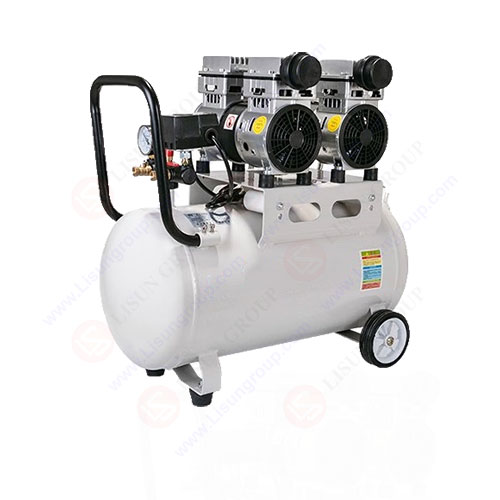

• User need to prepare air compressor

IEC 60332-1-1
