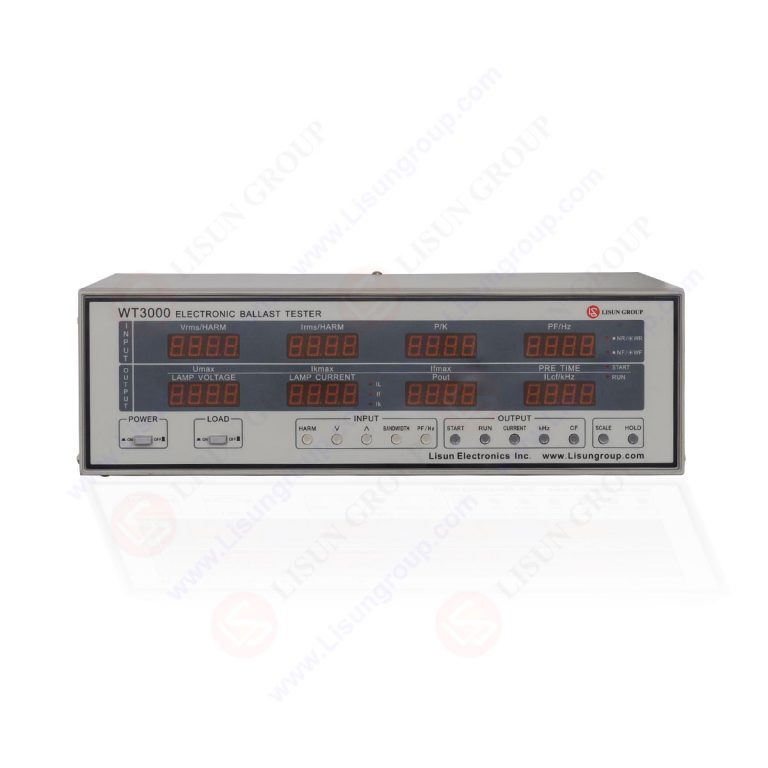

Electronic Ballast Analyzer

Product No: WT3000

Leave a Message

=
  • Description
  • The WT3000 electronic fluorescent ballast testing equipment meets the latest requirements for electronic ballasts in international standards IEC 60929, IEC 60969, IEC 61000-3-2, GB/T15144-2005 and GB/T17263-1998.

    Standard:
    IEC 60929 /GB/T15144-2005 “AC and/or DC-supplied electronic control gear for tubular fluorescent lamps – Performance requirements”
    IEC 60969 “Self-ballasted compact fluorescent lamps for general lighting services – Performance requirements”
     IEC 61000-3-2/ GB/T-17625.1 “Amendment 1 – Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤16 A per phase)”

    Measurement:
    • Input: Vrms, Lrms, W, PF, Hz, Phasic angle, total harmonic and 0-39 component of harmonic
    • Output: Lamp voltage, Lamp current, Filament current, Guided cathodic current, Lamp power, crest factor and oscillatory frequency, single high frequency analysis
    • Startup: lamp voltage, lamp current, filament current, guided cathodic current curve and parameter, preheating time

    Specifications:
    • It has 8 windows to display each parameter of input and output characteristics
    • Frequency response for testing input current up to 1MHz, suitable for precise testing of various kind of electronic ballast
    • WT3000 has expanding analysis for envelope wave.
    • Symmetry analysis for envelope wave’s crest factor of lamp current
    • Sampling at ultra-high speed, dynamic analysis single frequency curve, highest sampling frequency is up to 10MHz
    • Portable with built-in chip micro-processor, particular suitable for development and spot production
    • RS-232C standard interface can be connected to PC, English version software can run in WinXP or Win7
