Capacitor Meter

Product No: LS6515EN

Leave a Message

=
  • Description
  • LS6515FN type large capacitor meter is a kind of high-precision instrument specially for the test of large capacitance capacitors. In addition to testing capacity and loss, it can also test the series equivalent resistance ESR and impedance of capacitors, which can meet the quality assurance of production line, purchase inspection and laboratory high precision measurement requirements.

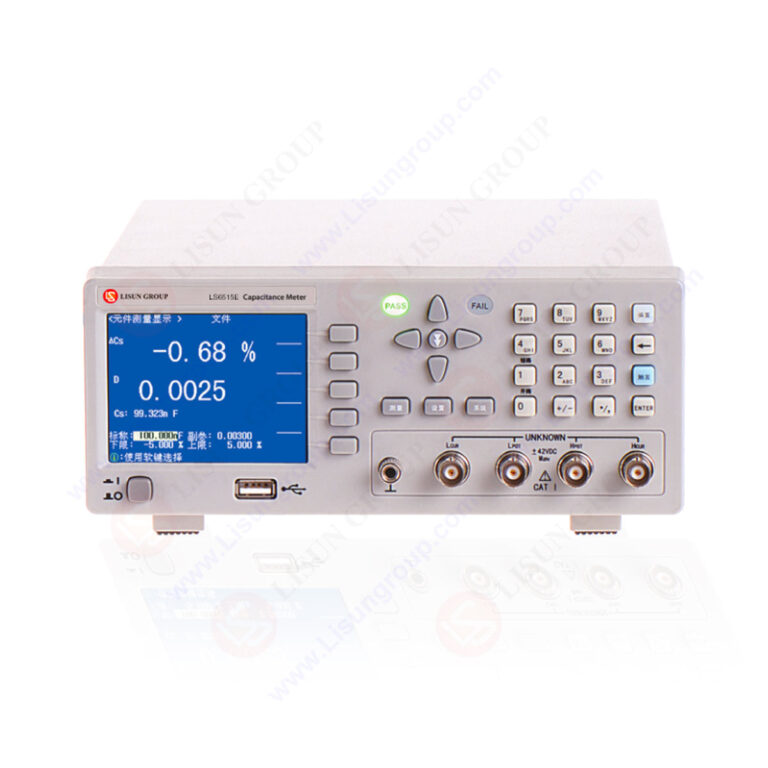

    LS6515EN capacitor meter is a kind of high precision instrument specially designed for capacitor testing in high speed electrolytic capacitor braiding machine.

    LS6517N dual frequency tester is a high-precision, wide test range of capacitor parameter measurement instrument, its advantage is that it can simultaneously measure C, D, R, Z and other parameters of two frequencies, can simultaneously meet the requirements of capacitor test manufacturers 1kHz test capacitance, 100kHz test loss, and standard HANDLER interface support multi-file sorting. It is widely used in the production of automation equipment, which greatly improves the test efficiency.

    Model

    LS6515FN

    LS6515EN

    LS6517N

    Test frequency

    100、120(Hz)

    50、60、100、120、1k、10k、40k、50k、60k、100k(Hz)

    Test parameters

    C、R、|Z|、D

    Test level

    1Vrms

    10mV-2Vrms

    Basic accuracy

    0.25%,Accuracy table shall prevail

    0.05%, Accuracy table shall prevail

    Test speed

    Fast:10 Times/Second、Medium:5  Times/Second、Slow:1.5 Times/Second

    Fast:40 Times/Second、Medium 18 Times/Second、Slow 6 Times/Second (Frequencies above 1kHz)

    Display

    range

    R

    0.01 mΩ~10kΩ

    0.1 mΩ~99.999MΩ

    0.01 mΩ~99.9999MΩ

    C

    0.01μF~16F

    0.01pF~9.9999F

    0.00001pF~9.99999F

    D

    0.0001~9.999

    0.00001~9.99999

    Signal source output

    impedance

    30Ω、100Ω

    Comparator

    BIN0~BIN3、NG、Pass、Fail

    PASS、HI、LOW(PASS/FAILLED)、Buzzer

    Range mode

    Automatic and hold

    Trigger mode

    Internal, manual, external

    Calibration function

    Open/short circuit, full frequency clear, dot frequency clear

    Equivalent circuit

    Series and parallel

    Ports

    RS232C、UsbHost、USB Device

    RS232C、UsbHost、USB Device、Handler、GPIB(Optional)

    HANDLER

    DB9

    Working temperature

    and humidity

    0℃~40℃,Relative humidity≤75%

    Working power

    100~120 V AC/198~242 V AC

    46~64 Hz,Power>50 VA

    Volume(W*H*D)

    216mmx*87mm*275mm

    310mm*115mm*315mm

    Net weight

    2.5Kg

    4.5Kg
