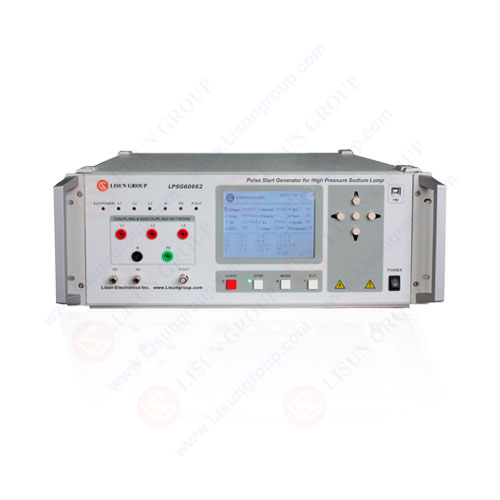

Product No: LPSG60662
The LPSG60662 pulse start generator is for special lights start-up test such as high pressure sodium lamp. It is according to IEC60662: 2011 and GB/T13259-2005 standard requirements.
Standard:
IEC60662: 2011 /GB/T13259-2005 “High-pressure sodium vapour lamps – Performance specifications”
Specification:
Wave Generator | Superimposed on the sine wave pulse discharge waveform |
Open Circuit Output Voltage | 0.1 ~ 3kv |
Burst Period | 20ms |
Polarity | Positive polarity |
Phase Shift | Sync: 0° to 360° and the step value is 1° |
Output Impedance | 40Ω |
Coupling / Decoupling Network | Includes a 16A single phase CDN |
Power | AC220V (Option 110V) ±10%, 50/60Hz |
Features:
•It can test various types of lighting
•The high pressure waveform forming circuit uses imported high-pressure discharge switch to ensure the stability of the equipment to work long hours and the reliability of discharge waveform
•Parameters can be upgraded according to the testing standards
•Test mode is programmable
