Product No: VOL-CP

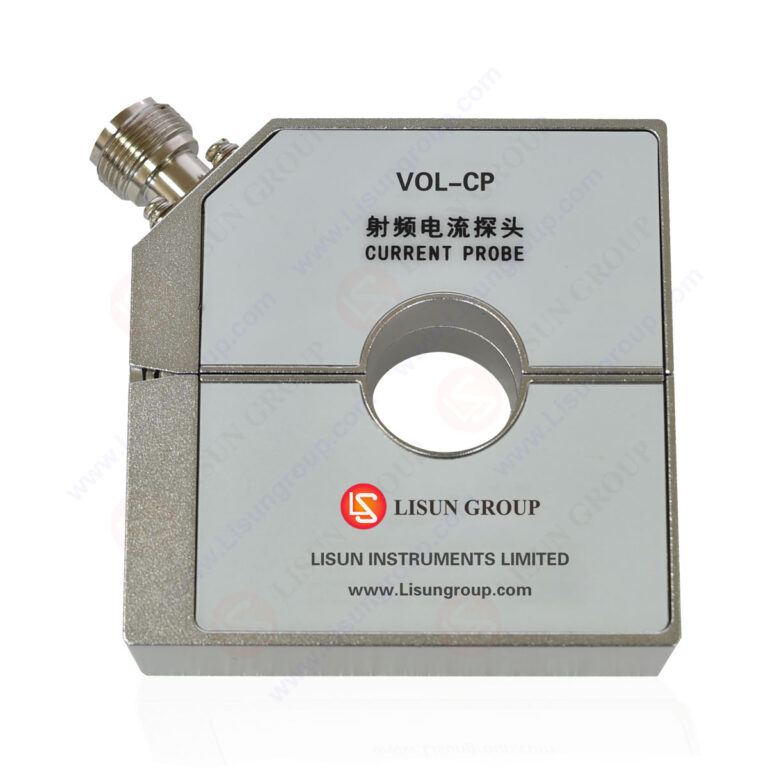

VOL-CP Radio Frequency Current Probe fully meet CISPR15:2018, IEC/EN55015-2019, GB/T17743-2021 standards for testing the conducted disturbance voltage of wired network interfaces, excluding power supply interfaces, and the conducted disturbance voltage of ELV lamps, excluding power supply interfaces.
Standard:
CISPR15:2018/ GB17743 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment”
EN55015 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment.”
Specification:
| Output impedance | 50Ω |
| Available frequency range | 20Hz-300MHz |
| The scope of the transfer characteristic flat area (-3dB) | 0.15MHz-160MHz |
| Radio frequency connector | N |
| Test current limit | 100A（＜400Hz） 2A（RF CW） 50A（Pulse peak） |
| Voltage standing wave ratio | ＜2（f≥10MHz） |
| Insert resistance | ≤0.8Ω |
| Flat area transfer impedance | About 5.88Ω |
| Flat region transfer admittance | About -15.4dBS |
| Resistance to external magnetic fields | ＞40dB |
| Probe inner diameter | 22mm |
| Exterior dimensions | 78×78×28mm |
| Weight | 350g |
Frequency response graph of RF current probe transfer admittance
Typical applications of Radio Frequency Current Probes (CISPR15:2018, IEC/EN55015-2019)
