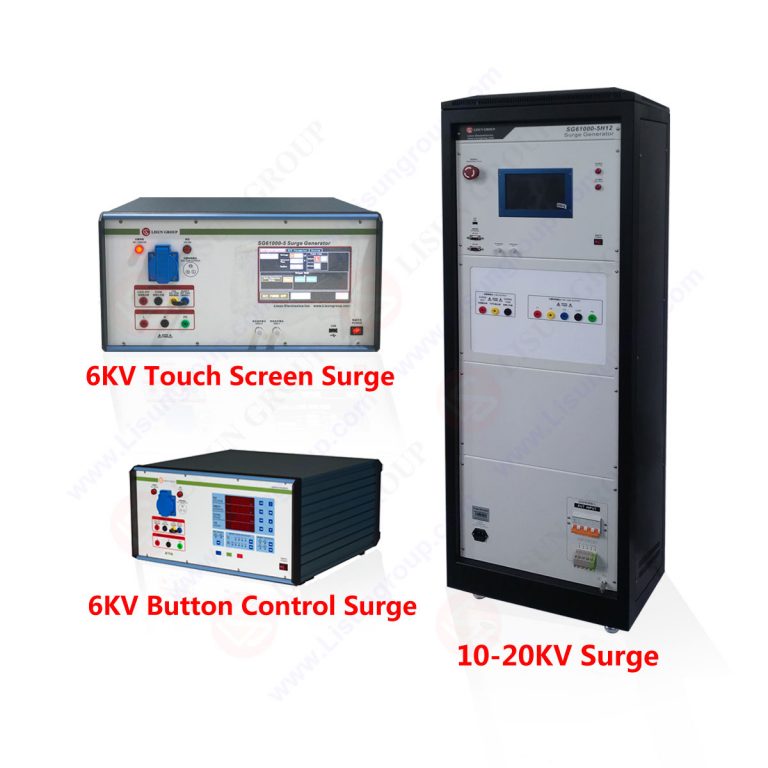

Surge Generator

Product No: SG61000-5

Leave a Message

=
  • Description
  • Video
  • Download
  • The SG61000-5 series Lightning Surge Generator (also known as a lightning surge immunity tester, combination wave generator, current surge generator/voltage surge generator, or combined voltage and current surge generator) is a highly integrated, fully automated electromagnetic compatibility (EMC) tester. Its core function is to simulate the high-energy transient interference generated by natural lightning induction and the switching of large inductive and capacitive loads. It is used to evaluate the immunity of power lines and internal wiring of electronic and electrical equipment to such interference, providing a standardized test environment for equipment electromagnetic immunity compliance testing.

    The SG61000-5 series Surge Generator was designed covers various voltage/current output requirements (up to 0-30kV and 0-15kA), supporting standard waveform outputs such as 1.2/50μs and 10/700μs (open-circuit voltage), 8/20μs and 5/320μs (short-circuit current). Built-in voltage and current attenuator probes and an electronic oscilloscope allow direct viewing of output waveforms on the LCD touchscreen, eliminating the need for external instruments. This significantly simplifies the test process and ensures accurate waveform parameters meet standard requirements. The SG61000-5 series widely serves manufacturers, R&D centers, and third-party testing organizations in the fields of electronics, new energy, communications, and industrial control. It is an important testing tool for equipment to pass EMC compliance certification.

    Reference Standards:

    Standard No. Standard Name
    GB/T 17626.5-2019 Electromagnetic compatibility – Test and measurement technology – Surge (impact) immunity test
    IEC 61000-4-5:2014 Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test
    EN 61000-4-5:2019 Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test
    ANSI/IEEE Std C62.41.2 IEEE Recommended Practice on Characterization of Surges in Low-Voltage (1000 V and Less) AC Power Circuits
    ANSI/IEEE Std C62.41.1 IEEE Guide on the Surge Environment in Low-Voltage (1000 V and Less) AC Power Circuits
    ANSI/IEEE Std C62.45 IEEE Recommended Practice for Surge Testing of Equipment Connected to Low-Voltage AC Power Circuits

    Specifications:

    LISUN Model SG61000-5SB SG61000-5 SG61000-5H-SP SG61000-5H15-SP SG61000-5H20-SP SG61000-5C
    Voltage Waveform 1.2/50μs±20% 10/700μs±20%
    Current Waveform 8/20μs±20% 5/320μs±20%
    Output impedance 2Ω and 12Ω 2Ω, 12Ω and 500Ω 15Ω and 40Ω
    Output voltage range 0~4.8KV±5% 0~6KV±5% 0~10KV±5% 0~15KV±5% 0~20KV±5% 0~6KV±5%
    Output current range 0~2.4KA±5% 0~3KA±5% 0~5KA±5% 0~7.5KA±5% 0~10KA±5% 0~150A±5%
    Surge times 1~9999 times
    polarity Positive, negative and fully automatic
    Phase Shift Asynchronous, synchronous: 0°~360° or specified angle test
    Special Features N/A New free upgrade: built-in voltage and current attenuator probe and electronic oscilloscope, you can view the output waveform directly on the touch screen!
    Operation LCD touch screen input, built-in Android system
    Dimensions (W*D*H) 44*45*35cm 44*45*35cm 72*61*175cm 72*61*175cm 90*80*175cm 44*45*155cm
    Gross weight About 30kg About 30kg About 120kg About 150kg About 180kg About 130kg
    Built-in CDN AC240V/16A single-phase CDN 4-line symmetric CDN
    CDN for Power line
    (external CDN)
    It can be selected according to the maximum surge output voltage and the maximum input of EUT, See LISUN CDN61000-5P N/A
    CDN for Signal line
    (external CDN)
    Can be selected according to the type of EUT, data transmission rate and surge output waveform, See LISUN CDN61000-5C
    Isolation Transformer
    (optional)
    LISUN ITEU-SP4K (220V Single phase) or ITUS-SP2K (110V)
    Over 10KV Surge Generator SG61000-5H

    Over 10KV Surge Generator SG61000-5H

    Remarks: The single-phase 12kV surge protector SG61000-5H12-SP, single-phase 30kV surge protector SG61000-5H30-SP, three-phase 12kV surge protector SG61000-5H12, and three-phase 20kV surge protector SG61000-5H20 are not listed in the table. Please contact Shanghai Lisun directly for a quote.

    Suggestions 1:
    Due to the danger of high voltage during surge testing, to ensure safety, we recommend using the LISUN PD-E01 surge protector with the SG61000-5. The following is a PD-E01 surge protector (maximum internal test object dimensions are 700*440*392mm; other specifications are available upon request).

    Protect Device for Surge Test PD-E01

    Suggestions 2:
    We recommend using the LISUN SG-DESK surge test table and ITEU-SP4K Isolation Transformer with the SG61000-5 surge generator.

    SG-DESK Surge Generator Desk

    LISUN SG61000-5 Surge Generator – After-sales Frequently Asked Questions (FAQ)
    LISUN SG61000-5 Surge Generator were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
