IEC 60335-2-42 Clause 15.1.1 Figure 104 Splash Water Test Device

Splash water test device fully meet the IEC 60335-2-42:2021 clause 15.1.1 & 15.1.2 figure 104, IEC 60335-2-64 (GB 4706.38 clause 15.1.1 & 15.1.2 figure 101), IEC 60335-2-36(GB 4706.52 Clause 15.1.1& 15.1.2 figure 102).

Application: To simulate the splashing of water from the ground to the base of electrical appliances when rain drops on the ground. It is used to test the waterproof performance of the bottom of household appliances such as electric food processing machinery, electric stoves, washing machines, etc.

Sample scope: Commercial electric stoves, ovens, cookers and commercial electric food processing machinery and other household appliances

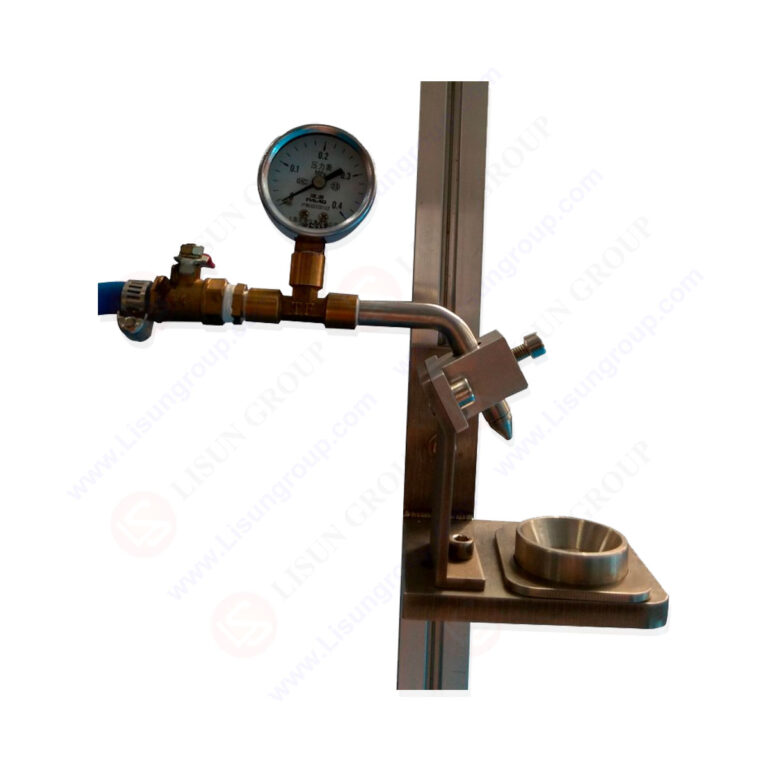

Structure and function: This device adopts aluminum profile structure, and the splashing structure can be adjusted up and down; it adopts Foma wheels, which can be moved or fixed; the nozzle, bowl and pipe are made of stainless steel, and the overall structure is waterproof and corrosion-resistant; it is equipped with a pressure gauge to display the current water pressure in real time.

IEC 60335-2-64 Clause 15.1.1 Figure 101 Splash Water Test Device
