Product No: GNGPL-CEI23

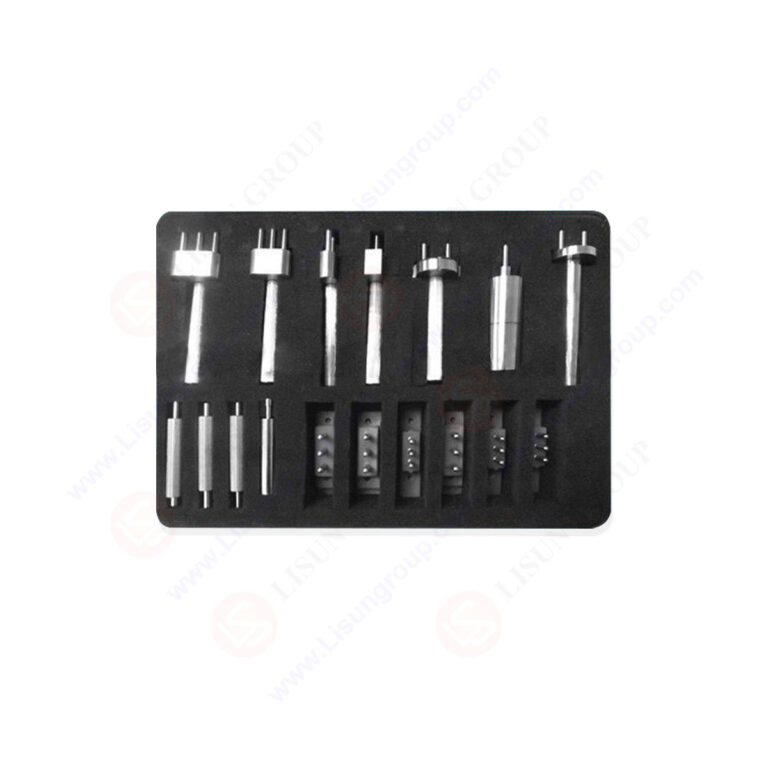

LISUN GNGPL-CEI23 Italy Standard Plug and Socket Outlets Gauges is mainly used to test and inspect whether the structure and size of plugs and sockets conform to CEI 23-50 standard. LISUN GNGPL-CEI23 application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
Specifications:
LISUN GNGPL-CEI23 includes the all following gauges:
LISUN Model | Standard No. | Specification |
GNGPL-235C1 | CEI-23-50-C1 | Gauges C1 of 10A 250V & 16A 250V |
GNGPL-235C2 | CEI-23-50-C2 | Gauges C2A & C2B(10A & 16A) |
GNGPL-235C3 | CEI-23-50-C3 | Gauges C3 |
GNGPL-235C4 | CEI-23-50-C4 | Gauges C4 |
GNGPL-235C5 | CEI-23-50-C5 | Gauges C5A & C5B |
GNGPL-235C6 | CEI-23-50-C6 | Gauges C6 |
GNGPL-235C7 | CEI-23-50-C7 | Gauges C7 |
GNGPL-235C8 | CEI-23-50-C8 | Gauges C8 |
GNGPL-235C9 | CEI-23-50-C9 | Gauges C9 |
GNGPL-235C10 | CEI-23-50-C10 | Gauges C10 |
GNGPL-235C11 | CEI-23-50-C11 | Gauges C11 |
GNGPL-235C12 | CEI-23-50-C12 | Gauges C12 |
