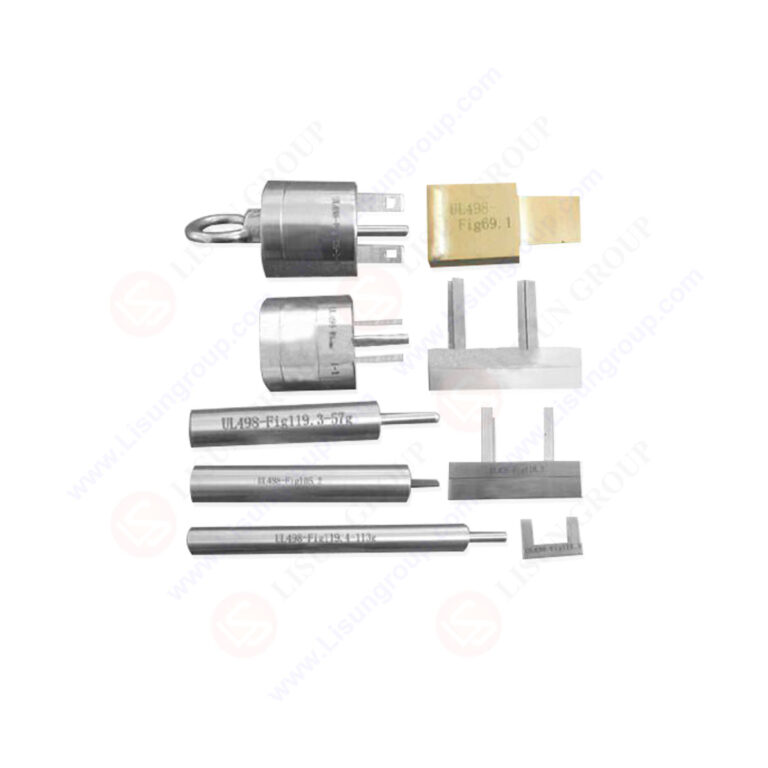

Product No: GNGPL-UL498
1. Application: This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to UL 498:2012 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features: Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements; Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
3. Specifications:
| LISUN Model | Product Specifications（UL 498 -2019） |
| GNGPL-UL498F91 | Articulate probe with web stop Figure 9.1 |
| GNGPL-UL498F101 | Probe Figure 10.1 |
| GNGPL-UL498F311 | Flat probe Figure 31.1 |
| GNGPL-UL498F741R | Reference plug Figure 74.1 |
| GNGPL-UL498F741T | Typical test apparatus Figure 74.1 |
| GNGPL-UL498F1001 | Improper insertion test blades Figure 100.1（test blade1&test blade2） |
| GNGPL-SU3639 | Test Gauge of UL 498 Figure 109.1 |
| GNGPL-S3635A | Test Gauge of UL 498 Figure 109.2 |
| GNGPL-UL498F1241 | Receptacle test fixture Figure 124.1 |
| GNGPL-UL498F1243 | Push out tool Figure 124.3 |
| GNGPL-UL498F1245 | Bridge Figure 124.5 |
| GNGPL-UL498F1251 | Test pin A Figure 125.1 |
| GNGPL-UL498F1252 | Test pin B Figure 125.2 |
| GNGPL-UL498F1253 | 57g ground pin Figure 125.3 |
| GNGPL-UL498F1254 | 113g ground pin Figure 125.4 |
| GNGPL-SU0196 | No.14AWG test pin Figure 136.2 |
| GNGPL-SM390 | Small Test Probe with UL498 Figure 139.1 |
| GNGPL-UL498F1392 | Large Test Probe of UL498 Figure 139.2 |
| GNGPL-UL498F1742 | Fixture for assembly security test Figure 174.2 |
| GNGPL-UL498FSC211 | Standard grounding pin Figure SC 21.1 |
| GNGPL-UL498FSC251 | Over size ground pin Figure SC 25.1 |
