Product No: LS6100

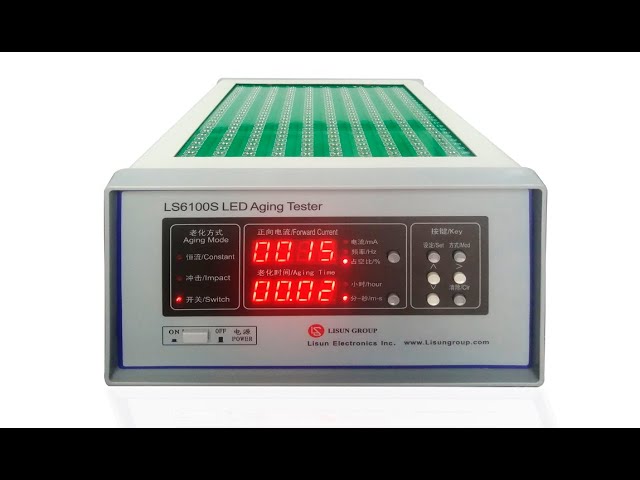

We are LED testing instruments manufacture in China. This LED aging machine is specially for DIP LED. It can measure the aging-life and color comparisons of 260pcs DIP LED.
Specifications:
• 260 separate constant current supply
• Aging functions: constant current, impact pulse, on-off mode
• Range of forward voltage(VF): 5.0V
• Range of forward current(IF):
1) constant current: 0-100.0mA
2) Impact pulse: 0-200.0mA
• Range of impact pulse frequency: 10-9999Hz; Duty ratio: 1%-99%
• Range of on-off circle: 0-9999H59M59S
• Range of on-off times: 0-9999times
• Range of aging time: 0-9999H59M59S
