Product No: LS-WJ62

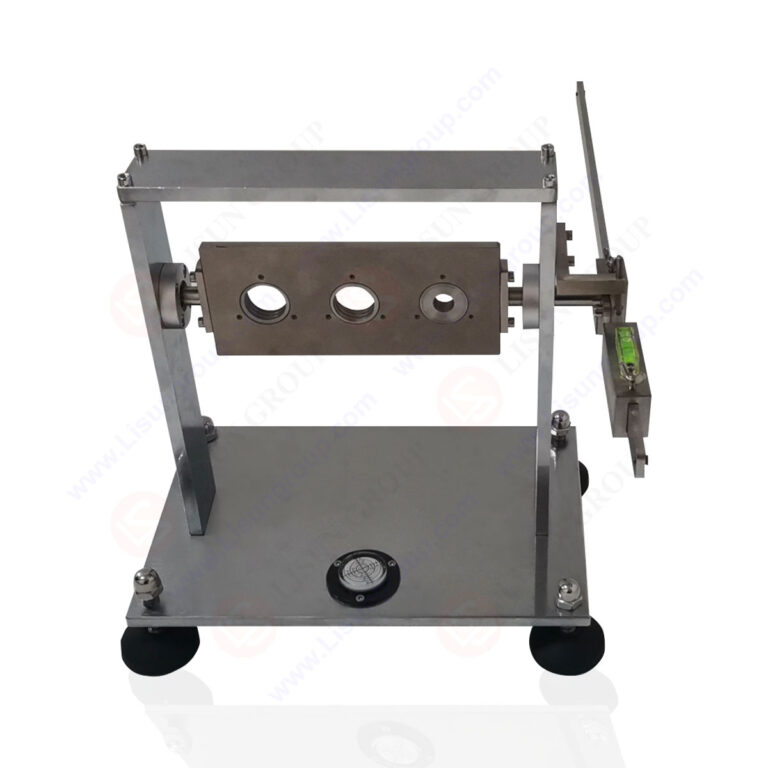

The bending moment test device for lamp Cap is designed in accordance with the requirements of standard IEC 62560 section 6.2 and IEC 60598-1 section 4.14.2, and also complies with the requirements of chapter 6.2 of GB 24906-2010 and the corresponding requirements. It is mainly used for testing the torque of light bulbs.
Specification:
• Torque range: 0.1~2.5N•m
• Accuracy: ±5%
• Mechanical type
• Lamp cap torque value (The default configuration is E27, other lamp cap types need to be customized):
No. | Lamp Cap Type | Bending moment(Nm) |
1 | B15d | 1 |
2 | B22d | 2 |
3 | E11 | 0.5 |
4 | E12 | 0.5 |
5 | E14 | 1 |
6 | E17 | 1 |
7 | E26 | 2 |
8 | E27 | 2 |
9 | GU10 | 0.1 |
10 | GZ10 | 0.1 |
11 | GX53 | 0.3 |
12 | E39 | 1 |
13 | E40 | 1 |
IEC 62560 section 6.2
IEC 62560 section 6.2
