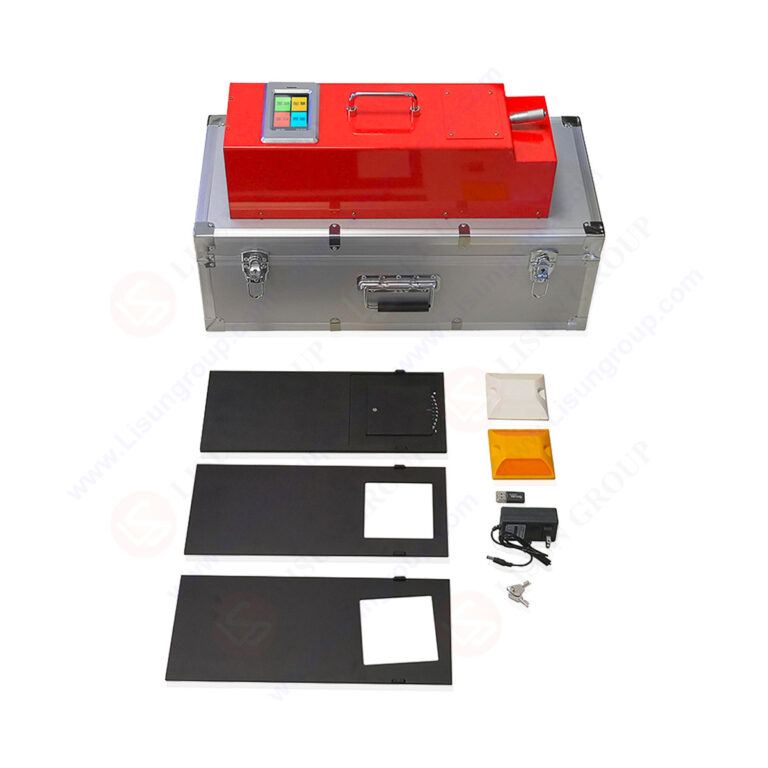

Road Pavement Protruding Signs Mark Retroreflectometer

The LS-201C is an instrument designed to measure the primary performance indicator of road pavement Protruding Signs Mark – the coefficient of luminous intensity. It operates on a Windows CE-based control platform and is equipped with a 32-bit high-speed processor core, providing a user-friendly and practical human-machine interaction interface. This instrument is ideal for use in photometric laboratories, testing centers, and highway construction sites. It is also suitable for quality inspection of Road Pavement Protruding Signs Mark by manufacturing plants. The instrument is specifically designed for measuring rectangular Road Pavement Protruding Signs Mark.

Application:
• Suitable for photometric laboratories, testing centers, and highway construction sites.
• Applicable for quality inspection of raised pavement markers by manufacturing plants.
• Designed for measuring rectangular Road Pavement Protruding Signs Mark.
• Used by retroreflective material manufacturers to monitor the quality of their reflective materials.

Standard：
ASTM E1696″Standard Test Method for Field Measurement of Raised Retroreflective Pavement Markers Using a Portable Retroreflectometer”
ASTM D4280″Standard Specification for Extended Life Type, Nonplowable, Raised Retroreflective Pavement Markers”
DIN 67520:2013-10″Retro-reflecting materials for traffic safety – Photometric minimum requirements for retro-reflective sheetings”
BS/EN 1463″Road marking materials – Retroreflecting road studs.”

Specification:
• Ultra-high integration with a complete embedded structure.
• LED backlight and high-definition true-color digital screen with an output resolution of 320×240, providing real-time measurement data display.
• System memory: SDRAM 64MB.
• Low-power 32-bit high-speed ARM chip with a 500MHz main frequency.
• Fully English langauge, easy to operate.
• Supports preset parameters such as detection time, location, and system information.
•  Functions: Parameter calibration, automatic zero adjustment, data storage, deletion, and query.
•  Observation Angle (α): Continuously adjustable from 0.2° to 2.0°.
•  Incident Angles (including β1 and β2): β1: ±0° and β2: ±0°, ±5°, ±10°, ±15°, ±20°.
•  Light Source Color Temperature: 2856K (complying with CIE Standard A light source).
• Detector: Silicon diode with V(λ) correction (complying with CIE standard luminous observer).
•  Display: LCD screen.
•  Measurement Range: 0 to 1,999 mcd·lx⁻¹.
•  Power Supply: 7.4V lithium battery pack (capacity: 12Ah).
