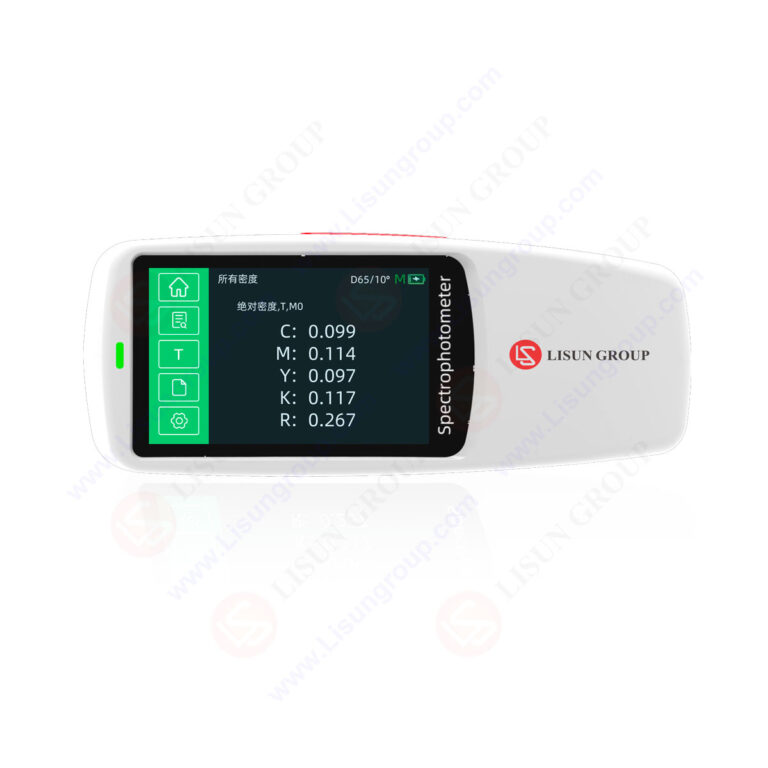

Color Densitometer



Provide printing-specific measurement indicators to help users adjust colors efficiently
Color density measurement, Tone value, trapping , contrast , Hue Error & Grayness



Ultra-high repeatability accuracy：dE*ab≤0.02
Repeatability accuracy is the most important parameter describing the performance of a densitometer. The CD-626 densitometer uses high-precision nano-spectroscopic devices, achieving a repeatability accuracy that is unparalleled among similar products, with dE*ab ≤ 0.02.

Over 30 measurement parameters and nearly 40 evaluation light sources
CD-626 Color Densitometer provide spectral reflectance, CIE-Lab, CIE-LCh,ΔE*ab, covering power, whiteness, yellowness and other 30+ measurement indicators; A, B, C,There are nearly 40 evaluation light sources to choose from such as D50, D55, and D65, covering almost all industries all color measurement metrics and light source types included



Use the powerful PC-side color management system ColorExpert
The CD-626 Color Densitometer comes with the Windows color management system ColorExpert, which can be connected to the CD-626 Color Densitometer via Bluetooth or USB cable. ColorExpert is a full-featured color management software with four major functional modules: My Color, Color Detection, Color Matching System, and Personal Center.

• In the “My Colors” function module, users can collect or create new color libraries they need among hundreds of color libraries shared by other users. Computer software and mobile phone APP can share the same account, and the color library data follows the account, realizing information synchronization between PC and mobile terminal.
• In the ‘Color Detection’ module, users can calibrate, measure, and configure the densitometer via computer software. Users can use colors from the cloud database as standards for color difference measurement, view spectral and color difference graphs, compare standard and sample data, and export the desired data test reports.
• In the ‘Color Matching System’ module, a more convenient and efficient color matching process is provided for users. After the instrument measures the sample color, the system calculates the formulation in the formulation center and automatically adjusts the color to achieve precise matching. This is suitable for computer-aided color matching applications in fields such as paint, coatings, printing, and textiles.
• In the ‘Personal Center’ module, users can edit their personal information, search for or delete connected instrument information, manage downstream users, and manage color libraries shared with downstream users.



Model	CD-626	CD-628	CD-630
Measuring Structure	45/0
NetProf network Calibration	/	/	support
Integrated Physical Position Holes	support
Measurement Repeatability	dE*ab≤0.02
Display Accuracy	0.01
Lighting Source	Full-band balanced LED light source
UV Light Source	/	support
Caliber	Φ5mm	Φ11mm, Φ5mm, Φ3mm	Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm
				Accuracy Guaranteed	Ensure measurement is qualified
Field of View	2°, 10°
Integrating Sphere Diameter	40mm
Standards	CIENo.15, GB/T3978, GB2893, GB/T18833, ISO7724-1, ASTME1164, DIN5033Teil7
Spectral Method	High-precision nano spectroscopic device
Sensor	Silicon photodiode array dual 16 groups
Wavelength Interval	10nm
Wavelength Range	400-700nm
Reflectivity Measurement Range	0-200%
Reflectance Resolution	0.01%
Measure Time	about 1 s
Interface	USB, Bluetooth
Screen	Full color screen, 3.5 inches
Battery Capacity	Can continuously measure 8000 times on a single charge, 7.2V/3000mAh
Light Source life	5 million times
Language	Simplified Chinese,  English
Storage	Instrument: 10,000 items; APP: Mass storage
Light Source Conditions	A, B, C, D50, D55, D65, D75F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2
Measurement Standard	Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB color difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTME313-00, ASTME313 -73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBerger Stensby) yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73) blackness (My, dM), stain fastness, color fastness, Tint (ASTM E313-00) Color density CMYK (A, T, E, M), metamerism index Milm, Munsell, hiding power, strength (dye strength, tinting strength)

Model Difference:

LISUN Model	CD-626	CD-628	CD-630
Measurement Repeatability	dE*ab≤0.02
Diameter	Φ5mm	Φ11mm, Φ5mm, Φ3mm	Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm
				Integrated Physical Positioning Hole	YES	YES	YES
NetProf Network Calibration	/	/	YES
UV	/	YES	YES
