IEC 60884-1 Clause 24.8 Figure 31 | BS 1363-1 Clause 13.17.3 Figure 9 Apparatus for Abrasion Test on Insulating Sleeves of Plug Pins

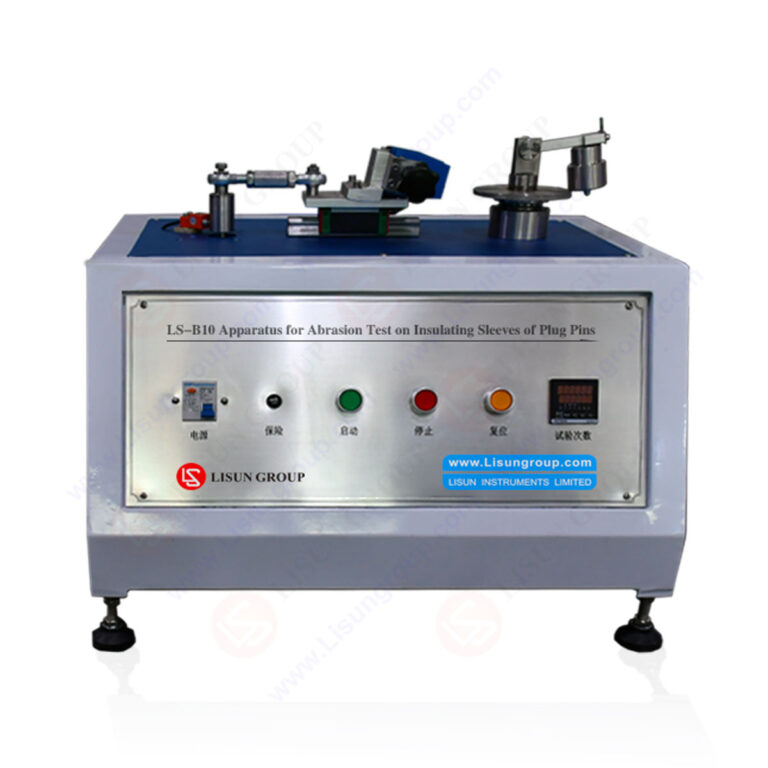

LS-B10 Apparatus for Abrasion Test on Insulating Sleeves of Plug Pins fully meet IEC 60884-1:2022 Clause 24.8 Figure 31 and BS 1363-1:2023 Clause 13.17.3 Figure 9 (GB/T 2099.1-2021 Clause 24.8 and Figure 28) related requirements. It is composed of a horizontal beam and a fixture seat with a linear movement. The end of the beam is equipped with a U -shaped head with a diameter of 1mm (the two points of the U -shaped point are fixed on the beam). The bottom edge of the steel wire U -shaped is 6mm straight line working part. Press the U -shaped steel wire 6mm straight bottom edge on the insertion insulator. The motor drives the fixture of the plug -in to be installed to do it back and forth, so that the steel wire and the inserted insulation sample friction are tested.

Standard:
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 24.8 Figure 31
BS 1363-1 “13 A plugs, socket-outlets, adaptors and connection units – Rewirable and non-rewirable 13 A fused plugs. Specification” Clause 13.17.3 Figure 9

Specification:
• Working station: single station
• Number of working times: 1~999,999 adjustable
• Frequency scraping: 30 times/minute, Past and return to each plan calculation once
• Pressure load: 4N
• Working itinerary: 9mm, about 7mm for scraping insulation cover
• Scraping steel wire: φ1mm, the effective length of 6mm

IEC 60884-1 Clause 24.8 Figure 31
