IEC 60884-1 Clause 16.2 Figure 18 Test Wall for Concealed Socket IP Waterproof

The LS-B05 Concealed Socket IP Testing Wall fully complies with IEC 60884-1:2022 Clause 16.2 Figure 18 (GB/T 2099.1-2021, Section 16.2 and Figure 15). It is used to simulate the waterproof performance (IP rating) of electrical accessories, such as 86 mounting box sockets, when used in damp environments.

Standard:
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 16.2 Figure 18

Specification:

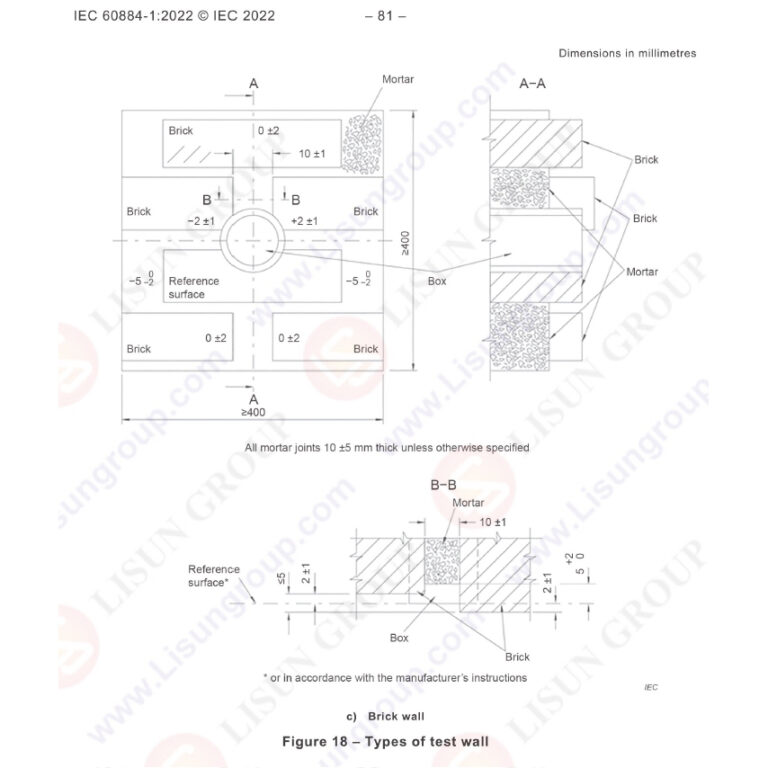

IEC 60884 1 Figure 18
