IEC 60669-1 Clause 18.3 Tungsten/Halogen Lamp Load Cabinet

The Tungsten/Halogen Lamp Load Cabinet is designed and manufactured according to the general technical requirements of IEC 60669-1:2018 Clause 18.3 (GB 16915.1-2024 Clause 18.3), IEC 60884-1:2022 (GB/T 2099.1-2021), IEC 62368-1:2023 (GB/T 4943.1-2022), IEC 60598-1:2024 (GB/T 7000.1-2023) and other relevant standards. It is a special equipment for testing the switching capacity and normal operating life of switches for household and similar fixed electrical installations. The rated voltage of the tested accessories such as switches is not more than 250V, and the rated current is not more than 16A. The purpose is to assess whether accessories such as switches can withstand current surge impacts and electrical fatigue damage in normal use, whether there is contact adhesion or long-term disconnection, and whether there is excessive wear and other harmful consequences.

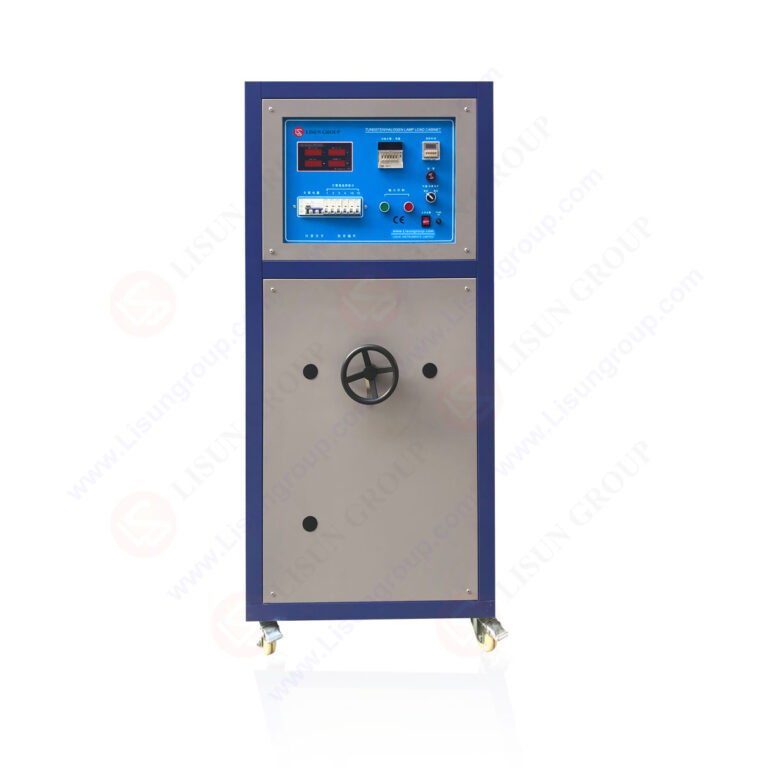

The Tungsten/Halogen Lamp Load Cabinet has a control power switch, product power-on current, voltage and power, frequency display instrument, load power output switch, status and lamp group number indicator, current output and stop button, current (power) quantity selection switch, alarm, etc., and the voltage output adjustment knob is at the bottom of the front. There are tungsten lamp load combinations, AC contactors, relays, etc. inside, and the heat is cooled by strong wind diversion. There is a terminal block at the bottom, which is connected to the product in the test machine through wires and outputs current during the detection process.

Standard:
IEC 60669-1 (GB 16915.1) “Switches for household and similar fixed-electrical installations – Part 1: General requirements” Clause 18.3
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements”
IEC 62368-1 (GB/T 4943.1) “Audio/video, information and communication technology equipment – Part 1: Safety requirements”
IEC 60598-1 (GB/T 7000.1) “Luminaires – Part 1: General requirements and tests”

Specification:
• Power Supply: Single-phase three-wire AC220 ± 10%/50Hz
• Digital voltage meter: voltage range 0-300V, accuracy ± 0.5%± 2D
• Digital current meter: 0~40A, accuracy ± 0.5%± 2D.
• Digital power meter: 0~9kW, accuracy ± 0.5%± 2D.
• Loading method: Built -in 3 sets of 200W tungsten filament light/halogen light combination, circulating and power on.
• Number of output channel: 1.
• Load power supply capacity: 7.5KVA
• The maximum output current is 20A, and the load is automatically cut off when it exceeds 22A.
• The maximum output voltage is 300V, and the load is automatically cut off when it exceeds 305V.
• Selection of tungsten filament/halogen lights: each lamp is 200W power, divided into 1/2/3/4/10/10 pieces combination.
• Digger: 0~999999 times can be set.
• With long sticky protection function: The long-stick limit time range is 0-99s and can be set.

Notes: DFX-WD20A Tungsten/Halogen Lamp Load Cabinet usually should work together with LISUN CZKS-6 6 Position Plug Socket Switch Life Tester.
