IEC 60245-1 Clause 5.1.5 | IEC 60245-2 Clause 2.1 | IEC 60468 Universal Conductor Resistor Fixture

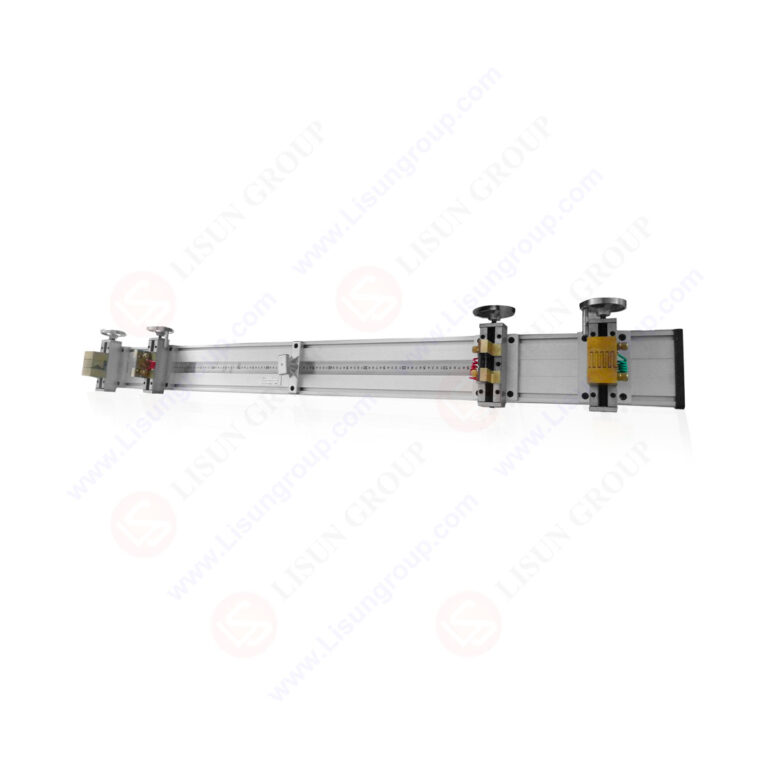

The LS-B43 Universal Conductor Resistance Fixture is designed and manufactured in full accordance with the provisions of IEC 60245-1:2008 Clause 5.1.5 (GB/T 5013.1-2008 Clause 5.1.5), IEC 60245-2:1998 Clause 2.1 (GB/T 5013.2-2008 Clause 2.1) and IEC 60468:1974. It is suitable for measuring the DC resistance of various power cables and electrical equipment wires and cables, and can also be used to measure the DC resistance of other conductor materials.

Testing principle: It employs a quick clamping and release mechanism using a forward and reverse screw structure. The voltage and current clamps are separated to improve the contact points with the sample. The fixture is built with an aluminum alloy base and copper clamps.

Standard:
IEC 60245-1 (GB/T 5013.1) “Rubber insulated cables – Rated voltages up to and including 450/750 V – Part 1: General requirements” Clause 5.1.5
IEC 60245-2 (GB/T 5013.2) “Rubber insulated cables – Rated voltages up to and including 450/750 V – Part 2: Test methods” Clause 2.1
IEC 63294 “Test methods for electric cables with rated voltages up to and including 450/750 V”
IEC 60468 “Method of measurement of resistivity of metallic materials”

Specification:

IEC 60245-2 Clause 2.1
