IEC 60884-1 Clause 24.13-15 Figure 34 | IEC 60669-1 Clause 20.5-7 Figure 13 Test Device for Verification of Cover and Cover plates

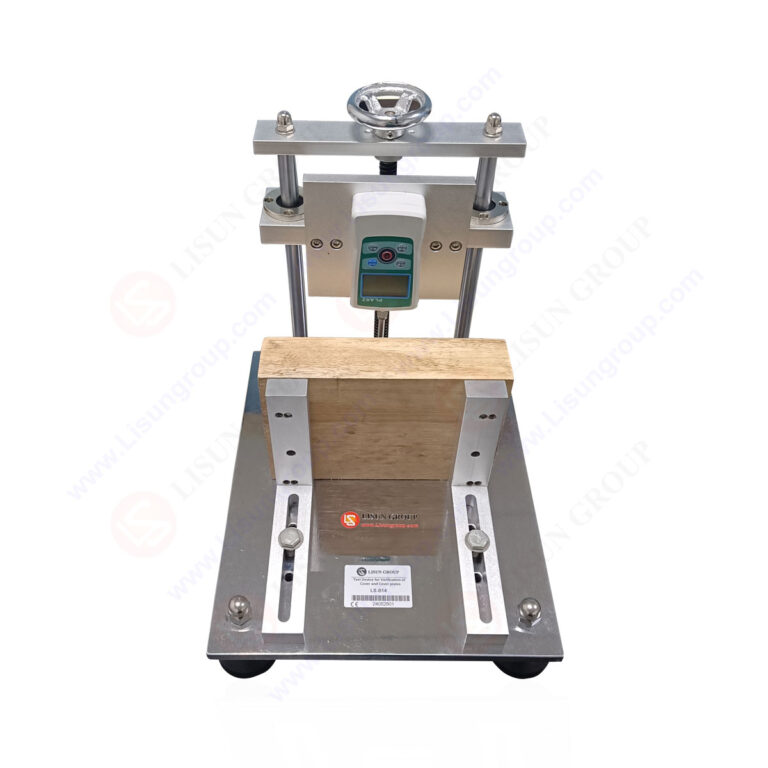

LS-B14 Test Device for Verification of Cover and Cover plates fully meets requirements of IEC 60884-1:2022 Clause 24.13-15 Figure 34 (GB/T 2099.1-2021 Clause 24.15-17 and Figure 31), IEC 60669-1:2017 Clause 20.5-7 Figure 13 (GB/T 16915.1-2024 Clause 20.4-6 and Figure 19). It is used to verify the force required to make the cover or cover plate of a switch or socket or other parts fall out or not fall out. The push-pull force gauge is used to push or pull the sample with different force values ​​to determine the safety of the cover or cover plate during reuse.

Standard:
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 24.13-15 Figure 34
IEC 60669-1 (GB/T 16915.1) “Switches for household and similar fixed-electrical installations – Part 1: General requirements” Clause 20.5-7 Figure 13

Specification:

IEC 60884-1 Clause 24.13-15 Figure 34
