Product No: WDT-1

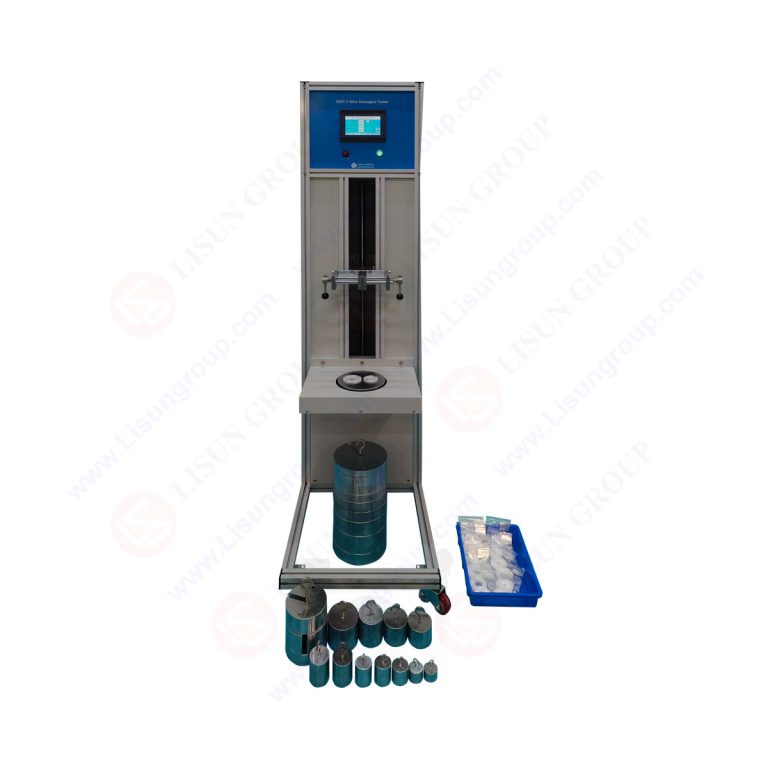

WDT-1 Wire Strength Damaged Tester is designed and manufactured according to corresponding regulation in standard IEC 60884-1:2022 Clause 12.2.5, Clause 12.3.10 and Figure 11 (GB/T 2099.1-2021 Clause 12.2.5, 12.3.10 and Figure 11); IEC 60669-1:2017 Clause 12.2.5, Clause 12.3.10 and Figure 10 (GB/T 16915.1-2024 Clause 12.2.5, Clause 12.3.10 and Figure 10); IEC 60998-2-2:2023 Clause 10.105 and Figure 101 (GB/T 13140.3-2008 Clause 10.105 and Figure 101); UL 486A-B:2021 Clause 9.3.2.1, Clause 9.3.2.3, Clause 9.3.2.4 and Table 26 and Figure 6. Mainly used to test the damage degree of the leads of fixed connection components with screw clamping and screwless terminals, so as to check whether they can withstand mechanical stress during normal use.
Standard:

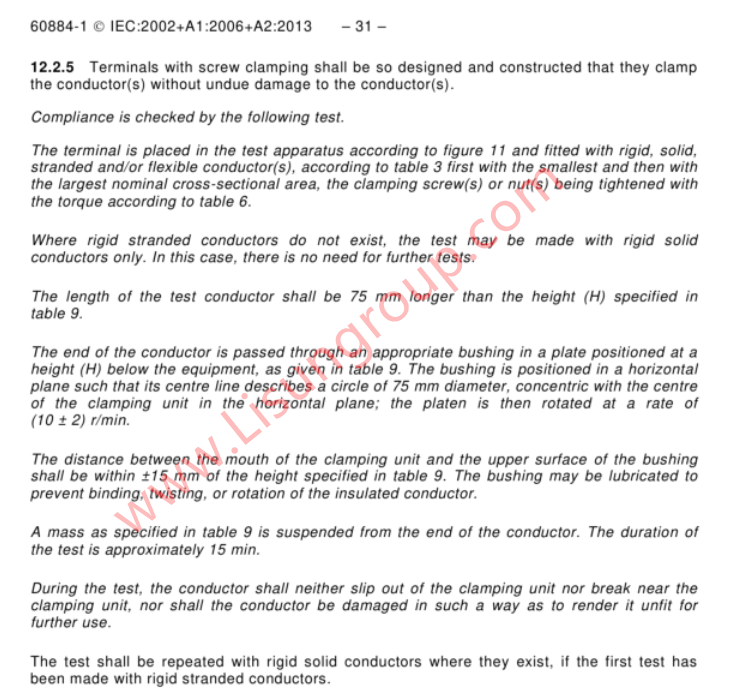

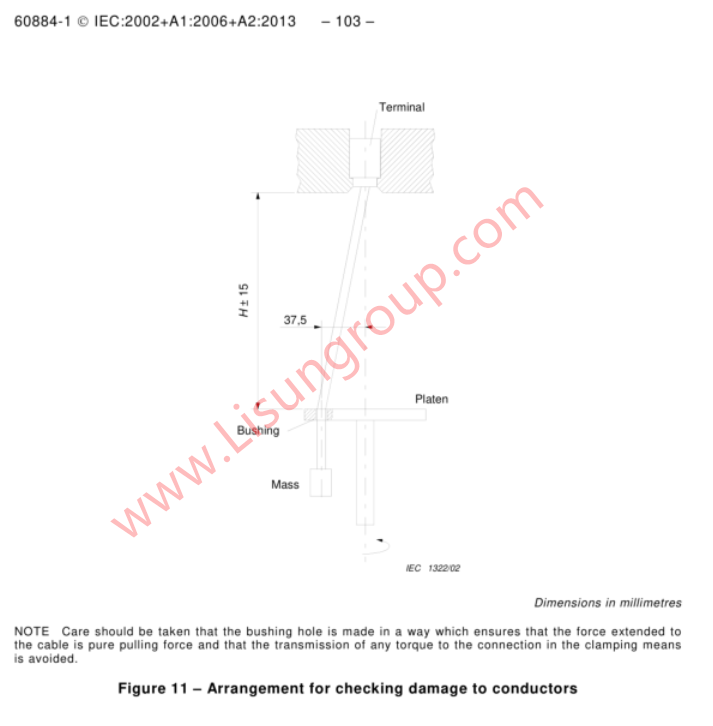

IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 12.2.5, Clause 12.3.10 and Figure 11
IEC 60669-1 (GB/T 16915.1) “Switches for household and similar fixed-electrical installations – Part 1: General requirements” Clause 12.2.5, Clause 12.3.10 and Figure 10
IEC 60998-2-2 (GB/T 13140.3) “Connecting devices for low-voltage circuits for household and similar purposes – Part 2-2: Particular requirements for connecting devices as separate entities with screwless-type clamping units” Clause 10.105 and Figure 101

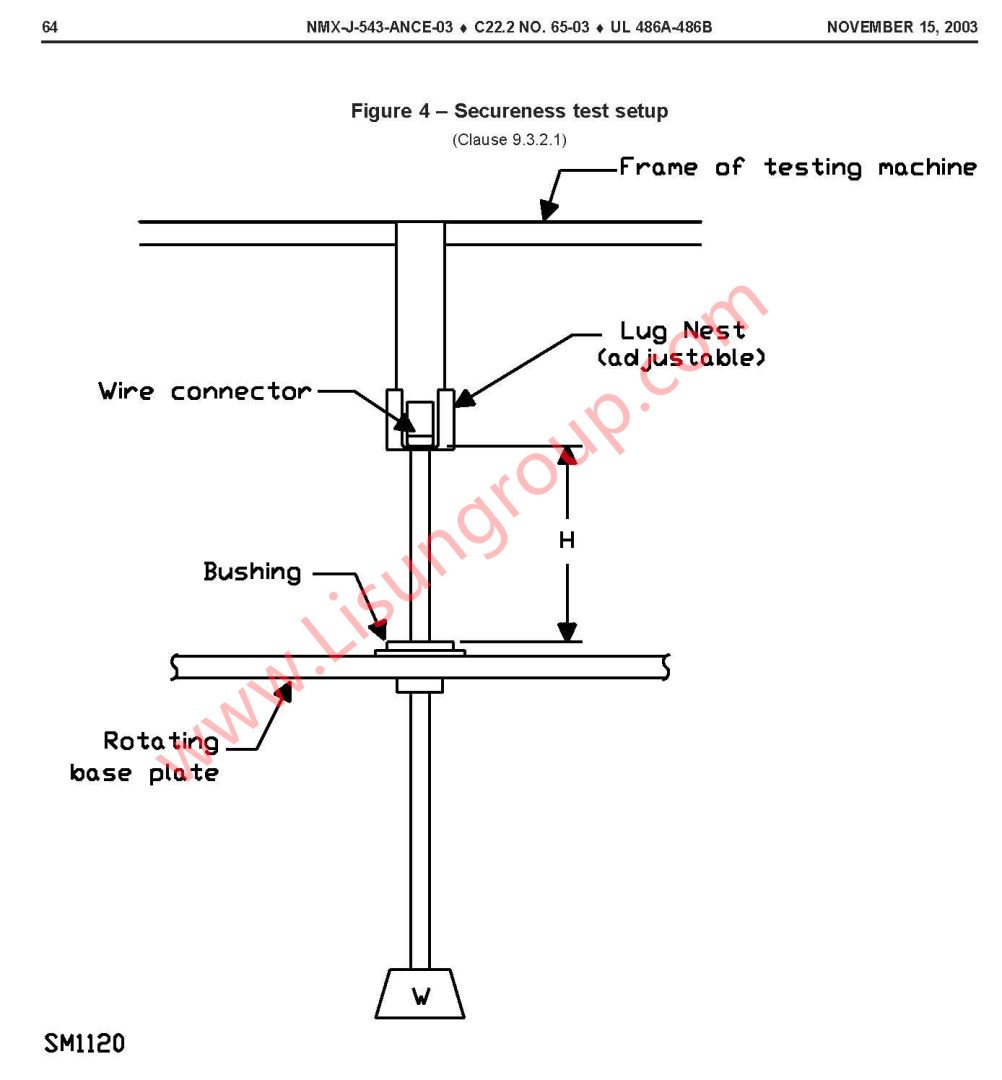

UL 486A-B “Standard of safety for wire connectors” Clause 9.3.2.1, Clause 9.3.2.3, Clause 9.3.2.4, Table 26 and Figure 6
Specification:
| LISUN Model | WDT-1 | WDT-1A | WDT-1B |
| Control and Operation | Electrical control, button operation | ||
| Workstation | Single Workstation | Double Workstation | |
| Working Speed | 10±2 rpm | 10±2 rpm, 9±1 rpm | |
| Rotation Diameter | 75mm | 75mm | 75mm, 76mm |
| Test Time | Adjustable: 0～99min59s | ||
| Test Laps | Adjustable: 0~999999 | ||
| Load Weight | 0.3, 0.4, 0.7, 0.9, 1.4, 2.0kg | 0.2, 0.3, 0.4, 0.7, 0.9, 1.4, 2.0, 2.9, 4.5, 6.8 kg | 0.3, 0.4, 0.7, 0.9, 1.4, 2.0, 2.3, 3.6, 4.5, 6.8, 8.2, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg (For weights above 8.2 kg, use stacking weights) |
| Height Distance | 250~500mm Adjustable | 240~640mm Adjustable | |
| Casing Diameter | 6.5, 9.5, 13, 14.5mm | 6.4, 6.5, 9.5, 13, 14.5mm | 6.5~28.6mm (12 in total) |
| Height Adjustment Method | Manual Adjustment | ||
| Standard |
IEC 60884-1 Clause 12.2.5, Clause 12.3.10 and Figure 11; |
IEC 60998-2-2 Clause 10.105 and Figure 101 |
IEC 60884-1 Clause 12.2.5, Clause 12.3.10 and Figure 11; |
