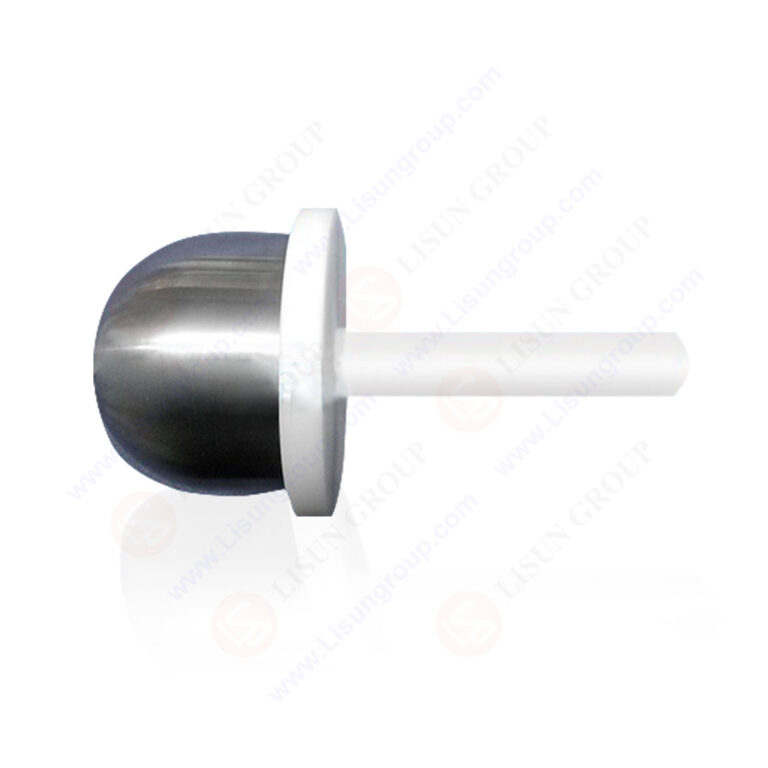

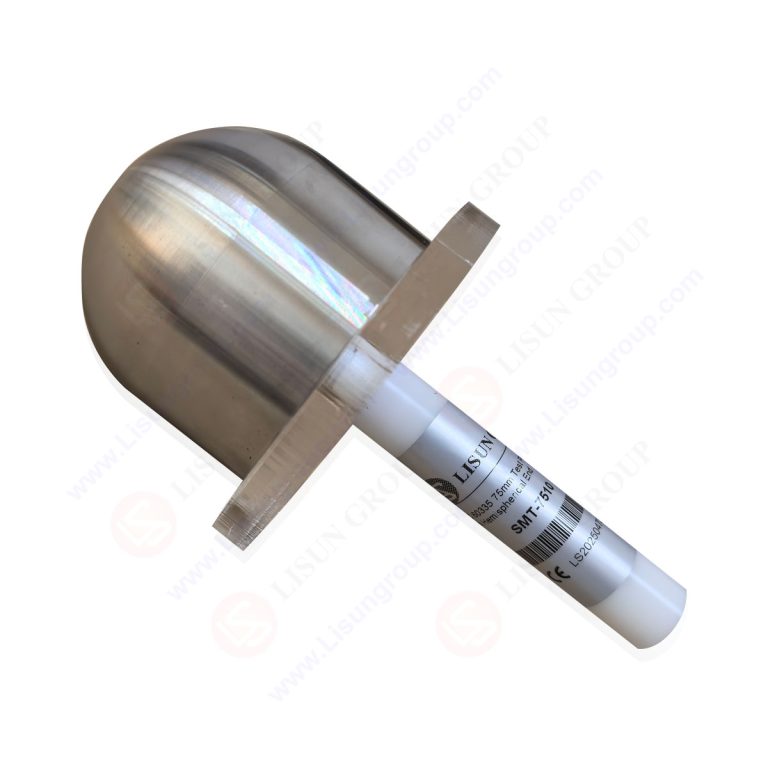

Product No: SMT-7510
Standard: IEC60335-2-30, IEC60335-2-24.
Diameter: 75mm, Confirm to the IEC60335-2-24 clause21.102. Sphere is hardened steel.
The test rod is 75 mm in diameter, of unrestricted length and with a hemispherical end.
Compliance is checked by applying a 75 mm ¡À 0,5 mm diameter sphere without appreciable force in an attempt to touch the lamp with the lamp cover in place.
Technical parameters:
Probe diameter: 75mm
Probe length: 50mm
Baffle plate diameter: 100mm
Baffle plate thickness: 10mm
Tags:IEC 60335 , SMT-7510
