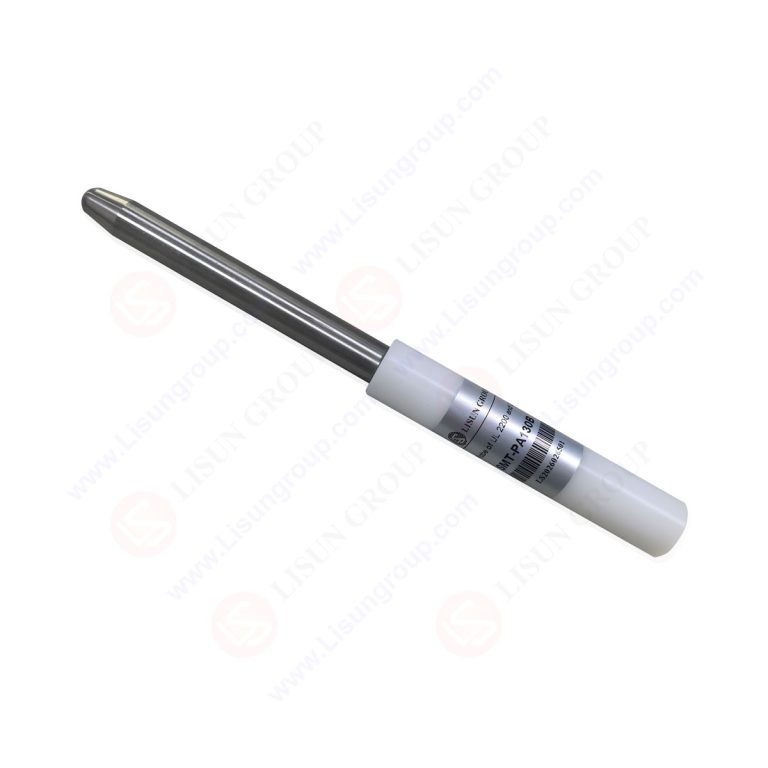

UL 2200 Figure 8.2 Probe for Moving Parts and Uninsulated Live Parts in Engine Generator Assemblies

UL 2200 Figure 8.2 Probe for Moving Parts and Uninsulated Live Parts in Engine Generator Assemblies

Technical parameters:
1, Straight Finger Diameter: 12.7mm (1/2 inch)
2, Straight Finger Total Length: 101.6mm (4 inch)
3, The Head Length: 14.3mm (9/16 inch)
4, The Head Radius: R 4.8mm (3/16 inch)
5, The Tail Diameter: 19.1mm (3/4 inch)

UL 2200 Figure 8.2 Probe for Moving Parts and Uninsulated Live Parts in Engine Generator Assemblies
