IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements

Scope

IEC 60335-1:2020 deals with the safety of electrical appliances for household and similar purposes, their rated voltage being not more than 250 V for single-phase appliances and 480 V for other appliances including direct current (DC) supplied appliances and battery-operated appliances.

LISUN supplies the fully test solutions for the following IEC 60335-1:2020, please see the below excel table

IEC 60335-1:2020 Clause and Subject	LISUN Model
Clause 8.1.1IEC 61032 Standard Articulated Test Probe with 10N Thrust	SMT-02T10

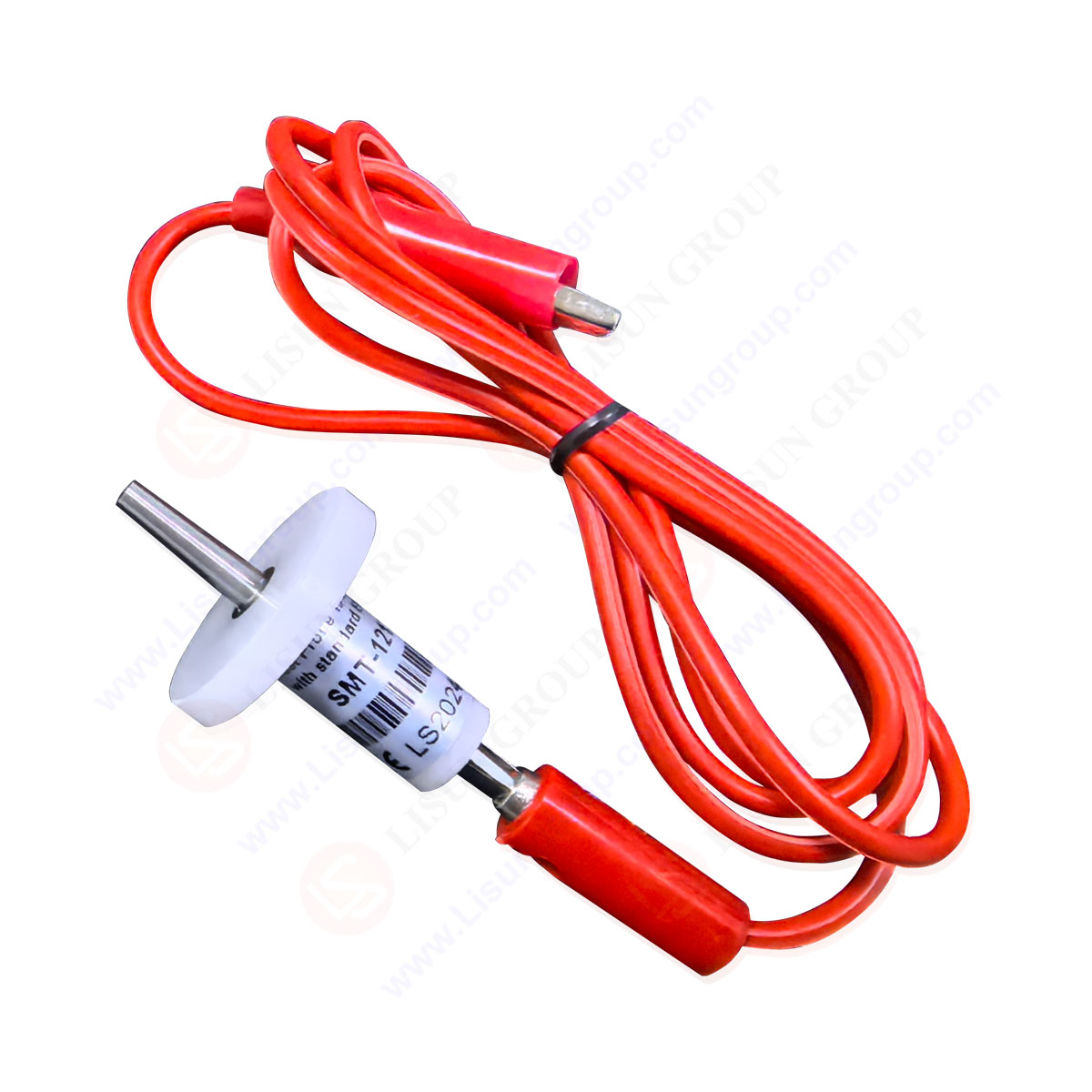

Clause 8.1.2 Test Probe 13 with Cable with standard EN 61032	SMT-1213C

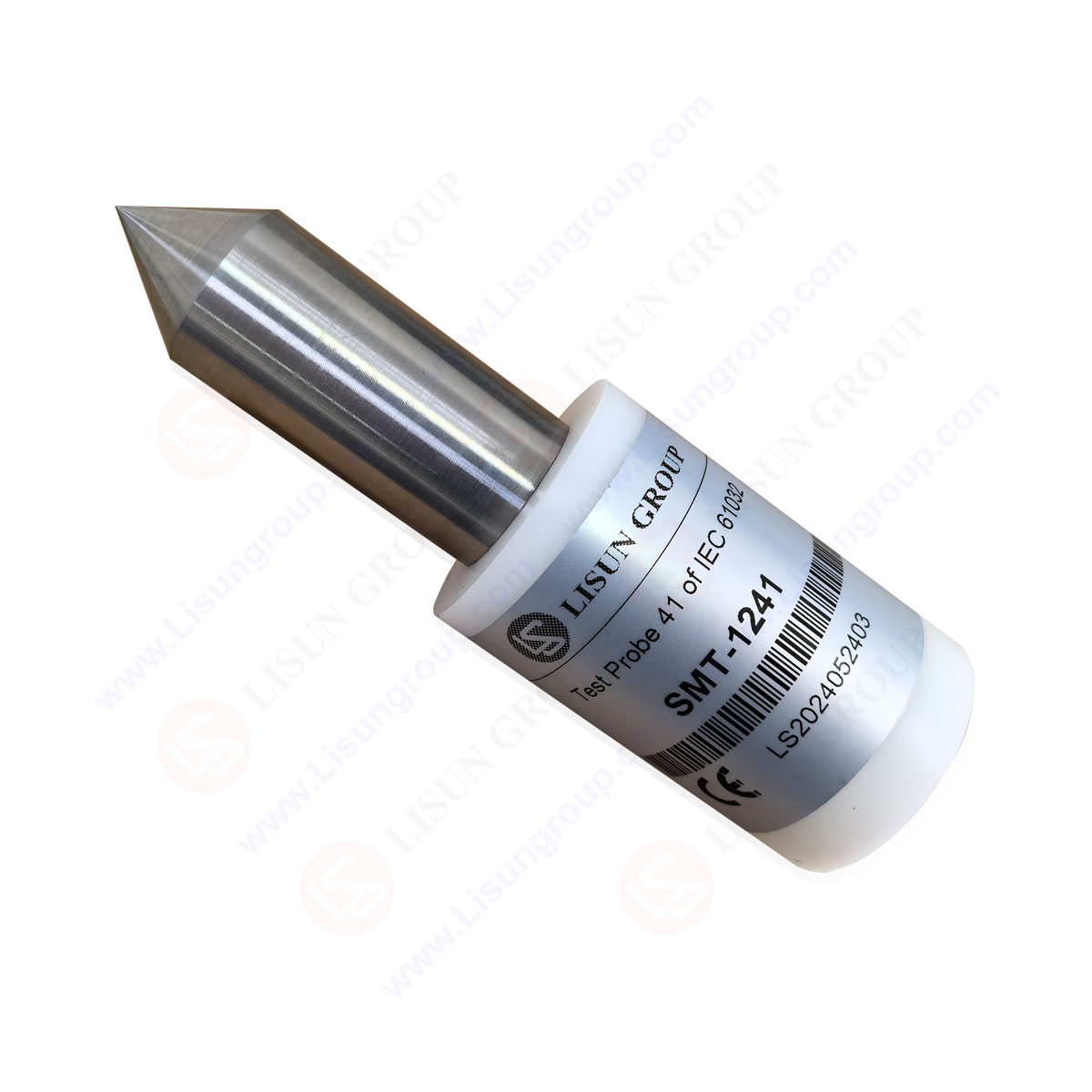

Clause 8.1.3 Test Probe 41 of IEC 61032 – Test Cone for Access Probes to Hazardous Hot or Glowing Parts	SMT-1241

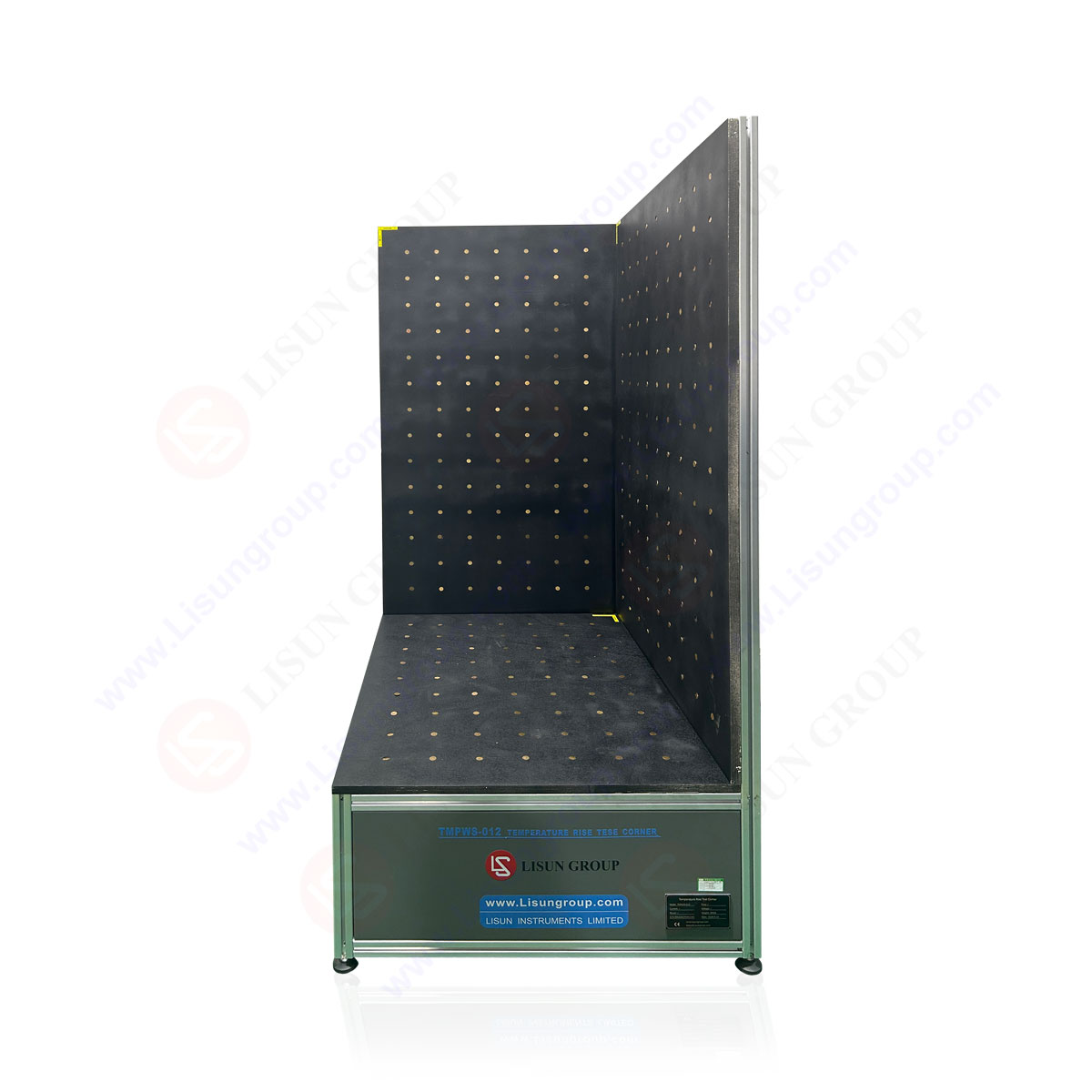

Clause 11 Heating	TMPWS-010

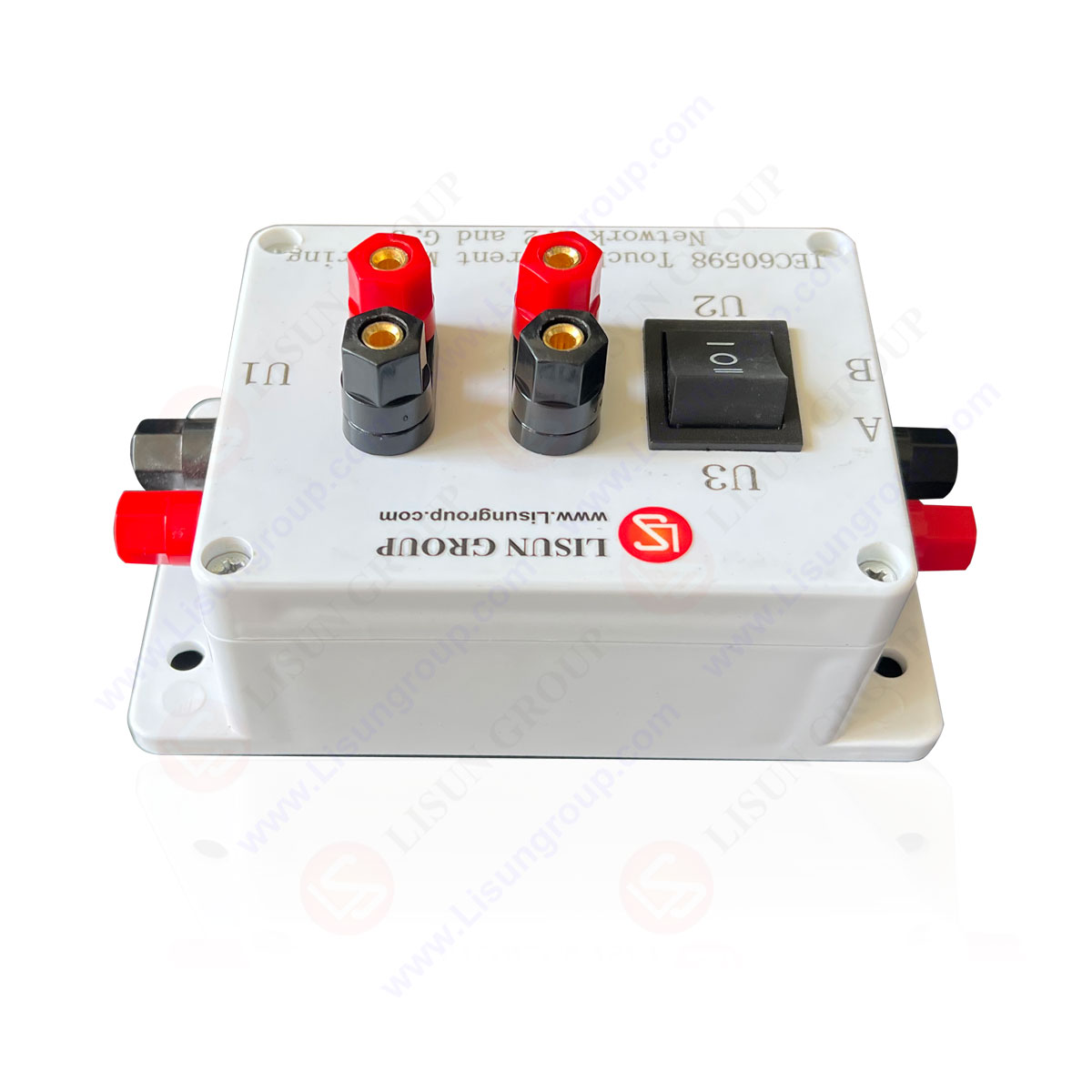

Clause 12 Figure1/2/3/4 Leakage current and electric strength at operating temperature	MNTC-G2G3
Clause 14 Transient overvoltages Table6	SUG335
Clause 15.1.1 IP Waterproof test	JL-12/ JL-34/ JL-56 /JL-7
Clause 16.2 Leakage current	WB2675D
Clause 16.3  electric strength	WB2671B
Clause 19.11.4.1 ESD Simulator Guns	ESD61000-2
Clause 19.11.4.3 EFT Immunity Measurement	EFT61000-4
Clause 19.11.4.4 Surge test	SG61000-5
Clause 19.11.4.5 RF Conducted Immunity Test System	RFCI61000-6-85W & AB-100W
Clause 19.11.4.6 Voltage Dips and Interruptions Generator	CSS61000-11

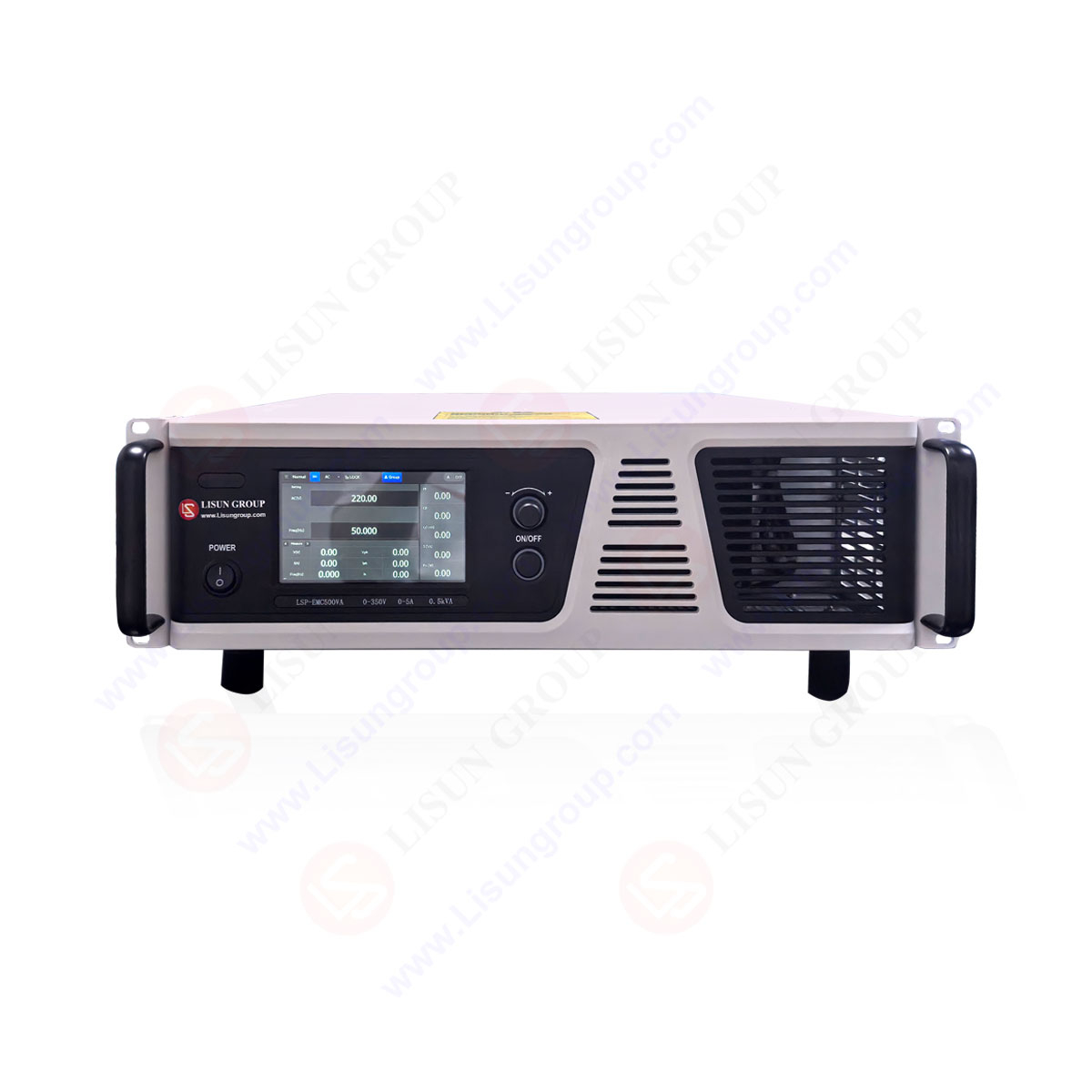

Clause 19.11.4.7 Programmable AC/DC Testing Power Supply System	LSP-EMC500VA

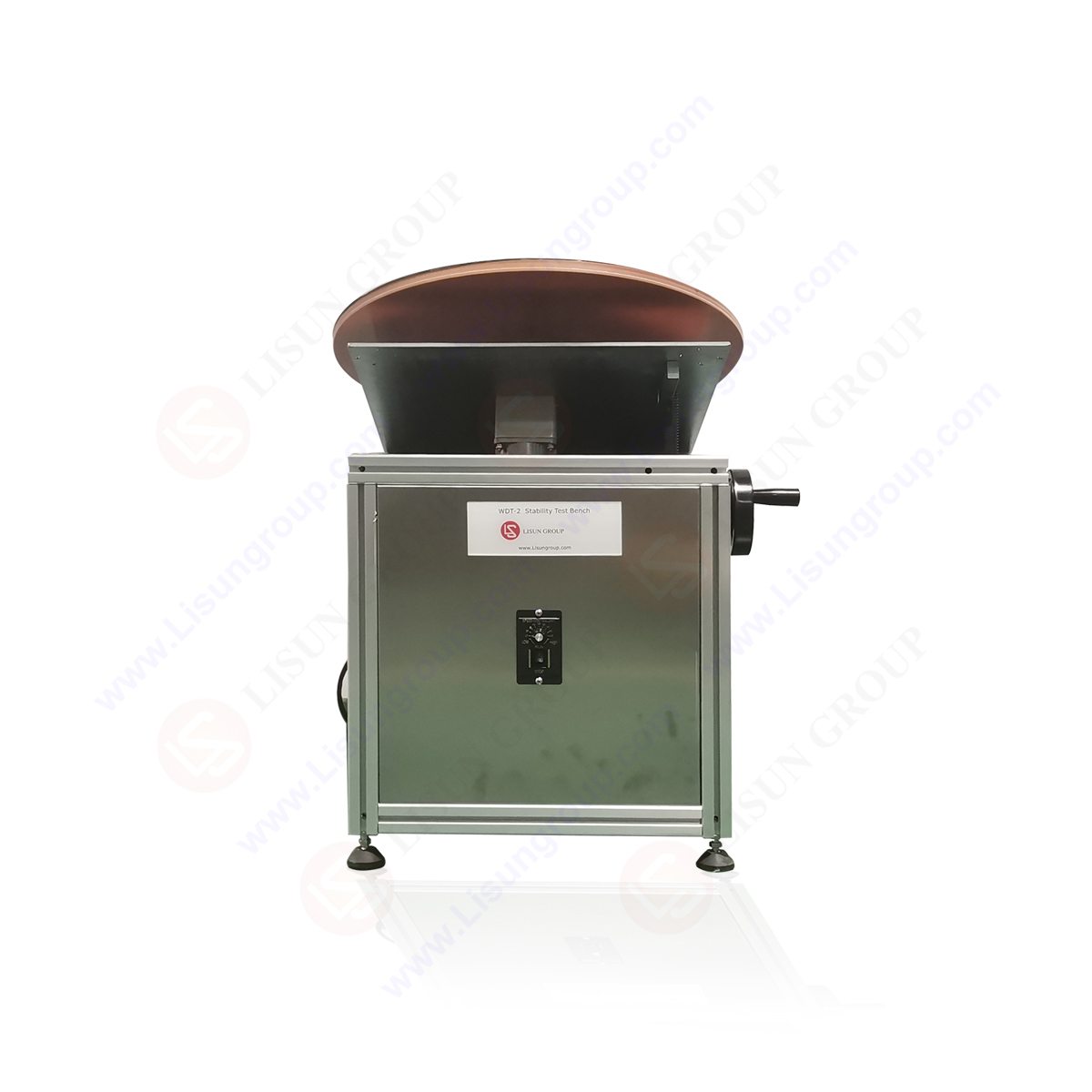

Clause 20.1 Stability	WDT-2
Clause 21.1 Mechanical strength	IK04
Clause 21.2 Figure7 Test Finger Nail for IEC 60335-1 Figure 7	SMT-335F7

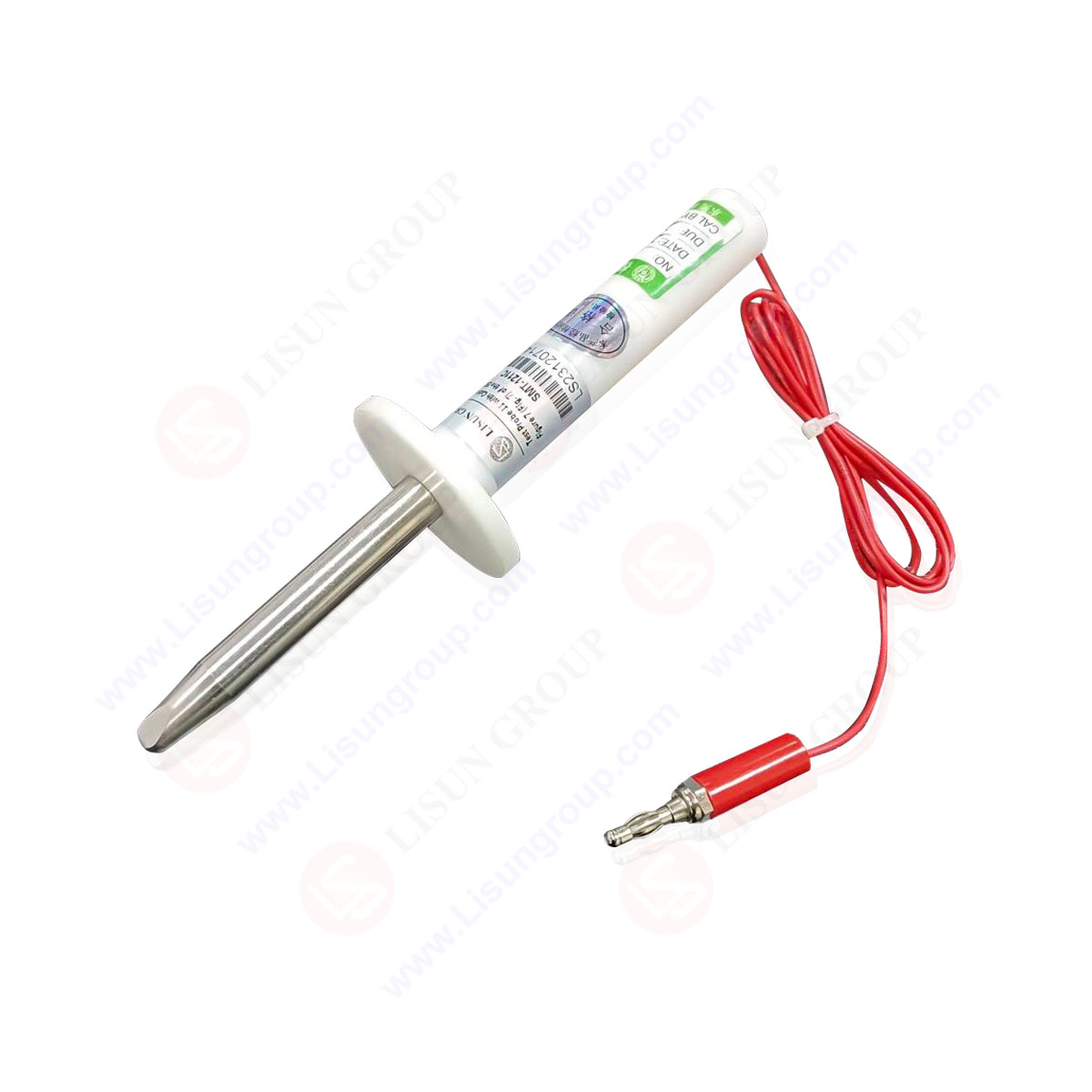

Clause 21.11 IEC 61032 Unjointed Test Finger Test Probe 11	SMT-1211C
Clause 21.18 Resistant to corrosion	YWX/Q-010

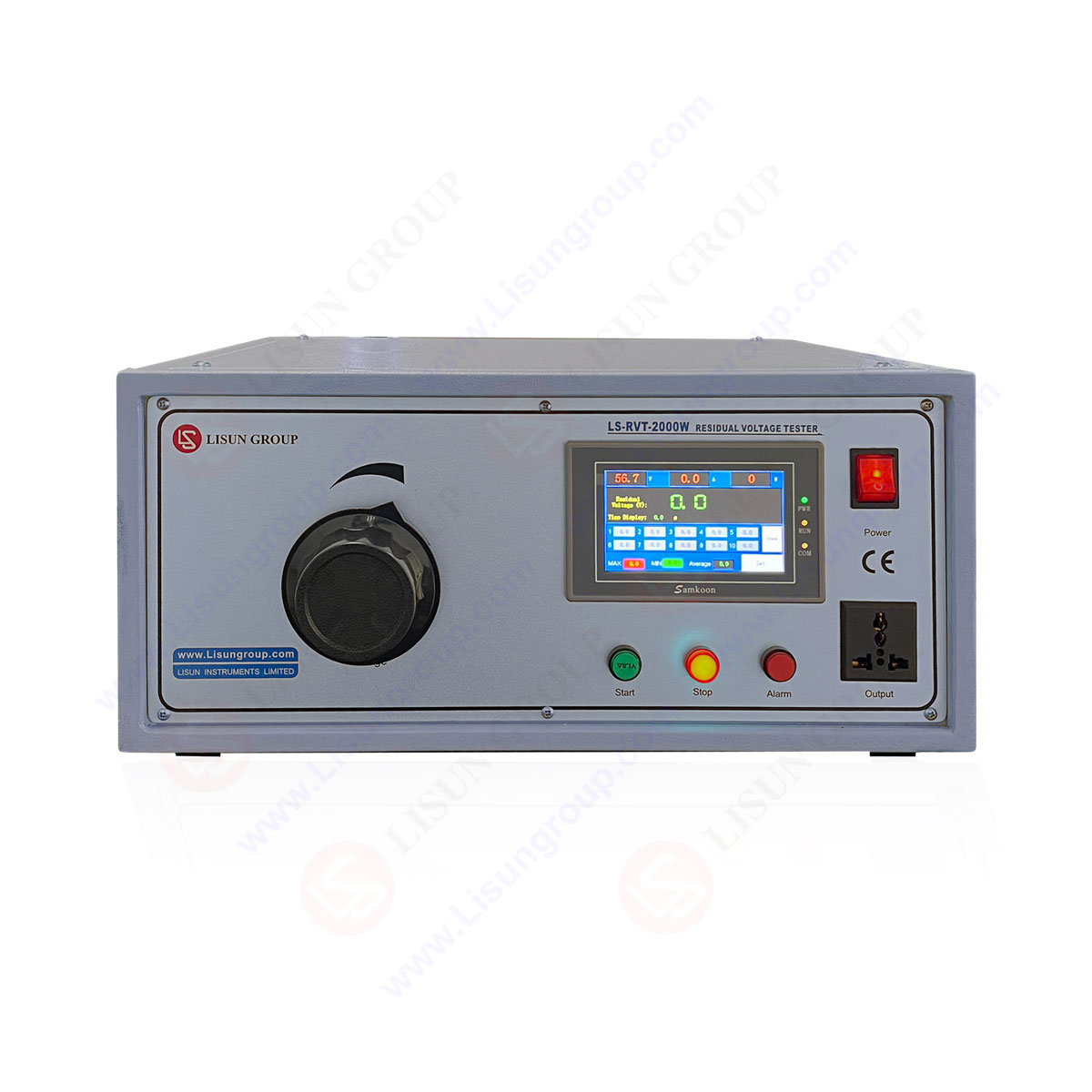

Clause 22.5 Peak Power Cutoff Device	LS-RVT-2000W
Clause 23.3 and 25.14 Figure 8 Flexing test apparatus,	SW-6
Clause 29.2 Annex N Proof tracking test apparatus	TTC-1
Clause 29.3.3 High temperature test	GW-225
Clause 30.1 Annex O Figure O.1 Ball pressure test	ZBP-T
Clause 30.2.1/2/3 Annex O Figure O.2 Glow wire test	ZRS-3H
Clause 30.2.4 Annex E Needle flame test	ZY-3
Clause 31 Salt Spray test	YWX/Q-010
Annex B Automatic Double-Arms Drop Test Machine	DT-60KG

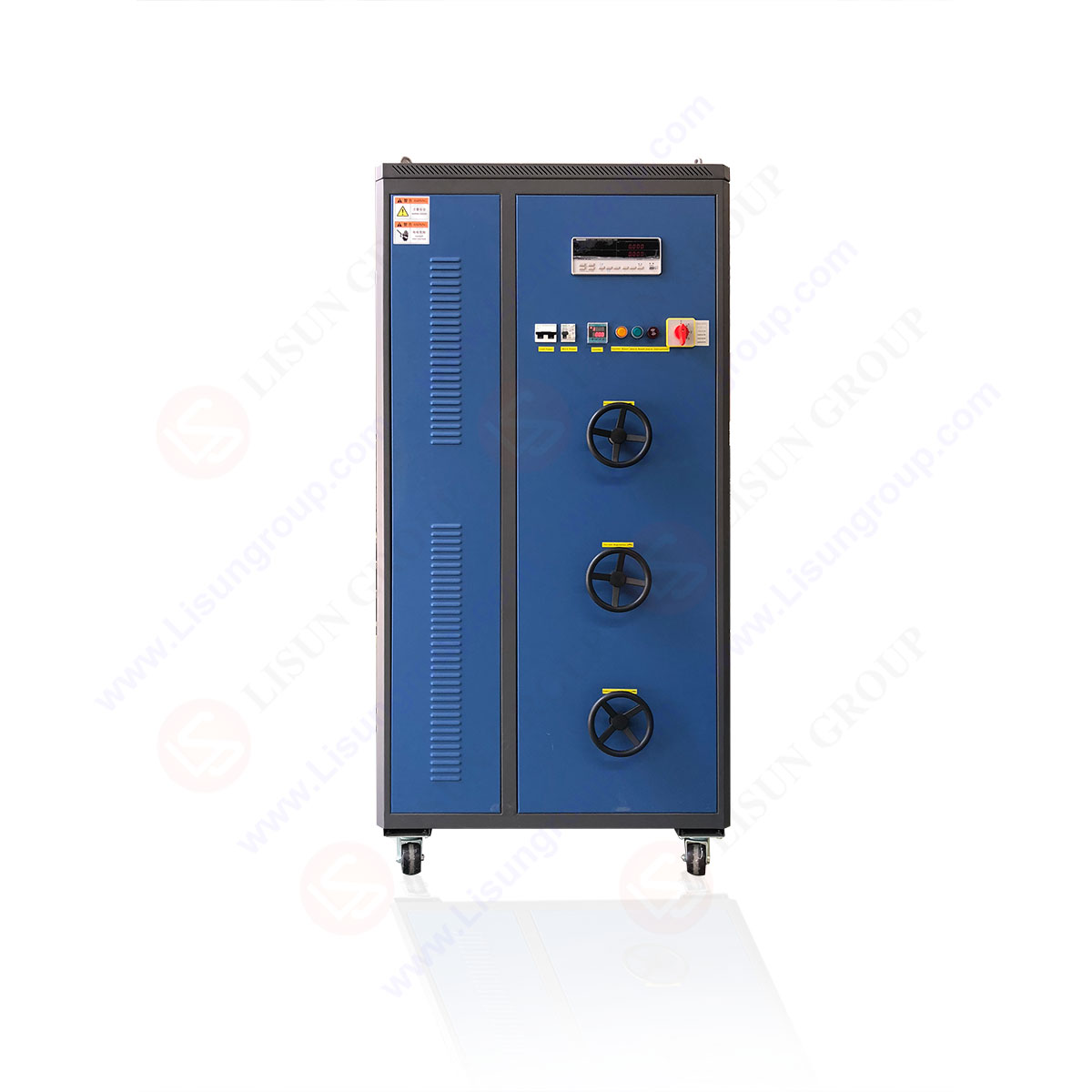

Annex H 3 Position Plug Socket Switch Life Tester	CZKS-3 & DFX-40
Annex L Creepage Distance Ruler	CK-1
