IEC 60838-1:2020 Miscellaneous lampholders – Part 1: General requirements and tests

IEC 60838-1:2020, titled “Miscellaneous Lampholders – Part 1: General Requirements and Tests,” specifies the general requirements and testing methods for various types of lampholders intended for building-in applications. These lampholders are designed for use with general-purpose light sources, projection lamps, floodlighting lamps, and street-lighting lamps, as detailed in Annex A of the standard.

The fifth edition of this standard introduces significant technical revisions compared to its predecessors. Notable updates include new or revised requirements for single and dual contact ignition voltages, specifications for steel and brass test caps, and the addition of Annex E, which outlines amended requirements and clauses necessitating product retesting. This consolidated version encompasses the original fifth edition (2016) along with its subsequent amendments from 2017 and 2020, ensuring comprehensive and up-to-date guidelines for the safe use of lamps in these lampholders.

LISUN supplies the fully test solutions for the following IEC 60838-1:2020, please see the below excel table:

IEC 60838-1:2020 Clause and Subject	LISUN MODEL

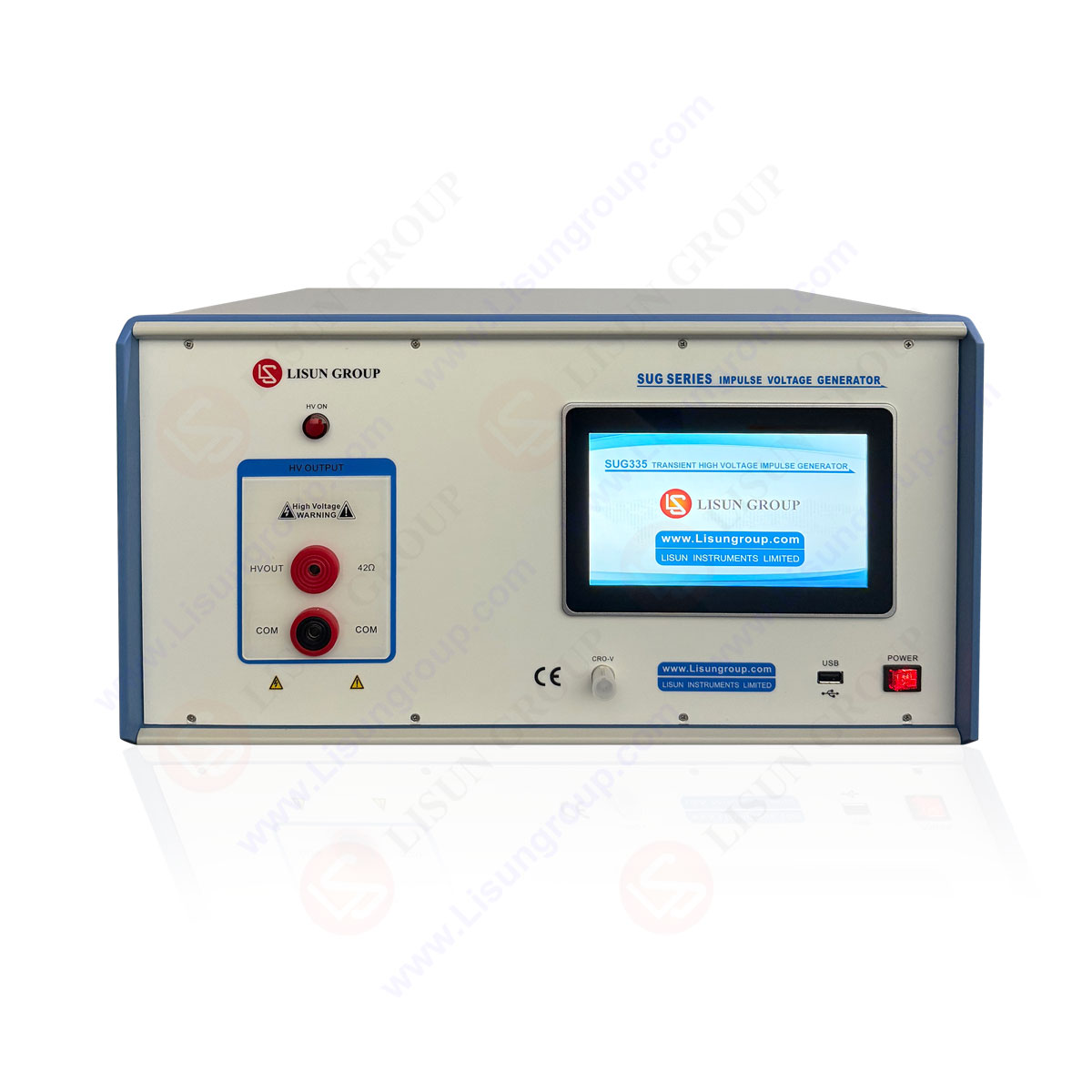

3.11 transient overvoltage	SUG335
6.2 According to their resistance to heat	GW-500
16 Endurance	GW-500

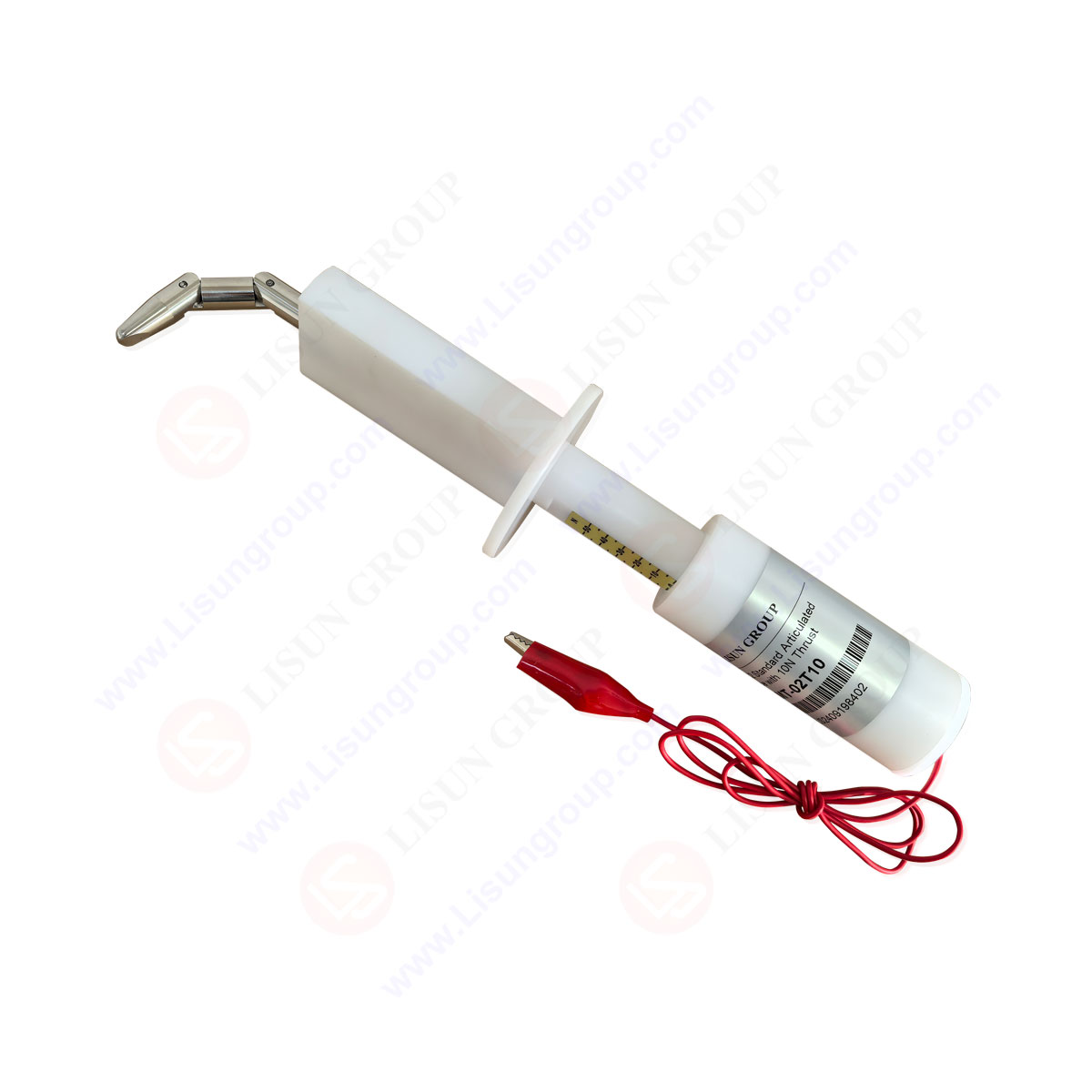

8.1 10N force	SMT-02T10

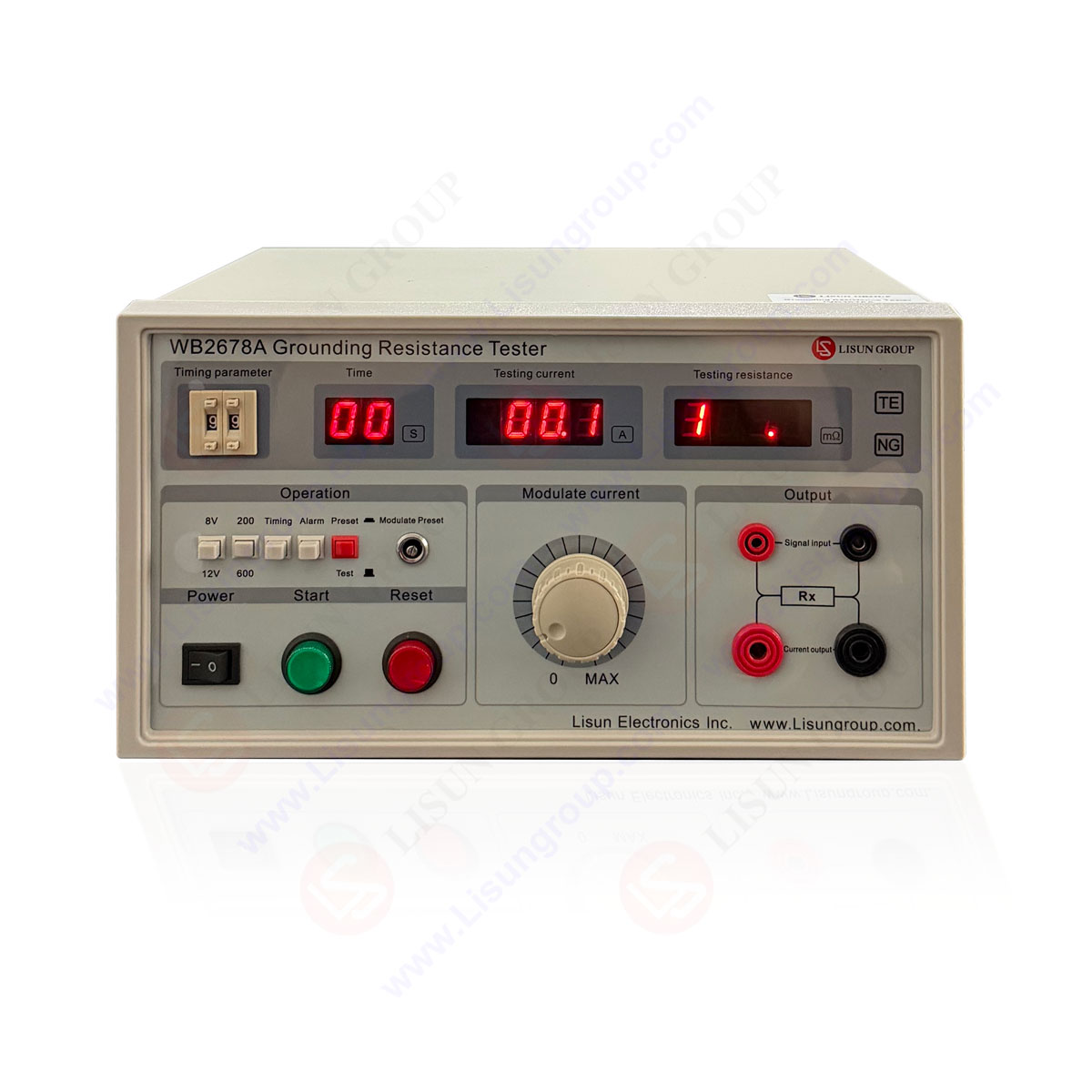

10 Provision for earthing	WB2678A
12.1 Holders shallbe moisture-proof	GDJS-015B

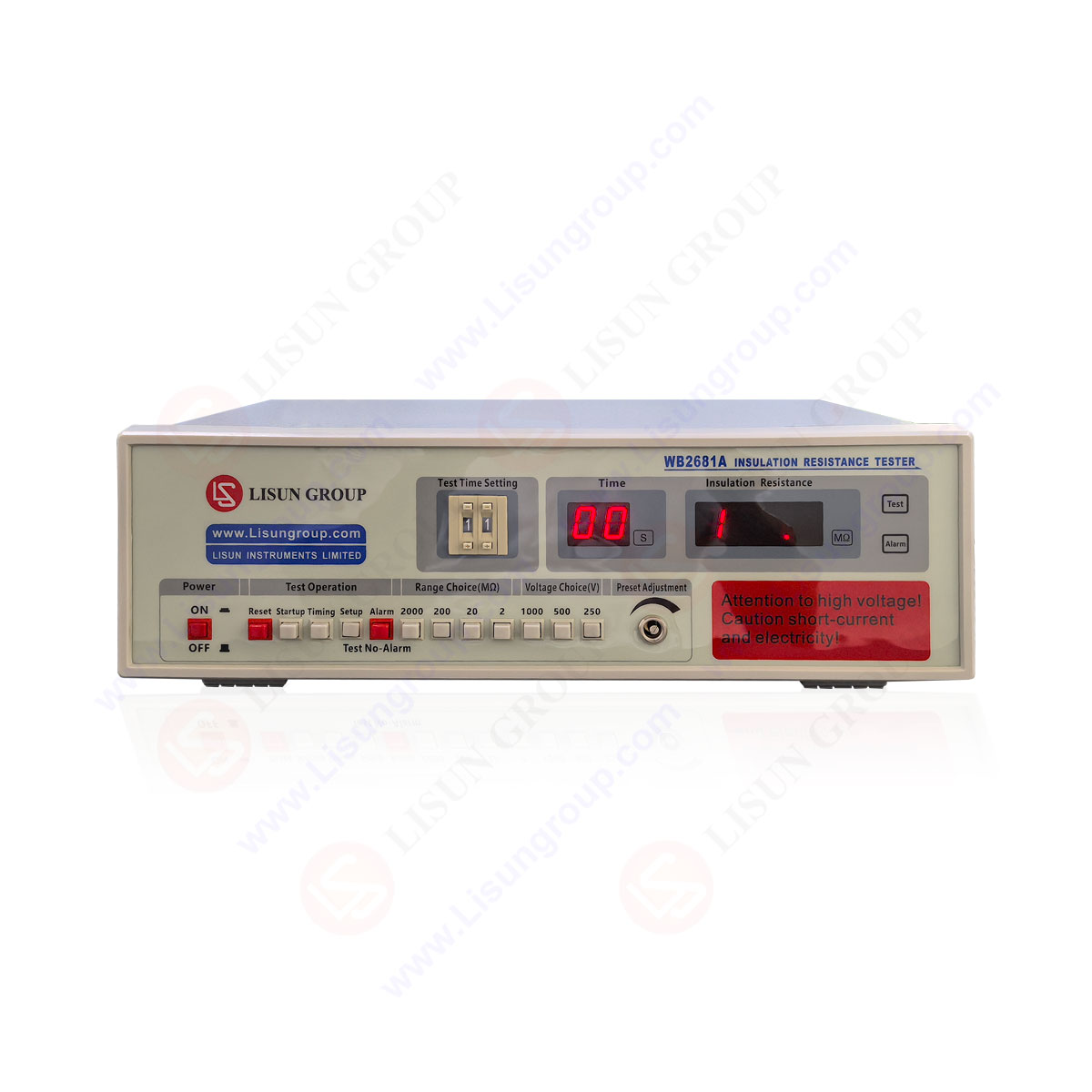

12.2 The insulation resistance	WB2681A

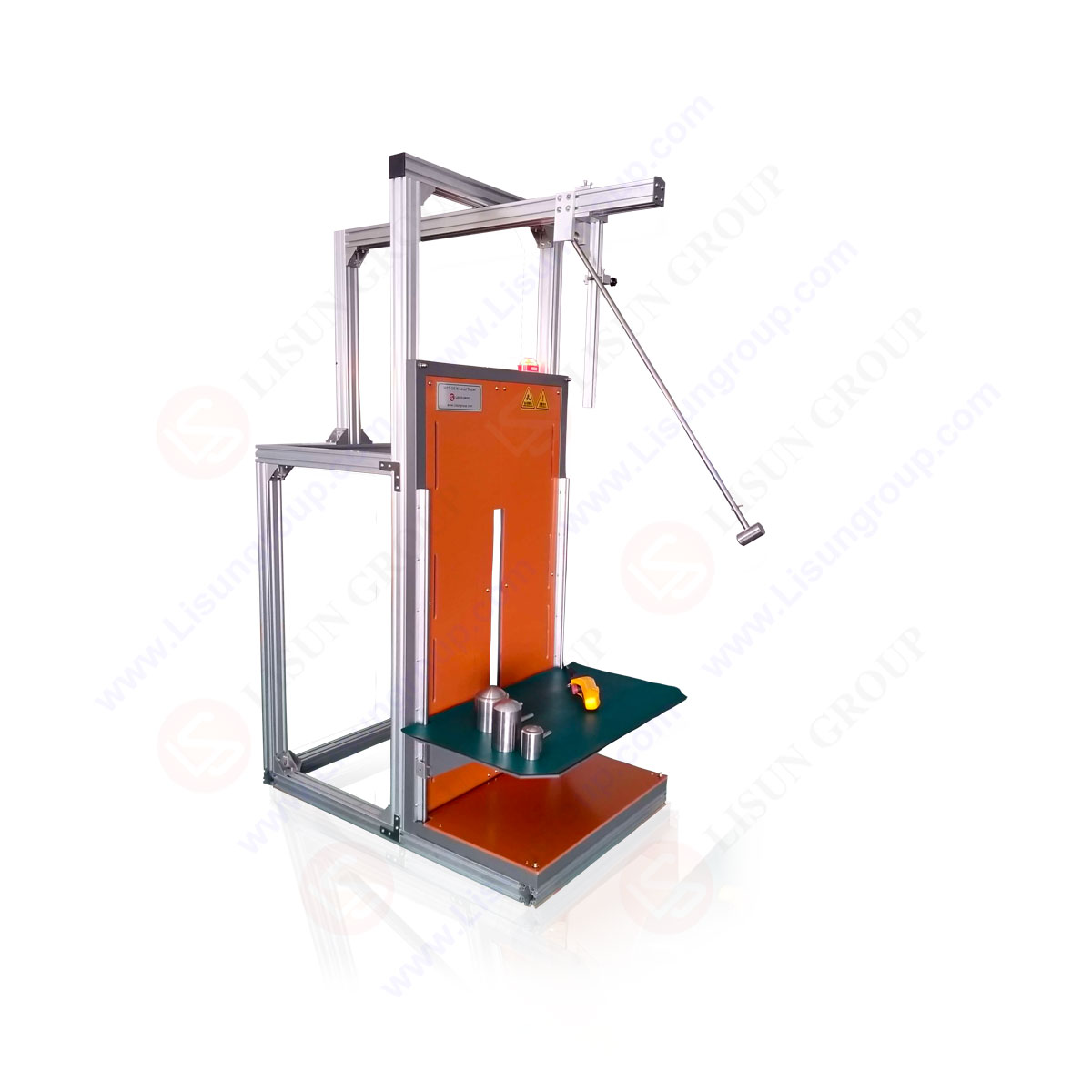

13 Mechanical strength-pendulum hammer test	IK07-10

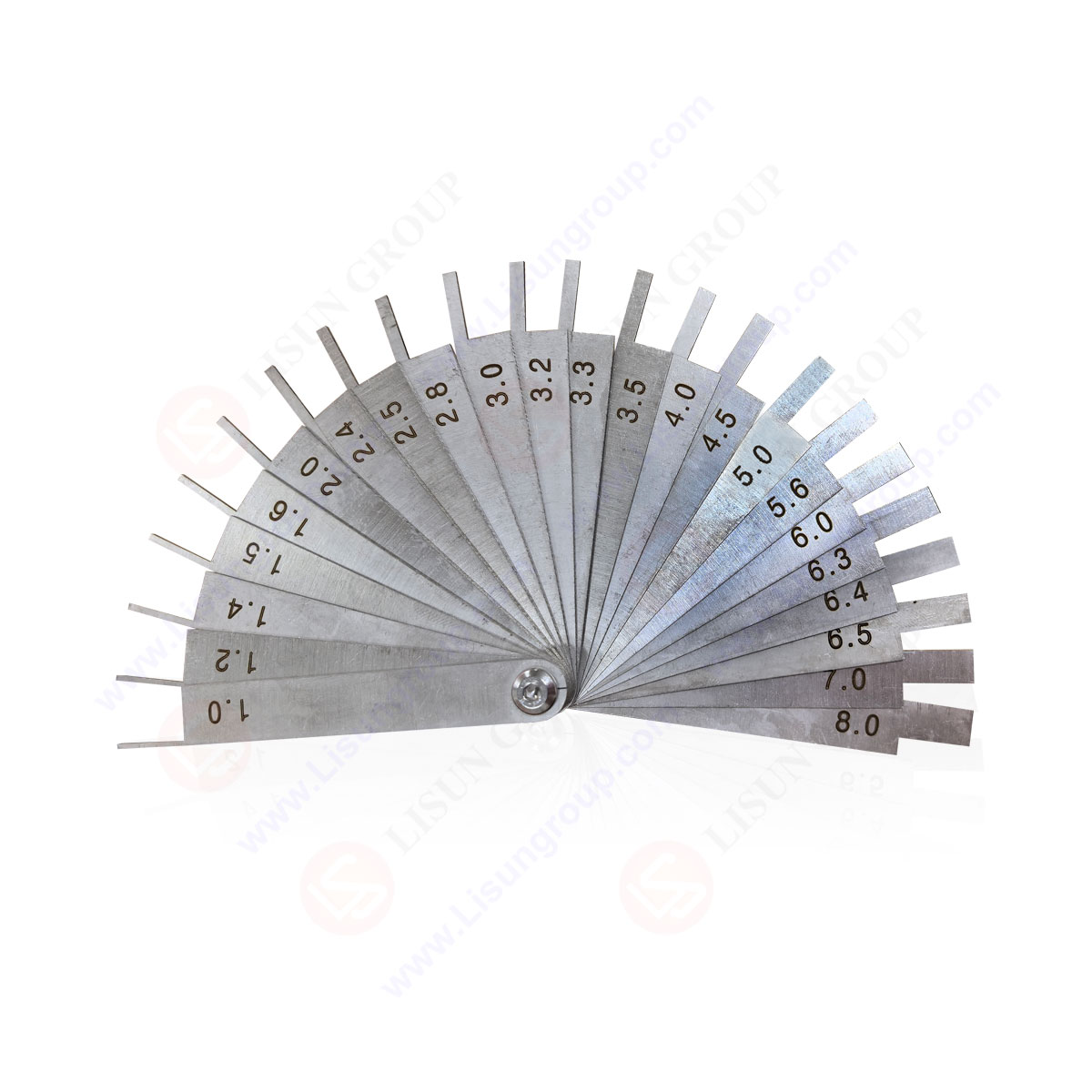

15 Creepage distances and clearances	CK-1
17 Resistance to heat and fire	GW-500
	ZBP-T
	ZRS-3H
	ZY-3

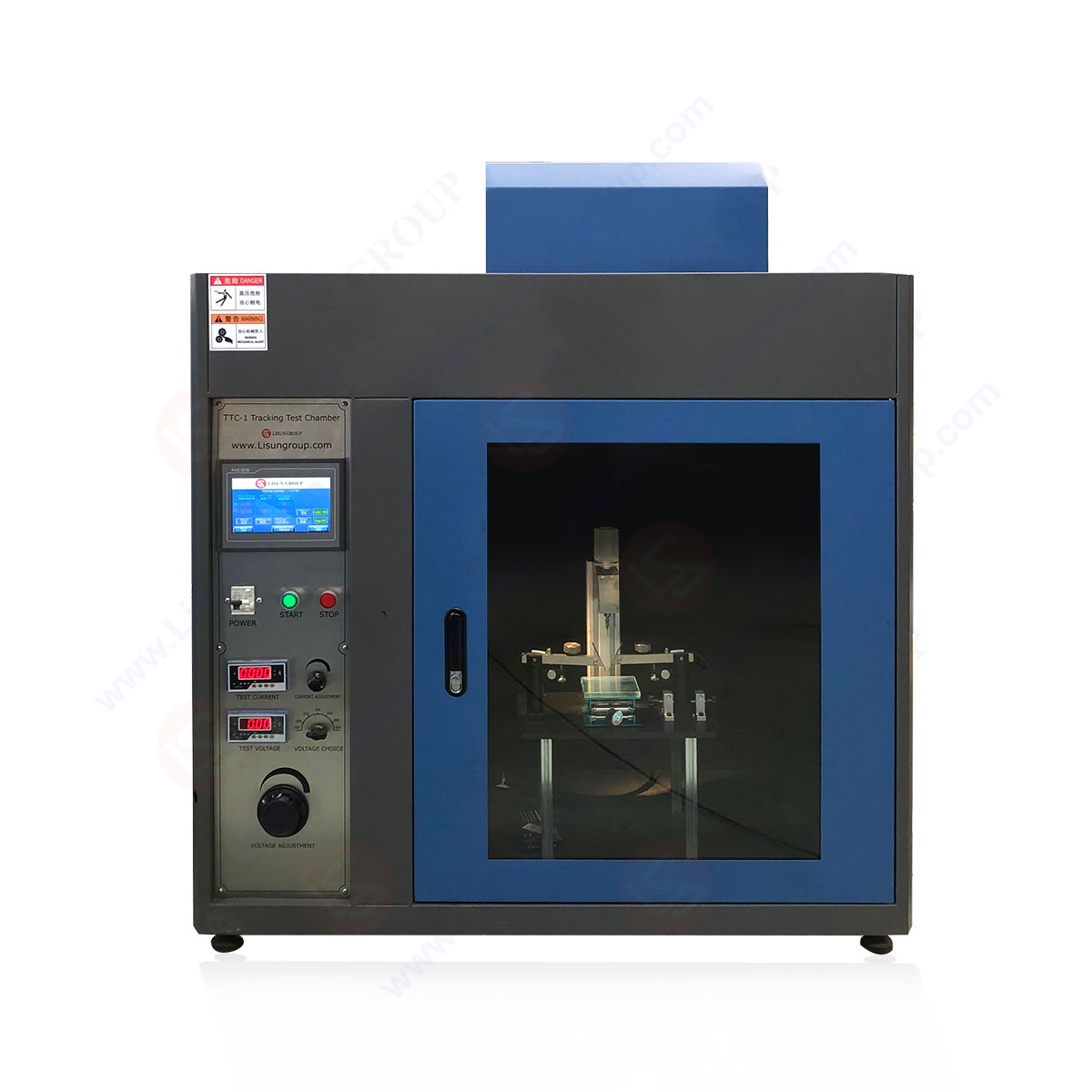

	TTC-1

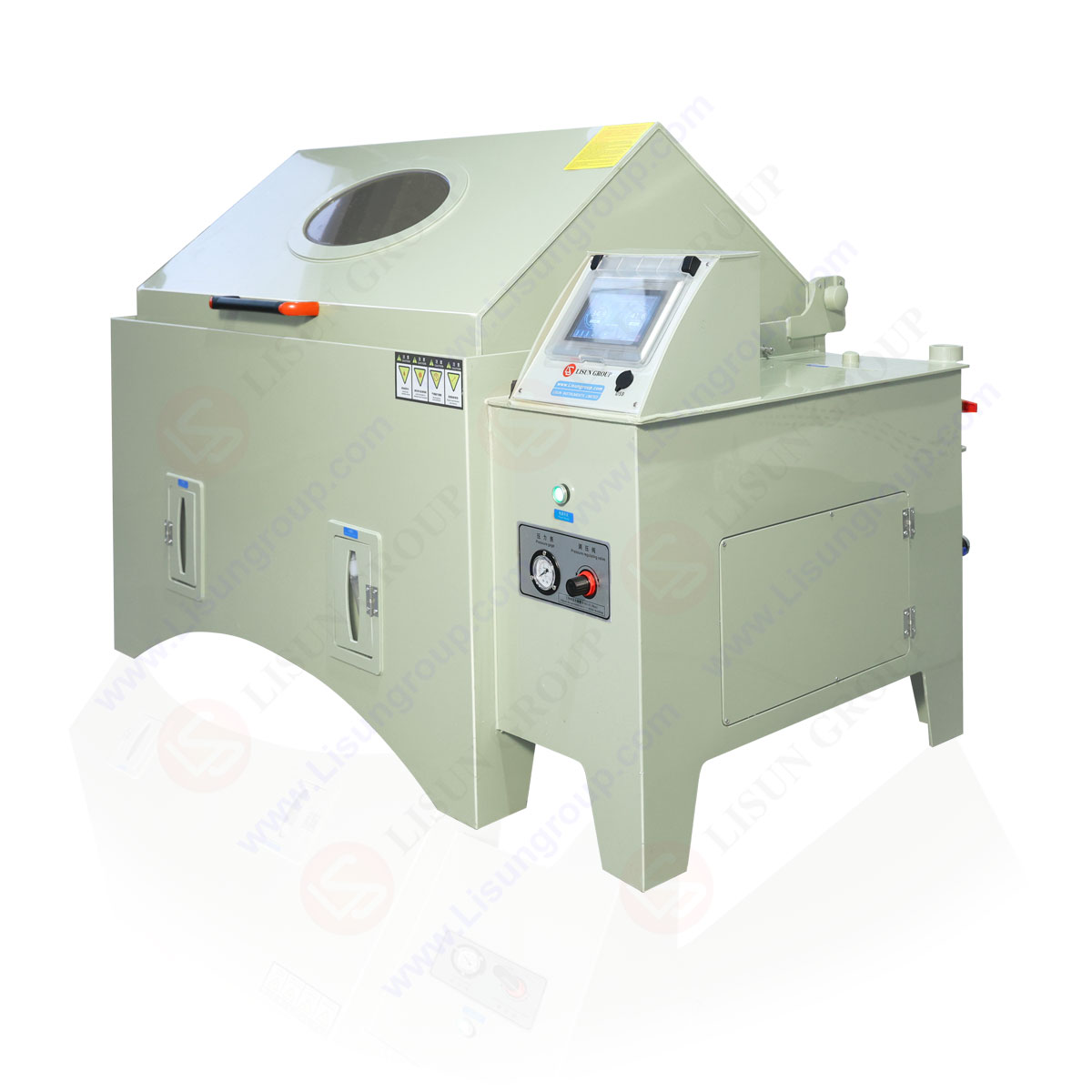

18.2 rust-protected	YWX/Q-010
Annex C corrosion test	YWX/Q-010
