IEC 60998-1:2002 Connecting devices for low-voltage circuits for household and similar purposes-Part 1:General requirements

This part of IEC 60998 applies to connecting devices as separate entities for the connection of two or more electrical copper conductors (complying with IEC 60228 or IEC 60344) rigid (solid or stranded) or flexible, having a cross-sectional area of 0,2 mm 2 up to and including 35 mm 2 and equivalent AWG conductors with a rated voltage not exceeding 1 000 Va.c. up to and including 1000 Hz and 1500 V d.c. where electrical energy is used for household and similar purposes.

NOTE Rated connecting capacities lower than 0,5 mm : are referred to IEC 60344 and rated connecting capacities equal to, or higher than, 0,5 mm: are referred to IEC 60228.

Connecting devices that require the use of special tools other than for twist-on connecting devices and insulation piercing connecting devices do not comply with this standard.

LISUN supplies the fully test solutions for the following IEC 60998-1:2002, please see the below excel table:

IEC 60998-1:2002 Connecting devices for low-voltage circuits for household and similar purposes-Part 1:General requirements	LISUN Model
Clause 9 Protection against electric shock	SMT-02T10

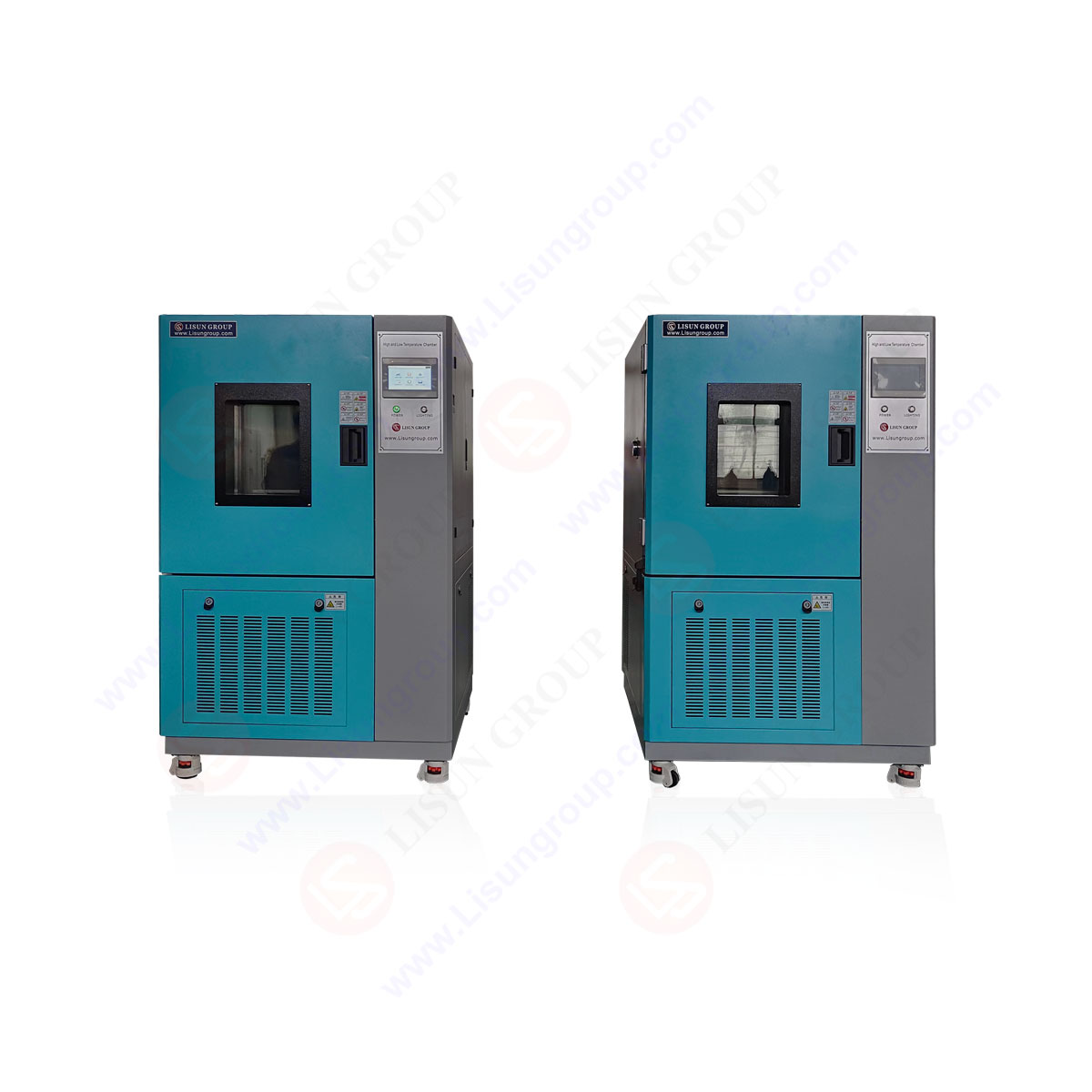

Clause 12 Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of water	GDJS-015B
	JL-X
Clause 13 Insulation resistance	WB2681A
Clause 14.2 Tested in the tumbling barrel	LS-DDT1-B
Clause 14.3 Pendular hammer	IK07-10
Clause 15 Temperature rise	WS-1
Clause 16 Resistance to heat	ZBP-T
Clause 16 Resistance to heat	GW-225
Clause 17 Clearances and creepage distances	CK-1
Clause 18 Resistance of insulating material to abnormal heat and fire	ZRS-3H
Clause 20.1 Immunity	RFCI61000-6
Clause 20.2 Emission	EMI-9KB
