Product No: LSG-6000

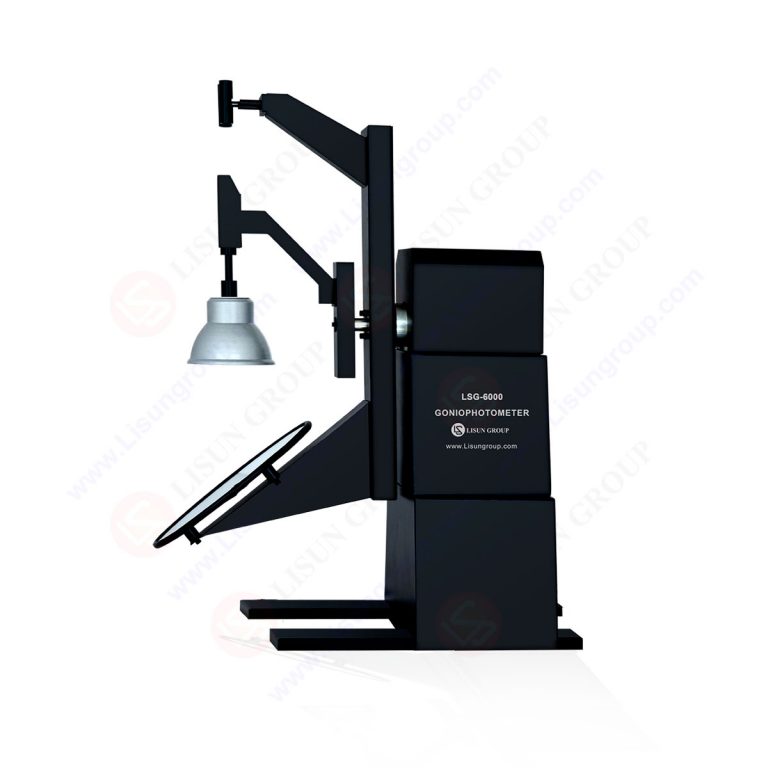

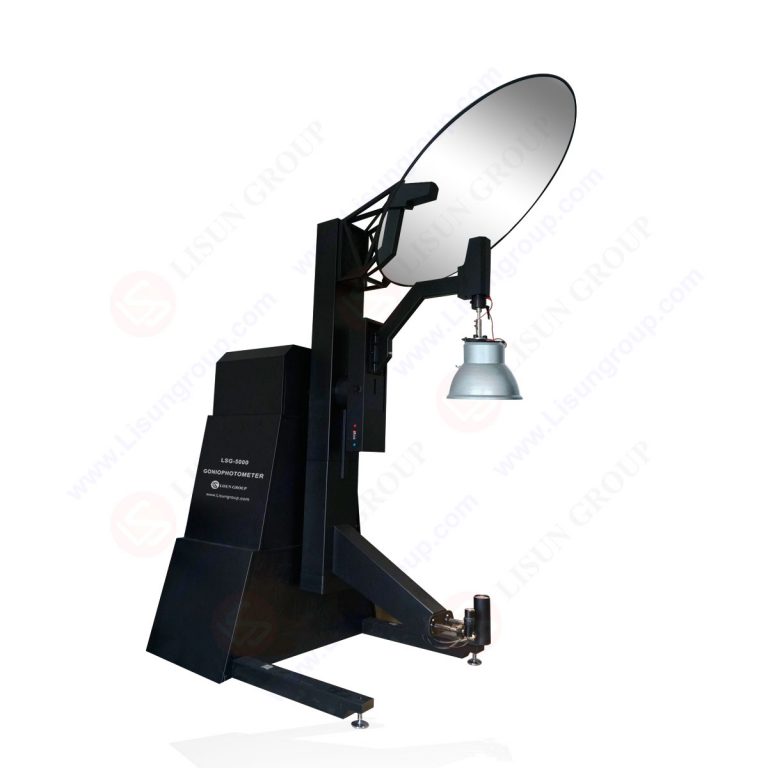

LSG-6000 Moving Detector Goniophotometer (Mirror Type C) manufactured by LISUN completely meets LM-79-19, COMMISSION DELEGATED REGULATION (EU) 2019/2015, CIE-121, CIE S025, SASO 2902, IS16106 and EN13032-1 clause 6.1.1.3 type 4 requirements. LSG-6000 is the latest upgraded product of LSG-5000 and LSG-3000 in compliance with the requirements of the LM-79-19 standard Clause 7.3.1. It’s an automatic light distribution intensity 3D curve testing system for measuring light. The darkroom can be designed according to the customer’s existing room size.
Standard:
LM-79-19 “Optical and Electrical Measurements of Solid State Lighting Products”
EN13032-1 “Light and lighting – Measurement and presentation of photometric data of lamps and luminaires – Part 1: Measurement and file format; German version EN 13032-1:2004+A1:2012”
CIE-121 ” The Photometry and Goniophotometry of Luminaires”
CIE S025 “Test Method for LED Lamps, LED Luminaires and LED Modules”
The manufacturer of LSG-6000 gonio photometer is LISUN. It can measure all types of lighting sources, LED, Plant Lighting or HID luminaires such as indoor and outdoor luminaires, roadway luminaires, street lamps, flood lights and other kinds of luminaires.
LSG-6000 Moving Detector Goniophotometric Working Principle
LSG-6000 Moving Detector Goniophotometric Dark Room
Measurement:
Luminous Intensity Data, Photometric Data, Luminous Intensity Distribution, Zonal Luminous Flux, Luminaries Efficiency, Luminance Distribution(Option), Coefficient Of Utilization, Luminance Limitation Curves Glare, Maximum Ratio of Distance to Height, Equal Illuminance Diagrams, Curves of Luminaires VS Lighting Area, Isocandela Diagrams, Efficient Luminescence Angle, EEI, UGR, etc.
Feature:
• The near field detector moves together with the big mirror in a line. The big mirror and the far field detector move synchronously.
• The burning position of the lumainares will be kept without moving at all, and the detector will always sense the light directly from the luminares.
• The rotary motor is from Japan MITSUBISHI MOTORS and the angle decode system is from Germany. They help the goniophotometer rotating smoothly with high accuracy. It is very stable when start and stop.
• The working principles are according to IESNA and CIE. The LSG-6000 completely meet the LM-79, LM-75, GB, EN and CIE121-1996 standards.
• Special collimation device with cross laser line help you installing the position of the luminaires under test conveniently and accurately.
Specification:
• The mirror and detector rotates around the luminaire under test with an angle of (γ) vertical axis ±180° (or 0-360°) and the luminaire rotates around itself with an angle of (C) horizontal axis ±180° (or 0-360° ).
• The accuracy of angle: 0.05°, Resolution of angle: 0.001°
• Accuracy of Goniophotometry detector: Constant temperature photo detector DIN5032-6/CIE pub1. No. 69 Class L
• LISUN goniophotometer software can export CIE, IES, LDT and other format files. These kinds of format files can be used via other illumination and luminaire design software such as DiaLux.

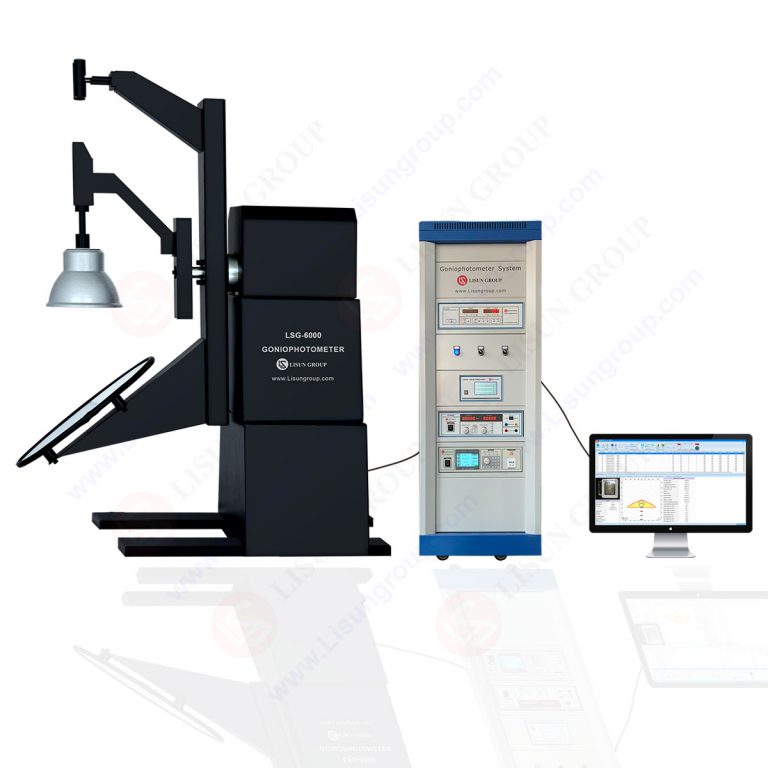

• Connect the goniophotometer to PC via USB cable. English version software can run on Win7, Win8, Win10, Win11
• LSG-6000 can be used together with a CCD Spectroradiometer to test spatial CCT Distribution and other Spectral color parameters. We call this system “Goniospectroradiometer (LSG-6000CCD)”. LSG-6000CCD Goniospectroradiometer = LSG-6000 Goniophotometer System + LPCE-2 Integrating sphere Spectroradiometer System. Please click to download the LSG-6000CCD Brochure
• The LSG-6000CCD software and hardware support the plant lighting PAR, PPF and PPFD spatial distribution test , and it can export IES/LDT files
| LISUN Model | Testing Lamp Size (Diameter E* Depth F) | Measure Power (W) | Minimum dark room height |
| LSG-6000/LSG-6000CCD (Standard Size) | max Φ1600*600mm, 50kg | max 600V/10A, AC/DC | 4.1m |
| LSG-6000L/LSG-6000LCCD (Super Big Size) | max Φ2000*900mm, 80kg | max 600V/10A, AC/DC | 5.2m |
| LSG-6000B/LSG-6000BCCD (Big Size) | max Φ1800*800mm, 60kg | max 600V/10A, AC/DC | 4.7m |
| LSG-6000S/LSG-6000SCCD (Small Size) | max Φ1200*500mm, 40kg | max 600V/10A, AC/DC | 3.0m |
The following Photo Detectors are optional to test UV light:
| LISUN Model | PHOTO-UVA-A | PHOTO-UVB-A | PHOTO-UVC-A |
| Wavelength Range | UVA: 320~400nm | UVB: 275~320nm | UVC: 200~275nm |
| UV Photometric Test Report Sample | UVA Photomectric Report | UVB Photometric Report | UVC Photometric Report |
| Photo Detector Accuracy | Class A (Made by LISUN) | ||
Goniophotometer adopts the measuring principle of fixed detector and rotating lamp method. The measuring lamp is installed on a two-dimensional rotating worktable, and the luminous center of the lamp coincides with the rotating center of the rotating worktable through the laser beam of the laser sight.
LISUN LSG-6000CCD LM-79 Moving Detector Goniospectroradiometer (Mirror Type C) – After-sales Frequently Asked Questions (FAQ).
LISUN LSG-6000CCD LM-79 Moving Detector Goniospectroradiometer (Mirror Type C) were in the market for more than 10 years, LISUN engineers service team already summary the most of the After Sales Questions and Answers in the above link. Please read it carefuly, you can solve the most of the problems by yourself if you have some questions while using the instruments. LISUN will be continue to update this pages and more FAQ can be found in this topic link.
We have the LSG-1800BCCD gonio photometer. LISUN is professional and the photometer is nice. LISUN engineer came and installed for us. Now everything is functional. We are glad to cooperate with LISUN.
